Sony HXCD70H SD/HD Camera Head Body - SKU#1543819

Picture does not represent the actual item
See what's in the box

See all Sony items

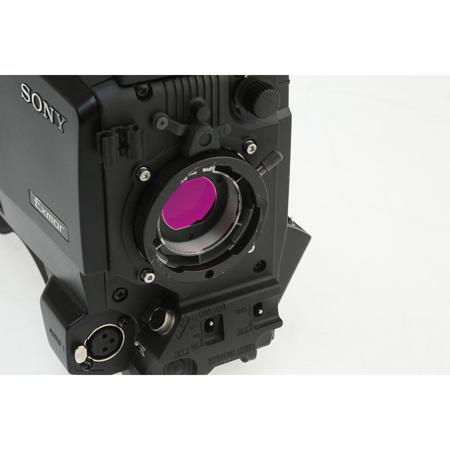

Used Sony HXCD70H SD/HD Camera Head Body with Three 2/3" Exmor CMOS Sensors, F1.4 Prism system

SKU: US1543819
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Sony HXCEFB70 Power Supply Extension Unit for HXC-D70 Fiber Configuration
undefined undefined: Picture 1 regular
Sony HZC-RCP5 PC-based Remote Control Panel Software for HXC-D70 Studio Camera and HXCU-D70
undefined undefined: Picture 1 regular
Sony CCFN25 25m (82.02') Optical Fiber Cable for HXC-D70 Multi-Transmission Studio Camera System
undefined undefined: Picture 1 regular
Sony SMPTE Connector Bracket for CA-FB70 Camera Adaptor
undefined undefined: Picture 1 regular
Sony Multi-core Camera Cable with Dual HD-SDI BNC Connector
undefined undefined: Picture 1 regular
Sony 50m (164.04') Optical Fiber Cable for HXC-D70 Multi-Transmission Studio Camera System
undefined undefined: Picture 1 regular
Sony CCFN200 200m (656.16m) Optical Fiber Cable for HXC-D70 Multi-Transmission Studio Camera System
undefined undefined: Picture 1 regular
Sony CCFN250 250m (820.21m) Optical Fiber Cable for HXC-D70 Multi-Transmission Studio Camera System
Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

Sony HXCD70H Specifications

  • Built-In Optical Filters

    ND filters:1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND

  • Dynamic Range

    600%

  • Effective Picture Elements

    1920 x 1080

  • Gain Selection

    -3,0,+3,+6,+9,+12db

  • Horizontal Resolution

    1,000 TV lines or more (in 1920 x 1080i mode) 920 TV lines (in SD mode)

  • Lens Mount

    Standard 2/3" B4 Bayonett mount

  • Optical System

    F1.4 Prism system

  • Pickup Device

    3-chip 2/3-inch type Exmor Full-HD CMOS

  • S/N Ratio

    HD 59db, SD 65db (Y=Typical)

  • Sensitivity

    F12 (typical) (1920 x 1080/59.94i mode), F13 (typical) (1920 x 1080/50i mode) (at 2000 lx, 3200 K, 89.9% reflectance)

  • Shutter Speed

    1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000

  • Application

    Studio/Field operation

  • Format

    1920 x 1080/59.94i, 50i 1280 x 720/59.94P, 50P

  • Imager

    2/3-inch type Exmor Full-HD CMOS

  • Input/Output Connectors: CCU

    26 MULTI PIN CONNECTER(CCZA/CCZAD cable connecter)

  • Input/Output Connectors: Intercom

    XLR 5-pin, female (x1)

  • Input/Output Connectors: Lens

    12-Pin(x1)

  • Input/Output Connectors: Prompter

    BNC (x1), 1 Vp-p, 75 ohm

  • Input/Output Connectors: Remote

    8-pin (x1)

  • Input/Output Connectors: Viewfinder

    Digital interface (x1) and DXF type analog interface (x1)

  • Inputs and Outputs: Audio In

    XLR 3-pin (x2, at front panel and rear panel)

  • Inputs and Outputs: DC In

    XLR 4-pin (x1)

  • Inputs and Outputs: DC Out

    4-pin (x1)

  • Inputs and Outputs: Earphone

    Mini-jack 3-pin (x1)

  • Inputs and Outputs: Genlock In

    BNC (x1), 1 Vp-p, 75 ohm

  • Inputs and Outputs: HD-SDI Out

    BNC (x1) (Dual Link)

  • Inputs and Outputs: Lens

    12-Pin(x1)

  • Inputs and Outputs: MIC In

    XLR 3-pin (x2, at front panel and rear panel)

  • Inputs and Outputs: Memory Stick

    Memory Stick DUO

  • Inputs and Outputs: Remote

    8-pin (x1)

  • Inputs and Outputs: SDI In

    BNC (x1)

  • Inputs and Outputs: Test Out

    BNC (x1)

  • Inputs and Outputs: Video Out

    Test out/SDI OUT

  • Operating Temperature

    -10 deg.C to +45 deg.C (14 deg.F to 113 deg.F)

  • Power Consumption

    Approx. 1.92 A/12v Main unit (camera) + LCD viewfinder + auto focus lens + microphone

  • Power Requirements

    12 V DC (10.5 V to 17.0 V)

  • Storage Temperature

    -20deg.C to +60deg.C (-4deg.F to 140deg.F)

  • Dimensions (W x H x D)

    144 x 314 x 223 mm / 5.75 x 12.37 x 8.87 inches

  • Weight

    Main body only: 3.4 kg (7 lb 7.9 oz)

Related Articles & Videos

Profs develop ""revolutionary"" imaging chip

Profs develop ""revolutionary"" imaging chip

The professors at the University Of Rochester in New York, say they've managed to shrink cameras to the size of a shirt button and run "for years" on a single battery. The team has desinged a prototype chip that can digitize at each pixel, and are working on a second technology that will compress...

Read more

About Sony HXCD70H SD/HD Camera Head Body - SKU#1543819

The Sony HXC-D70 is an HD color video camera equipped with three-chip 2/3-type CMOS image sensors yielding approximately 2.07 million effective pixels for full HD resolution (1920 x 1080). This advanced image sensor technology coupled with the latest digital processing circuitry enables the capture of very high-quality HD images, with a sensitivity of F12 (59.94i) / F13(50i) and an SN ratio of 56 dB (w/o Noise Suppression (NS)mode). Multi-core transmission technology comes standard with the HXC-D70 camera system. But now there are two different signal transmission options for system flexibility optical fiber and digital triax transmission technologies.

For the optical fiber transmission option, the HXC-D70 camera head is mechanically docked with the CA-FB70 camera adaptor that allows the camera to transmit the signals via optical fiber cable to the HXCU-FB70 camera control unit. For the digital triax transmission option, the HXC-D70 camera head is mechanically docked with the CA-TX70 camera adaptor that allows the camera to transmit the signals to the HXCU-100 camera control unit via triax cable. Note: HXC-D70H is camera head only

Sony HXCD70H SD/HD Camera Head Body - SKU#1543819 Features

  • Full HD Exmor CMOS sensors: The HXC-D70H features three 2/3-inch Exmor CMOS sensors to produce excellent HD pictures
  • Records variety of HD images: The HXC-D70H produces a variety of selectable progressive and interlace HD signal formats, including 1080/50i and 720/50P
  • SD down-converter: The HXC-D70H produces superb Standard Definition picture quality with its wide-band down-converter
  • Single multicore cable connection to CCU: The HXC-D70H requires one Sony standard multicore cable connection to operate with the HXCU-D70 or CCU-D50 CCU
  • Wide range of image control functions: The system camera is full of creative image control functions such as MultiMatrix, Skin Tone Detail, Low Key Saturation, KneeSaturation and Auto Lens Aberration Compensation(ALAC)

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SOHXCD70H70H HD Camera Head Body
  • Item Note: ND Select Knob is Cracked; Missing Lens Mount Cap
