Sony LMD9050 9" Multi-Format LCD Professional Video Monitor - SKU#1184821 Specifications

  • Application

    Monitor Wall or Field Use

  • Audio Amp

    0.5W

  • Demod from SDI Input

    Yes

  • Mono/Stereo

    Mono

  • Number of inputs

    1

  • Speakers in Chassis

    Yes

  • Contol Inputs

    8 pin RJ 45 Parallel

  • Digital Inputs

    HDSDI (SMPTE 292M)
    SDI (SMPTE 259M)

  • Back Light Technology

    CCFL

  • Image Aspect Ratio

    4:3 & 16:9

  • Native Aspect Ratio

    4:3

  • Number of Screens

    1

  • Resolution

    1024 x 768 pixels

  • Screen Size

    Approx. 8.4 inches
    Approx. 6 3/4 x 5 1/8 inches
    Approx. 170.5 x 127.9 mm

  • Technology

    LCD

  • Viewing Angle

    85�/85�/85�/85� (typical) (up/down/left/right contrast>10:1)

  • Display Underscan/Overscan

    Underscan, Overscan, Normal

  • Number of Option Slots

    0.0

  • On-Screen Display

    Yes

  • Rack Mount

    MB 525

  • Input Formats

    Analog RGB (BNC)
    Analog Y Pb Pr
    Analog Y R-Y B-Y
    Composite: 2 Included
    Digital Y R-Y B-Y
    S-Video

  • Multiple Language Display

    Yes

  • Operating Humidity

    30 to 85 % (No condensation)

  • Operating Temperature

    0 to 40 �C

  • Storage Temperature

    -20 to 60 �C

  • Battery power

    BP-GL65 or BP-IL75

  • DC Power

    12V @ 2.2 amps

  • Internal or External Power supply

    External

  • Power Consumption Monitor

    Approx. 24 W

  • Power Consumption AC Adapter

    Approx. 28 W

  • Power Requirements

    AC 100 to 240 V
    50/60 Hz
    0.82 A
    DC 12 V 2.2 A
    Rechargeable Battery Pack

  • Video Image Formats

    1080 23.98P
    1080 23.98Psf
    1080 24P
    1080 24Psf
    1080 60i
    480 60i
    576 50i
    720P 50 or 60Hz

  • Dimensions (W x H x D)

    8 5/8 x 9 1/8 x 8 3/8"
    Approx. 216 x 230 x 210 mm

  • Weight

    Approx. 8 lb 10 oz
    Approx. 3.9 kg

  • Warranty

    Sony 3 years limited warranty

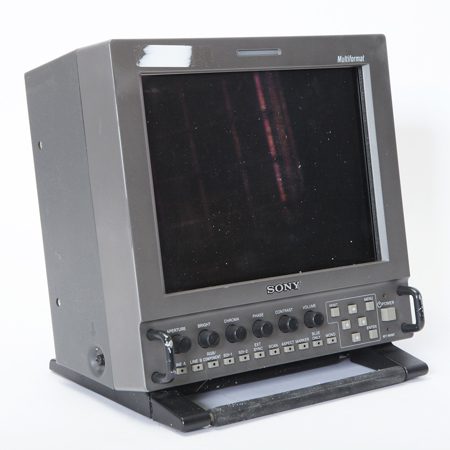

About Sony LMD9050 9" Multi-Format LCD Professional Video Monitor - SKU#1184821

The Sony LMD-9050 is a small sized LCD monitor with multi format support that allows usage in various applications such as shooting, OB van, ENG and editing systems. By employing a 1024x768 (XGA) LCD panel with high brightness, contrast and fast response, it offers a picture quality with excellent color reproduction even in outdoor or bright ambient light.

The panel offers a wide viewing angle of 170 degrees when viewed both up and down and side to side. A multi-layered AR coating reduces exterior light reflection and protects the panel from shock or scratches. The one piece design results in less weight and size, while maintaining the user-friendly interfaces.

LMD-9050 LCD monitor is perfect for less spacious editing suites, OB vans, control rooms and other applications. The panel has extensive built-in input/outputs for many formats including HD-SDI. The LMD9050 comes equipped with a 3 mode power system - AC100V, DC12V, Battery Adaptor. Standard inputs include composite, Y/C, Analog HD/SD Component, RGB and auto-detecting HD-SDI / SDI.

Sony LMD9050 9" Multi-Format LCD Professional Video Monitor - SKU#1184821 Features

  • 1024x768 (XGA) Panel Resolution
  • 4:3 / 16:9 Aspect Ration Selection
  • Monoaural Speaker
  • Adjustable Color Temperature (High/ Low/ User)
  • Parallel Remote
  • Scan Mode (0%, 5%)
  • AR coated protection panel
  • Five Gamma Selections
  • Mono/ Blue only mode
  • Center marker, 4:3/ 16:9 aspect marker, safety marker, 4:3 zoom
  • Three Color Tally
  • Seven language on-screen menu
  • 3 mode power system - AC100V, DC12V, Battery Adaptor
  • Mutiple Input Options including Y/C, Composite, Analog RGB/Component, HDSDI
  • HDSDI Inputs have auto-detect between HDSDI & SDI Signals

What's in the box:

  • Power Supply
  • Power Cable
  • Item Note: The monitor stand has a broken front section but still works
