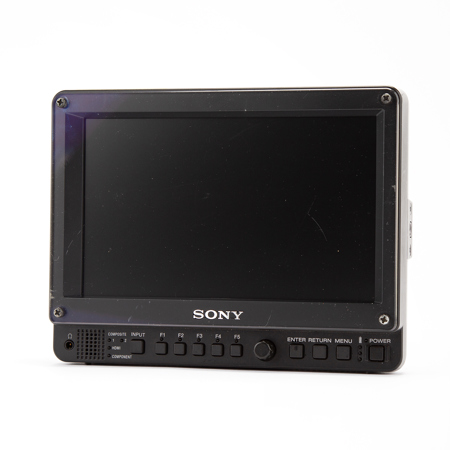

Used Sony LPM-770BP 7" Active Matrix Portable LCD Monitor

SKU: US1960017 MFR: LPM770BP
$149.00
Earn VIP Reward Points

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony LPM-770BP Specifications

  • Type

    TFT Active Matrix

  • Signal Format

    575/50i(PAL), 480/60i(NTSC), 576/50p, 480/60p, 640x480/60p, 1080/24PsF, 1080/25PsF, 1080/24p, 1080/25p, 1080/30p, 1080/50i, 1080/60i, 720/50p, 720/60p, 1080/50p, 1080/60p

  • Resolution

    800 x 480 pixels

  • Effective picture size (W x H)

    6 x 3.62" / 15.24 x 9.20cm
    Diagonal: 7" / 17.78cm

  • Aspect

    15:9

  • Viewing angle

    80 deg. / 80 deg. (left/right contrast > 10:1)

  • Input: Composite

    BNC (x2), 1.0 Vp-p +/-3dB sync negative

  • Input: Component

    BNC (x1), 0.7 Vp-p +/-3dB (75% chrominance normal color bar signal)

  • Input: HDMI

    HDMI Type A (x1)

  • Input: Audio

    Stereo mini jack (x1)

  • Input: DC in

    DC 12 V (output impedance 0.05 ohms or less)

  • Output: Composite

    BNC (x2) loop-through,with 75 ohms automatic termination

  • Output: Speaker (Built-in)

    0.5 W (mono)

  • Output: Headphones

    Stereo mini jack (x1)

  • Power requirement

    DC 7.2 V Sony NP-F970/F770 battery
    DC 12 V XLR-type 4P plug

  • Power consumption

    Maximum approx. 15 W

  • Operating temperature

    32deg.F to 104deg.F (0 deg. C to 40 deg.C)
    Recommended: 68 deg. F to 86 deg. F (20 deg. C to 30 deg. C)

  • Operating humidity

    30% to 85% (no condensation)

  • Storage and transport temperature

    -4 deg. F to +140 deg. F (-20 deg. C to +60 deg. C)

  • Storage and transport humidity

    0% to 90%

  • Operating,storage and transport pressure

    700 hPa to 1060 hPa

  • Dimensions (W x H x D)

    7.37 x 5.75 x 2.62" / 18.73 x 14.60 x 6.66cm

  • Weight

    Main unit only: 1.87lbs / 0.84kg

About Sony LPM-770BP 7" Active Matrix Portable LCD Monitor

The Sony LPM-770BP's professional feature set includes a color peaking function that lets you instantly confirm which elements are in focus. It's an indispensable aid when precise focusing is critical and you can select peaking sensitivity to match the scene being shot. There's also a Video Level Marker that colors specific video brightness levels in images to help you achieve optimum exposure and skin tone during iris adjustment. Another powerful focusing tool is its "Native Scan Mode". In this mode, the image expands for a 1:1 pixel mapping that displays the image exactly as it is being captured by the camera's image sensor.

Dual Composite Inputs for Dual Camera Support
HDMI, component and composite inputs assure compatibility with digital and analog formats. Two composite inputs are provided as standard, enabling you to view and adjust the color and brightness of images from two cameras using a single monitor.

Fanless, Compact, Light and Easy to Operate
In consideration of video shooting environments, the LPM-770BP features a silent, fanless design. It's also compact and light, weighing just 1.87lbs (0.84kg) (main unit only), making it ideal for portable applications. Four 1/4 inch (6.35mm) tripod/angle sockets, one each on the top/bottom and right/left, provide extra setup flexibility.

Warranty Information

This used item has a FREE 180-day warranty. See details.
