Sony PMW-1000 3RU Half Rack HD422 SxS Memory Recorder/Player - SKU#1545083

Picture does not represent the actual item
See what's in the box

See all Sony items

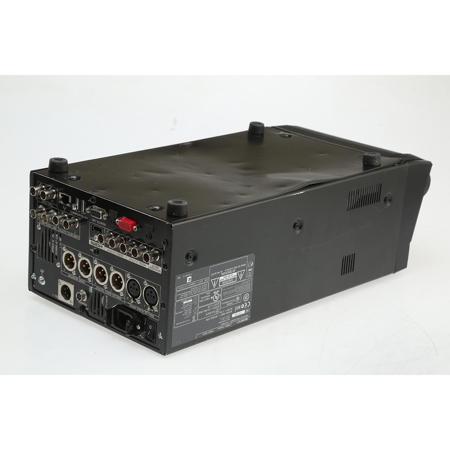

Used Sony PMW-1000 3RU Half Rack HD422 SxS Memory Recorder/Player

SKU: US1545083

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Sony PMW-1000 Specifications

  • Recording/Playback

    Video:
    MPEG HD422 (CBR, 50 Mb/s)
    MPEG HD: HQ mode (VBR, maximum bit rate: 35 Mb/s), SP mode (CBR, 25 Mb/s), LP mode (VBR, maximum bit rate: 18 Mb/s), MPEG IMX (CBR, 50/40/30 Mb/s)
    DVCAM: CBR, 25 Mb/s, XAVC: CBR, 100 Mb/s
    Audio:
    MPEG HD422: 8-channel/24-bit/48 kHz
    MPEG HD: 4-channel /16-bit /48 kHz
    MPEG IMX: 8-channel/16-bit/48 kHz or 4-channel/24-bit/48 kHz
    DVCAM: 4-channel/16-bit/48 kHz, XAVC: 8-channel/24-bit/48 kHz

  • Recording/Playback: Proxy Video

    MPEG-4

  • Recording/Playback: Proxy Audio

    A-law (8-channel/8-bit/8 kHz)

  • Recording/Playback Time1

    XAVC
    exFAT/MXF (100 Mb/s CBR)
    Approximately 120 min (128 GB)
    Approximately 60 min (64 GB)
    Approximately 30 min (32 GB)
    Approximately 15 min (16 GB)
    MPEG HD422:
    UDF/MXF (50 Mb/s CBR)
    Approximately 240 min (128 GB)
    Approximately 120 min (64 GB)
    Approximately 60 min (32 GB)
    Approximately 30 min (16 GB)

  • Recording/Playback Time2

    MPEG HD:
    UDF/MXF (35 Mb/s VBR)
    Approximately 360 min (128 GB)
    Approximately 180 min (64 GB)
    Approximately 90 min (32 GB)
    Approximately 45 min (16 GB) FAT/MP4 (35 Mb/s VBR)
    Approximately 400 min (128 GB)
    Approximately 200 min (64 GB)
    Approximately 100 min (32 GB)
    Approximately 50 min (16 GB), FAT/MP4 (25 Mb/s CBR)
    Approximately 560 min (128 GB)
    Approximately 280 min (64 GB)
    Approximately 140 min (32 GB)
    Approximately 70 min (16 GB)

  • Recording/Playback Time3

    DVCAM:
    UDF/MXF (25 Mb/s CBR) Approximately 440 min (128 GB)
    Approximately 220 min (64 GB)
    Approximately 110 min (32 GB)
    Approximately 55 min (16 GB)
    FAT/AVI (25 Mb/s CBR)
    Approximately 520 min (128 GB)
    Approximately 260 min (64 GB)
    Approximately 130 min (32GB)
    Approximately 65 min (16 GB)

  • Playback Time

    MPEG IMX
    UDF/MXF (50 Mb/s Intra) Approximately 240 min (128 GB), Approximately 120 min (64 GB), Approximately 60 min (32 GB), Approximately 30 min (16 GB)

  • Search Speed Range

    Shuttle Mode: -20 times to +20 times normal speed (max +/-50 by Remote)
    Variable Mode: -2 times to +2 times normal speed
    Jog Mode: -1 time to +1 time normal speed (-2 to +2 by Remote)
    Fast Forward/Reverse: -35/+35 times normal speed (max +/-50 by Remote)

  • Media Type

    SxS Memory Card Drive, ExpressCard/34 (x2)

  • Reference Input

    BNC (x2) (including loop-through), HD Tri-level sync (0.6 Vp-p/75 Ohms/negative) or SD blackburst/composite sync (0.286 Vp-p/75 Ohms/negative)

  • HD-SDI Input

    BNC (x1) (HD/SD switchable)
    HD-SDI: SMPTE 292M (w/embedded audio)
    SD-SDI: SMPTE 259M (w/embedded audio)

  • Analog Audio Input

    XLR-type 3-pin (female) (x2) (channel selectable), +4/0/-3/-6 dBu (selectable), 10 kOhms, balanced

  • Digital Audio Input (AES/EBU)1

    Timecode Input: BNC (x1), SMPTE timecode, 0.5 to 18 Vp-p / 3.3 kOhms / unbalanced
    Analog Composite Output:
    BNC (x2),
    1: 1.0 Vp-p/75 Ohms/negative, SMPTE 170M
    2: 1.0 Vp-p/75 Ohms/negative, SMPTE 170M, character On/Off
    HD-SDI Output
    BNC (x2),
    1: SMPTE 292M (w/embedded audio)
    2: SMPTE 292M (w/embedded audio), character on/off

  • Digital Audio Input (AES/EBU)2

    SD-SDI Output
    BNC (x2),
    1: SMPTE 259M (w/embedded audio)
    2: SMPTE 259M (w/embedded audio), character on/off
    HDMI Monitor:
    TYPE A 19-pin (x1)
    Video : 1080i, 720P, 480i, 480P, 576i, 576P
    Audio : 2-ch/16-bit/48 kHz
    Analog Audio Output
    XLR-type 3-pin (male) (x2) (channel selectable),
    +4/0/-3/-6 dBu (selectable), 600 Ohms, Lo-z, balanced
    Analog Audio Monitor: XLR-type 3-pin (male) (x2), +4 dBu, 600 Ohms, Lo-Z, balanced

  • Digital Audio Output

    Headphone Output: JM-60 Stereo phone jack (x1), -13 dBu, 8 Ohms, unbalanced
    Timecode Output: BNC (x1), SMPTE timecode, 1.0 Vp-p/75 Ohms/unbalanced

  • Ethernet

    1 x RJ-45
    1000BASE-T: IEEE 802.3ab
    100BASE-TX: IEEE 802.3u
    10BASE-T: IEEE 802.3

  • Remote Input

    D-sub 9-pin (female) (x1), RS-422A

  • USB

    1 x USB 3.0

  • Maintenance

    Rear: (x2) for Maintenance, USB Keyboard, USB Mouse

  • DC Input

    XLR-type 4-pin (male) (x1)

  • DC Output

    4-pin (female) (x1), 12 VDC, 7.5 W

  • Battery Compatibility

    V-Mount

  • AC Input

    AC Input (x1), 100 to 240 V, 50/60 Hz

  • Sampling Frequency

    Y: 74.25 MHz, Pb/Pr: 37.125MHz

  • Sampling Frequency

    Y: 74.25 MHz, Pb/Pr: 37.125MHz

  • Video Level

    -Infinity to +3 dB

  • Chroma Levels

    -Infinity to +3 dB

  • Set Up/Black Level

    -30 IRE to +30 IRE/-210 mV to +210 mV

  • Chroma Phase

    -30 to +30 deg.

  • Phase

    System Sync Phase: -15 to +15 s
    System SC Phase: 0 to 400 ns

  • Quantization

    24-bit

  • Frequency Response

    20 Hz to 20 kHz +0.5/-1.0 dB (0 dB at 1 kHz)

  • Dynamic Range

    > 90 dB

  • Distortion

    < 0.05% (at 1 kHz)

  • Headroom

    20/18/16/12/9 dB (selectable)

  • Built-In Display

    4.3" (109.2 mm) 3-type color LCD monitor

  • Built-in Speaker

    1 x Monaural

  • Power Requirements

    100 to 240 VAC, 50/60 Hz, 12 VDC

  • Power Consumption

    AC: 80 W, 12 VDC, 5.7 A

  • Operating Temperature

    42 to 104 deg. F (5 to 40 deg. C)

  • Storage Temperature

    -4 to +140 deg. F (-20 to +60 deg. C)

  • Humidity

    20 to 90% (relative humidity)

  • Dimensions (W x H x D)

    Excluding protrusions: 8.3 x 5.25 x 16.5" (210.82 x 133.35 x 419.1mm)

  • Weight

    11.1lbs(4.98kg)

About Sony PMW-1000 3RU Half Rack HD422 SxS Memory Recorder/Player - SKU#1545083

The Sony PMW-1000 is a 3 RU high, half rack SXS Memory card recorder/player. It can be set to record/playback 50 Mbps MPEG HD422 MXF files on UDF formatted cards created by the PMW-100/160/200 and PMW-500 memory camcorders. The PMW-1000 provides legacy reading and playback of FAT formatted SXS cards which are compatible with the XDCAM Ex format created by the PMW-Ex1/R, PMW-F3 or PMW-320/350. For SD applications you can make DVCAM recordings as MXF files.

Sony PMW-1000 3RU Half Rack HD422 SxS Memory Recorder/Player - SKU#1545083 Features

  • Two ExpressCard SxS Memory Card Slots
  • 50 Mbps MPEG HD422 recording as MXF files (UDF mode only)
  • SD Recording and Playback (DVCAM) standard
  • Record up to 4 hours 50 Mbps MPEG HD422 in camcorder using two 64 GB SxS-1A memory cards (must be purchased separately)
  • UDF (Professional Disc compatible) file format mode recording and playback on SxS memory cards to have similar high res files and workflows with existing Professional Disc and XDCAM HD422 memory products (i.e. PMW-100/160/200/500 and PMW-50)
  • 16:9, 3.5 inch color LCD
  • SDI input for recording baseband signals to SxS cards
  • SDI output, HDMI output and Composite output
  • SuperSpeed USB 3.0 interface for connecting hard drive to PMW-1000 to copy files from cards to the hard drive
  • FAT (XDCAM EX compatible) file format mode playback from SxS memory cards to have similar high res files and workflows with existing XDCAM EX camcorders which record MPEG-2 in the .MP4 file wrapper

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sony PMW-1000 SxS Memory Recorder/Player
  • Item Note: Unit Does Not Power On; Front Panel Falls Off; Body heavily dented and damaged; May Have Additional Issues. Comestic Condition is G. SOLD AS-IS; FOR PARTS ONLY;FINAL SALE
