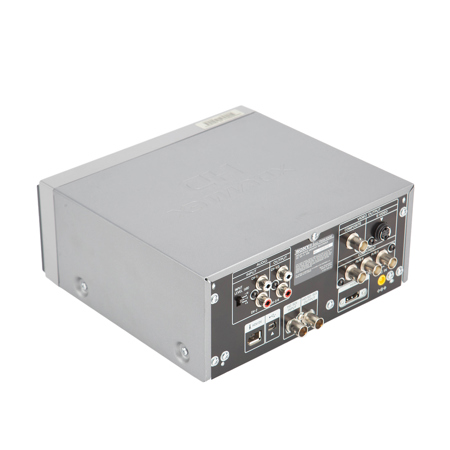

Sony PMW-EX30 XDCAM EX Recording Deck - SKU#1802018

Picture does not represent the actual item
See what's in the box

See all Sony items

Used Sony PMW-EX30 XDCAM EX Recording Deck

SKU: US1802018
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Used Sony PMW-EX30 XDCAM EX Recording Deck
undefined undefined: Picture 1 regular
Used Sony PMW-EX3 XDCAM EX HD Camcorder, 1/2" Exmor CMOS Sensors, Interchangeable 1/2" Lens System
undefined undefined: Picture 1 regular
Used Sony PMW-300K1 XDCAM HD Semi-Shoulder Handy Camcorder, 3.5" LCD Display, Fujinon Lens with 14x Zoom, MPEG HD422 at 50Mbps, SD/HD-SDI & HDMI Outputs
undefined undefined: Picture 1 regular
Sony PXW-Z300 3-CMOS XDCAM Camcorder
undefined undefined: Picture 1 regular
Used Sony PXW-X320 XDCAM Solid State Memory Camcorder, without Lens
undefined undefined: Picture 1 regular
Used Sony PXW-FS7 4K XDCAM Camera System with Super 35 CMOS Sensor, "Body Only". Monitor Unit, Viewfinder, Top Handle, and Microphone Holder are not included.
undefined undefined: Picture 1 regular
Used Sony PXW-X70 XDCAM XAVC HD422 Hand-Held Camcorder, 1" Exmor R CMOS Sensor, 12x Optical Zoom, 48x Digital Zoom, USB/HDMI
undefined undefined: Picture 1 regular
Used Sony PXW-X160 Full HD XDCAM Handheld Camcorder, G Lens with 25x Optical Zoom, MPEG HD 422, AVCHD & DV
undefined undefined: Picture 1 regular
Used Sony PXW-FS7 4K XDCAM Camera System with Super 35 CMOS Sensor
undefined undefined: Picture 1 regular
Sony PXW-Z200 4K HDR 1" CMOS Sensor 12G-SDI XDCAM Camcorder
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Sony PMW-EX30 Specifications

  • Recording Format

    Video: MPEG-2 Long GOP
    HQ mode: VBR, maximum bit rate: 35 Mb/s, MPEG-2 MP@HL
    SP mode: CBR, 25 Mb/s, MPEG-2 MP@H14
    Audio: Linear PCM (2ch, 16-bit, 48-kHz)

  • Playback Format

    MPEG HD: 1080/59.94i, 50i, 29.97P, 25P, 23.98P
    MPEG HD: 720/59.94P, 50P, 29.97P, 25P, 23.98P

  • Recording Frame Rate

    NTSC setting: HQ mode: 1920 x 1080/59.94i, 29.97P, 23.98P, 1280 x 720/59.94P
    SP mode: 1440 x 1080/59.94i
    PAL setting: HQ mode: 1920 x 1080/50i, 25P, 1280 x 720/50P
    SP mode: 1440 x 1080/50i

  • Recording/Playback Time

    HQ mode: 100 min. with SBP-32 (32 GB) memory card
    50 min. with SBP-16 (16 GB) memory card
    25 min. with SBP-8 (8 GB) memory card
    SP mode: 140 min. with SBP-32 (32 GB) memory card
    70 min. with SBP-16 (16 GB) memory card
    35 min. with SBP-8 (8 GB) memory card

  • Composite Output

    BNC (x1) - NTSC or PAL

  • S-Video Output

    Mini-DIN 4pin (x 1)

  • Component Output

    BNC (x 3)

  • Analog Audio Input

    RCA (CH-1,CH-2)

  • Analog Audio Output

    RCA (CH-1,CH-2)

  • SDI Input

    BNC (x 1), HD only

  • SDI Output

    BNC (x 1), HD/SD selectable

  • HDMI

    Type A 19-pin (x 1), output

  • i.LINK

    IEEE1394, 6pin (x 1), HDV stream input/output, DVCAM stream output, S400

  • USB

    USB device, Mini-B (x1)

  • Headphone Output

    Stereo mini jack (x 1)

  • DC Input (12 V)

    DC jack (12 V)

  • Built-In Display

    3.5-inch type color LCD monitor, approx. 921000 effective pixels, 640 (H) x 3 (RGB) x 480 (V), 16:9, hybrid type

  • Power Requirements

    DC 12 V

  • Power Consumption

    12 W

  • Operating Temperature

    +5 to +40deg.C (+32 to +104deg.F)

  • Storage Temperature

    -20 to +60deg.C (-4 to +140deg.F)

  • Dimensions (W x H x D)

    210 x 88 x 200 mm (8-3/8 x 3-1/2 x 7-7/8 inches)

  • Weight

    2.0 kg (4 lb 6 oz)

About Sony PMW-EX30 XDCAM EX Recording Deck - SKU#1802018

The PMW-EX30 deck is a highly versatile compact recording deck and can be used for many different applications. It allows simple viewing of recorded materials with a monitor, dubbing to other format/media such as HDV, XDCAM HD and HDCAM and feeding to nonlinear editing systems. In addition, the PMW-EX30 deck can be used as full HD recorder for event recordings - it can record HD signal outputs from a switcher.

The PMW-EX30 deck is equipped with a wide array of interfaces including HD-SDI input and output, HDMI output, HD analog component, composite outputs and more. Equipped with two SxS PRO memory card slots, the PMW-EX30 deck can record up to 140 minutes of HD footage using two 16-GB SxS PRO memory cards (in SP mode). The recording time can be further extended up to approximately 260 minutes when an optional PHU-60K professional hard disk unit is attached to the PMW-EX30 deck.

Sony PMW-EX30 XDCAM EX Recording Deck - SKU#1802018 Features

  • SxS Solid State Recording Technology: SxS technology is built for today's most demanding applications and beyond. Being based on the Expresscard/34 interface makes ultra-high transfer rates possible, up to 800 Mb/s
  • Compact Design: The HPX-EX30 can fit into almost any studio or editing workstation, saving valuable space. Since there are no moving parts within the deck, the system can be mounted horizontally and vertically
  • Built-In LCD: The unit comes equipped with a high-resolution LCD screen. Users can navigate clip-by-clip, allowing for quick and easy review and capture
  • HD-SDI and HDMI: The PMW-EX30 features both HDMI and HD-SDI outputs, allowing it to output 100% digital HD signals in multiple ways
  • Extended Record Time: Due to the space-saving nature of XDCAM EX, the 8 and 16GB memory cards are capable of recording for long periods of time. Documentary work will never be a problem when shooting on the PMW-EX30

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sony PMW-EX30 XDCAM EX Recording Deck
  • AC Adaptor
  • Item Note: Missing IR Remote Control; USB Cable; 2 x Stand; Operation Manual; XDCAM EX Browsing Clip Software; SxS Device Driver Software
