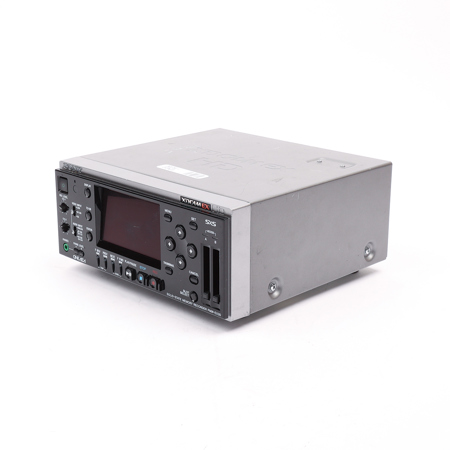

Sony PMW-EX30 XDCAM EX Recording Deck
See all Sony items
Used Condition: Well Used

Used Sony PMW-EX30 XDCAM EX Recording Deck

SKU: US2035786 MFR: PMWEX30
Be the first to review this item
$251.00
OR
$42/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points
See 1 Used options for $251

What`s in the box:

  • Sony PMW-EX30 XDCAM EX Recording Deck
  • AC Adaptor
See more

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1
Add to List

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Sony PMW-EX30 Specifications

  • Recording Format

    Video: MPEG-2 Long GOP
    HQ mode: VBR, maximum bit rate: 35 Mb/s, MPEG-2 MP@HL
    SP mode: CBR, 25 Mb/s, MPEG-2 MP@H14
    Audio: Linear PCM (2ch, 16-bit, 48-kHz)

  • Playback Format

    MPEG HD: 1080/59.94i, 50i, 29.97P, 25P, 23.98P
    MPEG HD: 720/59.94P, 50P, 29.97P, 25P, 23.98P

  • Recording Frame Rate

    NTSC setting: HQ mode: 1920 x 1080/59.94i, 29.97P, 23.98P, 1280 x 720/59.94P
    SP mode: 1440 x 1080/59.94i
    PAL setting: HQ mode: 1920 x 1080/50i, 25P, 1280 x 720/50P
    SP mode: 1440 x 1080/50i

  • Recording/Playback Time

    HQ mode: 100 min. with SBP-32 (32 GB) memory card
    50 min. with SBP-16 (16 GB) memory card
    25 min. with SBP-8 (8 GB) memory card
    SP mode: 140 min. with SBP-32 (32 GB) memory card
    70 min. with SBP-16 (16 GB) memory card
    35 min. with SBP-8 (8 GB) memory card

  • Composite Output

    BNC (x1) - NTSC or PAL

  • S-Video Output

    Mini-DIN 4pin (x 1)

  • Component Output

    BNC (x 3)

  • Analog Audio Input

    RCA (CH-1,CH-2)

  • Analog Audio Output

    RCA (CH-1,CH-2)

  • SDI Input

    BNC (x 1), HD only

  • SDI Output

    BNC (x 1), HD/SD selectable

  • HDMI

    Type A 19-pin (x 1), output

  • i.LINK

    IEEE1394, 6pin (x 1), HDV stream input/output, DVCAM stream output, S400

  • USB

    USB device, Mini-B (x1)

  • Headphone Output

    Stereo mini jack (x 1)

  • DC Input (12 V)

    DC jack (12 V)

  • Built-In Display

    3.5-inch type color LCD monitor, approx. 921000 effective pixels, 640 (H) x 3 (RGB) x 480 (V), 16:9, hybrid type

  • Power Requirements

    DC 12 V

  • Power Consumption

    12 W

  • Operating Temperature

    +5 to +40deg.C (+32 to +104deg.F)

  • Storage Temperature

    -20 to +60deg.C (-4 to +140deg.F)

  • Dimensions (W x H x D)

    210 x 88 x 200 mm (8-3/8 x 3-1/2 x 7-7/8 inches)

  • Weight

    2.0 kg (4 lb 6 oz)

About Sony PMW-EX30 XDCAM EX Recording Deck

The PMW-EX30 deck is a highly versatile compact recording deck and can be used for many different applications. It allows simple viewing of recorded materials with a monitor, dubbing to other format/media such as HDV, XDCAM HD and HDCAM and feeding to nonlinear editing systems. In addition, the PMW-EX30 deck can be used as full HD recorder for event recordings - it can record HD signal outputs from a switcher.

The PMW-EX30 deck is equipped with a wide array of interfaces including HD-SDI input and output, HDMI output, HD analog component, composite outputs and more. Equipped with two SxS PRO memory card slots, the PMW-EX30 deck can record up to 140 minutes of HD footage using two 16-GB SxS PRO memory cards (in SP mode). The recording time can be further extended up to approximately 260 minutes when an optional PHU-60K professional hard disk unit is attached to the PMW-EX30 deck.

Sony PMW-EX30 XDCAM EX Recording Deck Features

  • SxS Solid State Recording Technology: SxS technology is built for today's most demanding applications and beyond. Being based on the Expresscard/34 interface makes ultra-high transfer rates possible, up to 800 Mb/s
  • Compact Design: The HPX-EX30 can fit into almost any studio or editing workstation, saving valuable space. Since there are no moving parts within the deck, the system can be mounted horizontally and vertically
  • Built-In LCD: The unit comes equipped with a high-resolution LCD screen. Users can navigate clip-by-clip, allowing for quick and easy review and capture
  • HD-SDI and HDMI: The PMW-EX30 features both HDMI and HD-SDI outputs, allowing it to output 100% digital HD signals in multiple ways
  • Extended Record Time: Due to the space-saving nature of XDCAM EX, the 8 and 16GB memory cards are capable of recording for long periods of time. Documentary work will never be a problem when shooting on the PMW-EX30
