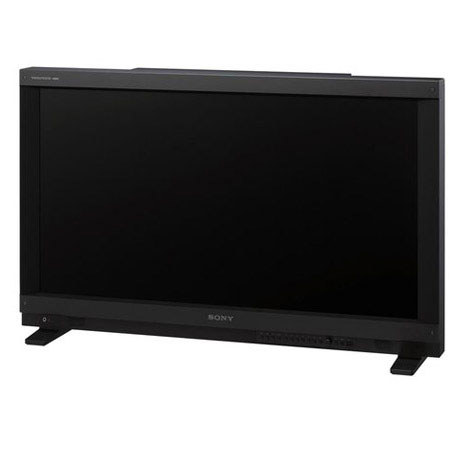

Used Sony PVM-X300 30" 4K Trimaster LCD Professional Monitor, 17:9 Aspect Ratio, 3G/HD-SDI, HDMI and DisplayPort

SKU: US1978822 MFR: PVM-X300
Earn VIP Reward Points

What`s in the box:

  • "Sony PVM-X300 30"" 4K Trimaster LCD Professional Monitor
  • AC Power Cord
  • AC Plug Holder
See more

Key Features

  • 30-inch true 4K LCD panel
  • Supports variety of resolution outputs
  • Wide variety of 4K interfaces
  • Optional SxS 4K player
  • Auto White Adjustment
  • Camera Assist Function
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony PVM-X300 Specifications

  • Panel

    a-Si TFT Active Matrix LCD

  • Picture size (diagonal)

    767.5 mm/ 30.2 inches

  • Effective picture size (H x V)

    678.9 x 358.0 mm
    26 3/4 x 14 1/8 inches

  • Resolution (H x V)

    4096 x 2160 pixels

  • Aspect Ratio

    17:9

  • Panel drive

    RGB 10-bit

  • Viewing angle (panel specification)

    89deg./89deg./89deg./89deg. (typical) (up/down/left/right contrast > 10:1)

  • Input

    SDI: BNC (x4)
    HDMI: HDMI (x4) (HDCP correspondence)

  • Output

    SDI: BNC (x4)
    Output signal amplitude: 800 mVp-p +/-10%
    Output impedance: 75 Ohms unbalanced
    Audio monitor: Stereo mini jack (x1)
    Speaker (built-in): 1.0 W (stereo)
    Headphone: Stereo mini jack (x1)

  • Power requirements

    AC 100 V to 240 V, 2.3 A to 1.1 A, 50/60 Hz

  • Power consumption

    Approx. 210 W (max.)

  • Operating temperature

    0deg.C to 35deg.C (32deg.F to 95deg.F)
    Recommended: 20deg.C to 30deg.C (68deg.F to 86deg.F)

  • Operating humidity

    30% to 85% (no condensation)

  • Storage and transport temperature

    -20deg.C to +60deg.C
    -4deg.F to +140deg.F

  • Storage and transport humidity

    0% to 90%

  • Operating, storage,& transport pressure

    700 hPa to 1060 hPa

  • Dimensions (W x H x D)

    754 x 457 x 120mm / 29.68 x 17.99 x 4.72"
    754 x 475 x 205 mm / 29.68 x 18.70 x 8.07" (with monitor feet)

  • Weight

    37.5 lbs (17 kg)

About Sony PVM-X300 30" 4K Trimaster LCD Professional Monitor, 17:9 Aspect Ratio, 3G/HD-SDI, HDMI and DisplayPort

The Sony PVM-x300 has a 30-inch 4K LCD panel (4096 x 2160) capable of displaying over four times Full HD resolution in a single screen. The professional LCD monitor incorporates Sony's exclusive TRIMASTER technology architecture, achieving excellent color and picture quality reproduction, which makes this monitor ideal for 4K cinema production (onset monitoring, dailies and editing), 4K live production (camera control, program preview) and real-time 4K presentation. Portable and versatile design for wide range of applications.

The Sony PVM-x300 is designed to be high performance and versatile in terms of the interfaces, controls and compatibility with production cameras and memory media. Furthermore, the PVM-x300 can incorporate an innovative and optional 4K SXS player which offers unprecedented ease of handling 4K content. This expands the new 4K world not only to cinema applications, but also for live production, documentaries, business and industry applications.

Sony PVM-X300 30" 4K Trimaster LCD Professional Monitor, 17:9 Aspect Ratio, 3G/HD-SDI, HDMI and DisplayPort Features

  • 30-inch true 4K LCD panel with 10-bit driver: The PVM-X300 has a 30-inch 4K LCD panel (4096 x 2160) with a wide viewing angle capable of displaying over four times Full HD resolution in a single screen
  • Supports variety of resolution outputs: The monitor supports 4096x2160/24p and 3840x2160/24p/25p/30p with 1 single HDMI cable. The PVM-X300 is also equipped with the unique feature of evaluating video signal of 4096x2160/50p with 1 single HDMI cable when connected to Sony's new F55 4K camera system
  • Wide variety of 4K interfaces: A wide variety of interfaces makes the PVM-X300 able to connect to almost any 4K imaging equipment and support various display modes. These include: 3G/HD-SDI x4 inputs with monitor out; HDMI x4 inputs; DisplayPort x 2 inputs
  • Optional SxS 4K player: The PVM-X300 can incorporate an optional 4K player, which is capable of easy playback of 4K content. The newly-developed SxS PRO+ high speed memory media, which supports XAVC 4K and XAVC HD HFR recording
  • Auto White Adjustment: The PVM-X300 has an Auto White Adjustment function that supports 10 of the major color analyzers in the market: i1 Pro, i1 Pro 2(X-Rite), CA-210, CA-310, CS-200 (Konica Minolta), PM5639/06 (DK-Technologies), PR-655, PR-670 (Photo Research), K-10(Klein) and Specbos1211(JETI)
  • Camera Assist Function: The monitor has a Camera Assist Function for focus in color and zoom
  • Stereo audio: Audio is supported with stereo speakers, line out and headphone jack

Warranty Information

This used item has a FREE 180-day warranty. See details.

Key Features

  • 30-inch true 4K LCD panel
  • Supports variety of resolution outputs
  • Wide variety of 4K interfaces
  • Optional SxS 4K player
  • Auto White Adjustment
  • Camera Assist Function
