Used Sony PVM740 7.4 inch OLED Monitor, 960x540 Resolution, NTSC/PAL Video System, 4:3/16:9 Aspect Ratio
SKU: US1711040
This item is no longer available.
Recommended Items
Share:
Overview
Compare
Specs
Protection

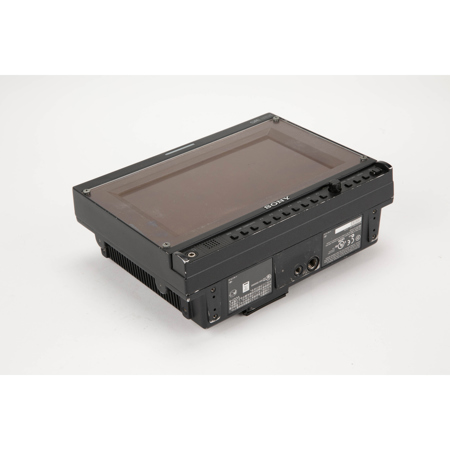

About Sony PVM740 7.4" OLED Monitor - SKU#1711040
The PVM 740 is another leap in Sony imaging technology. Using the new OLED (Organic Light Emitting Diode) technology, blacks are black. Contrast is mesmerizing and your picture never looked so good. Incorporating Sony's "STE" (Super Top Emission) structure, the PVM 740 can display extremely wide gamut colors and repel panel glare so that "on set" or "in the field" viewing is simple and accurate.
The PVM 740 also includes other features that make it the favorite for view and framing camera images. The new "Flip" feature can swap the image horizontally, vertically, or combined so that over and under 3D rig viewing is a simple push of a button. The SD/HD/3G input is an option so even display of HD 60P images is a snap.
The chassis is made of cast aluminum for durable in field use and includes a protection panel for the OLED so that rough handling has no effect on performance. The small size of the PVM 740 allows usage in various applications including ENG/EFP, OB Van, Editing Systems and Monitor Walls. By employing a 960 x 540 16:9 OLED panel, contrast is as never seen before and image lag is a thing of the past. Picture quality is excellent both indoors and outdoors.
Additionally the PVM 740 incorporates Sony's ChromaTru color processing which allows the PVM 740 to accurately display images as SMPTE, EBU or ITU-R BT709 color standards. The PVM 740 comes standard with one composite, one auto detecting SDI/HDSDI/3G input. One HDMI input, internal waveform monitor, AC power adapter and ¼ and 3/8 holes for camera mounting.
Sony PVM740 7.4" OLED Monitor - SKU#1711040 Features
- OLED Display Technology - 960 x 540 Panel Resolution
- 4:3 / 16:9 Aspect Ratio Selection
- Monaural Speaker
- Adjustable Color Temperature (High/ Low/ User)
- Parallel Remote
- Scan Mode (Over, Full, Native)
- Removable Protection Panel
- Mono/ Blue only mode
- Various area markers, including a center marker and aspect markers
- Three Color Tally
- Seven language on-screen menu
- 3 mode power system - AC100V, DC12V, Battery Adapter
- Flip display for use on 3D rigs
- Composite input / output standard
- 3G SDI input / output standard
- 3G SDI input auto-detects between SD-SDI, HD-SDI and 3G SDI
- HDMI Input standard
- Peaking feature for exact camera focus
- PC input signals through HDMI input (HDPC compatible)
- Cast aluminum chassis and display protection panel for rough handling
- Silent mode for on set use when fan noise is not tolerable
- Seven assignable "F keys" for instant access to most any function
- AC, DC and battery operation. AC adapter is included
- Internal Waveform monitor with -4%, 0%, 25%, 50%, 75%, 100% and 109% gradicule
- Internal audio monitoring including graphic bar display and speaker
