Picture does not represent the actual item
Need help? Ask our experts.
Review Summary
2018-03-19T02:27:36
We already had Sony professional monitors in our facility and knew this monitor will answer our needs as well. We were not disappointed.
ACCOUNTS P.
Super Top Emission OLED
16:9 and 4:3
16:9
1920 x 1080
17" (16.5" measured diagonally)
1.0 watts
Yes
Both
Yes
1280 x 1024
1280 x 768
1360 x 768
640 x 480
Yes
Yes
One
Yes and twin SMPTE 425M 3G with active loop through
Yes
Menus, Tally, Flicker Free On/Off and Video Format
Composite: NTSC or PAL
Digital RGB: 720p, 1080i, 1080p
Digital Y Pb Pr: 720p, 1080i, 1080p
Digital Y R-Y B-Y: 525 line or 625 line
Displayed as stereo pairs or individual mono channels. Up to 16 channels can be selected.
Yes
Yes
Yes with line select and zoom functions
Yes
12VDC
Internal
60 watts
100 to 240VAC
1080 23.98P: SDI & HDMI
1080 23.98Psf: SDI Only
1080 24P: SDI & HDMI
1080 24Psf: SDI Only
1080 60P: SDI & HDMI
1080 60i:
SDI & HDMI
480 60i: Composite, SDI & HDMI
576 50i: Composite, SDI & HDMI
720P 50 or 60Hz: SDI & HDMI
17.25 x 11.87 x 6.5" / 43.82 x 30.15 x 16.51cm (with stand)
17.25 x 10.75 x 2.63" / 43.82 x 27.31 x 6.68cm (without stand)
9.25lbs / 4.2kg without handle
Monitor answered our needs
By ACCOUNTS P.
We already had Sony professional monitors in our facility and knew this monitor will answer our needs as well. We were not disappointed.

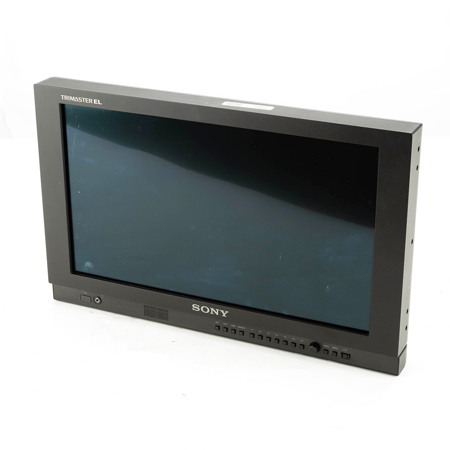

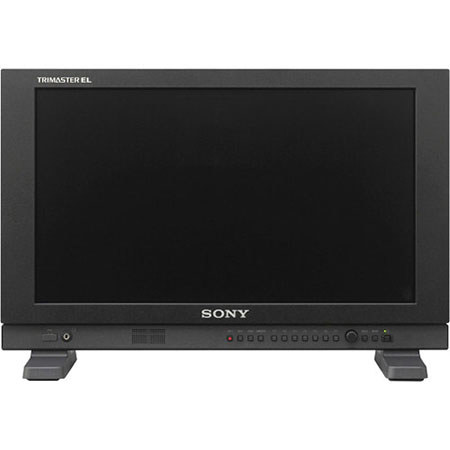

The Sony PVMA170 17" Professional OLED Picture Monitor is suitable for both field and studio use. It features a 16.5" diagonal OLED panel that has a native resolution of 1920 x 1080. Because of the OLED technology employed, each pixel can be switched completely off--unlike typical LCD displays--for a much closer approximation of true black. It can be connected to standard- and high-definition video sources via SDI or HDMI as well as analog standard-definition sources through composite.
The PVMA170 features two SDI inputs with loop-out that support 3G-SDI, HD-SDI and SD-SDI signals at resolutions up to 1080p60. In addition, 24 fps frame rates are supported, including 23.98p, 23.98Psf, 24p native and 24Psf. It features an HDMI input that supports 1080p60, 24p, 23.98p, standard-definition and a number of computer resolutions. A composite input with loop-out provides connectivity for standard-definition analog devices and is paired with a 3.5mm stereo mini jack audio input. A front panel 3.5mm headphone jack allows users to monitor embedded audio locally and there is also a 1W Built-In Speaker.
Two Ethernet ports provide connectivity for serial and parallel remotes. Many third-party options can be used, as well as the Sony BKM-15R and BKM-16R. The monitor includes a removable desktop stand and is also compatible with standard VESA 100 x 100mm mounting hardware.
In addition to taking 100 to 240 VAC power, the PVMA170 features a 4-pin XLR DC input. This allows it to be field powered using a 12 VDC source such as a professional video battery system.
Accurate Black Reproduction
Unlike many alternative display technologies, the OLED panel used in the PVMA170 features the ability to turn each pixel completely off so that no luminance signal is added to parts of the image recorded as black.
Super Top Emission Technology
Designed to provide a wide color gamut with accurate color reproduction throughout the luminance range of the picture.
Faster Response Time than LCD Panels
The gray-to-gray switching of the PVMA170 is faster than comparable LCD-based displays. This helps eliminate ghosting, motion blur (that is not naturally part of the scene) and other artifacts that reduce image quality.
Wide Angle of View
Provides better off-axis viewing than many LCD-based alternatives, allowing users to accurately evaluate the image even if positioned off to the side. It features an 89deg. viewing angle in all directions while the contrast ratio remains above 10:1.
Low-Latency Image Processing
The PVMA170's I/P conversion system delivers automatically optimized signal processing according to the input signal format, with a latency of less than 0.5 fields. This helps ensure fast-moving images stay in sync with the audio.
On-Screen Display (OSD)
Waveform Monitor and Vector Scope
Provides a built-in waveform and vector scope display so that users do not have to rely on dedicated equipment. Both displays can be magnified from 0 to 20% for detailed analysis and within the waveform display the Line Select feature allows a specific portion of the image to be isolated. Level meters for two channels of embedded audio may also be displayed alongside the waveform or vector scope.
Focus Assist with Color Peaking
An aperture level adjustment displays images with sharpened edges (peaking) to aid camera focus operation. In addition, the sharpened edges can be displayed in user-selectable colors (white, red, green, blue and yellow) for increased visibility.
Audio Level Indicator
Embedded audio levels can be displayed as stereo pairs or individual mono channels. Up to 16 channels can be selected at once.
Closed Captions
OSD can display EIA 608 and EIA 708 captions.
Additional Displays
Additional OSD features include: a tally overlay, video format overlay and an on-screen menu system.
Emphasis on Portability
The PVMA170 is 40% slimmer than the previous generation and weighs in at 9.3 lb. In addition, a handle is built into the back to simplify transport.
Recessed Connector Panel
The connectors do not protrude from the back of the monitor helping to ensure they will not be damaged during transport or if the monitor is laid flat.
