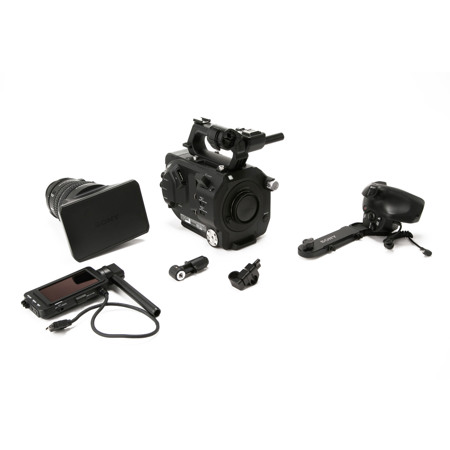

Sony PXW-FS7K 4K XDCAM Super35 Camera with FE PZ 28-135mm OSS Lens - SKU#1554907

Picture does not represent the actual item
See what's in the box

See all Sony items

Used Sony PXW-FS7K 4K XDCAM Super35 Camera with 28 to 135mm E-Mount Zoom f/4 G OSS Lens, 1/3 to 1/9,000sec Shutter Speed

SKU: US1554907
(3)

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Used Sony PXW-FS7 4K XDCAM Camera System with Super 35 CMOS Sensor
undefined undefined: Picture 1 regular
Used Sony PXW-FS7 4K XDCAM Camera System with Super 35 CMOS Sensor, "Body Only". Monitor Unit, Viewfinder, Top Handle, and Microphone Holder are not included.
undefined undefined: Picture 1 regular
Used Sony PXW-FS7 4K XDCAM Camera System with XDCA-FS7 Extension Unit. Super 35 CMOS Sensor
Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

2016-08-08T20:05:48

Rated 5 out of 5

All around great Camera

From the handle grip and the ergonomics, to the video image quality of this camera is just great. so far so good...I Love it!

Carl S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Sony PXW-FS7 Specifications

  • Built-in Optical Filters

    CLEAR
    1/4 (2 Stops)
    1/16 (4 Stops)
    1/64 (6 Stops)

  • Effective Picture Elements

    11.6 MillionTTL 8.9 in 4K; 8.3 Million in UHD snd HD

  • Gain

    -3, 0, 3, 6, 9, 12, 18 dB, AGC

  • Imaging Device

    Super35mm Progressive Scan EXMO Sensor

  • Minimum Illumination

    0.7 lx (+18 dB, 23.98p, Shutter OFF, ND Clear, F1.4)

  • Optical System

    Bayer

  • S/N Ratio

    57 dB (Y) (typical)

  • Sensitivity (2000 lx, 89.9% reflectance)

    T14 under the following conditions: Video Gamma, 3840 x 2160; 23.98p mode 3200K

  • Shutter Speed (Time)

    1/3 sec to 1/9,000 sec

  • Slow & Quick Motion Function

    XAVC-I mode 3840 x 2160: 1 to 60 frames (59.94p, 50p, 29.97p, 23.98p, 25p)
    XAVC-I mode 1920 x 1080: 1 to 180 frames (59.94p, 29.97p, 23.98p)
    XAVC-I mode 1920 x 1080: 1 to 150 frames (50p, 25p)
    XAVC-L mode 3840 x 2160: 1 to 60 frames (59.94p, 50p, 29.97p, 23.98p, 25p)
    XAVC-L mode 1920 x 1080: 1 to 120 frames (59.94p, 50p, 29.97p, 23.98p, 25p)

  • Slow Shutter

    Up to 1//3 of a second

  • White Balance

    Preset, Memory A, Memory B & ATW (1500K-50000K

  • Battery Operating Time

    Approx. 1 hrs with BP-U30 battery (while recording XAVC-I QFHD 59.94p with SELP28135G Lens, Viewfinder ON and not using external device)
    Approx. 2 hrs with BP-U60 battery(while recording XAVC-I QFHD 59.94p with SELP28135G Lens, Viewfinder ON and not using external device)
    Approx. 3 hrs with BP-U90 battery (while recording XAVC-I QFHD 59.94p with SELP28135G Lens, Viewfinder ON and not using external device)

  • Built-in Microphone

    Built-in Omni-directional monoaural electret condenser microphone.

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Power Consumption

    Approx. 19 W (while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device)

  • Power Requirements

    DC 12 V

  • Recording Format 1

    XAVC-I 10-bit 4:2:2
    UHD - 4K (3840x2160) 59.94p; 50p; 29.97p; 25p; 23.98p
    HD (1920x1080) 59.94p; 59.94i; 50p; 50i; 29.97p; 25p; 23.98p
    XAVC-L 8-bit 4:2:0
    UHD (3840x2160) 59.94p; 50p; 29.97p; 25p; 23.98p
    HD (1920x1080) 59.94p; 59.94i; 50p; 50i; 29.97p; 25p; 23.98p
    MPEG-2 8-bit 4:2:2
    HD (1920x1080) 59.94i; 50i; 29.97p; 25p; 23.98p
    HD (1280x720) 59.94p, 50p, 29.97p, 23.98p, 25p

  • Recording Format 2

    RAW 12-bit linear with optional EXCA-FS7 and external recorder solution
    4K (4096x2160) 60p; 50p; 29.97p; 25p 23.98p
    2K (2048x2160) 60p; 50p; 29.97p; 25p 23.98p

  • Recording Frame Rate 1

    XAVC-I UHD - 4K (3840x2160) 59.94p; 50p; 29.97p; 25p; 23.98p
    XAVC-L UHD (3840x2160): 59.94p; 50p; 29.97p; 25p; 23.98p
    XAVC-I HD (1920x1080) 59.94p; 59.94i; 50p; 50i; 29.97p; 25p; 23.98p
    XAVC-L HD (1920x1080) 59.94p; 59.94i; 50p; 50i; 29.97p; 25p;

  • Recording Frame Rate 2

    23.98p
    MPEG-2 Long HD (1920x1080) 59.94i; 50i; 29.97p; 25p; 23.98p
    MPEG-2 Long HD (1280x720) 59.94p, 50p, 29.97p, 23.98p, 25pHD
    RAW 12-bit linear with optional EXCA-FS7 and external recorder solution
    4K RAW(4096x2160) 60p; 50p; 29.97p; 25p 23.98p
    2K RAW (2048x2160) 60p; 50p; 29.97p; 25p 23.98p

  • Recording Mode

    Exposure Index (EI) and Custom

  • Storage Temperature

    4 to +140 deg. F / -20 to +60 deg. C

  • Audio Input

    MI Shoe plus XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable Mic Reference: -40, -50, -60 dB

  • Audio Output

    Headphone Stereo mini jack (x1) -16 dBu 16 Ohms

  • Composite Output

    Via SDI or HDMI connectors

  • DC Input

    DC Jack with camera body or 4-pin XLR when optional XDCA-FS7 is used.

  • DC Output

    4-pin Hirose when optional XDCA-FS7 is used.

  • Genlock Input

    With optional EXCA-FS7 (H phase adjustment is possible)

  • HDMI Output

    Type A (10-bit 4:2:2 HD all frame rates and UHD up to 30fps. Above 30fps UHD HDMI out is 8-bit 4:2)

  • Headphone Output

    Stereo mini jack (x1) -16 dBu 16 Ohms

  • Lens Remote

    By included SmartGrip, Externally via LANC or Wi-Fi remote

  • MIC

    Built in: Monoaural Omnidirectional Electret Condenser Microhone

  • Remote

    RMt845 IR remote and Wi-Fi

  • SDI Output

    BNC (x2), switchable with 3G-SDI/HD-SDI SMTPE292M/424M/425M

  • Speaker Output

    Monaural

  • Timecode Input

    BNC when optional XDCA-FS7 is used (no looping)

  • Timecode Output

    BNC when optional XDCA-FS7 is used.

  • USB

    USB device, mini-B (x1)

  • VF

    8.8 cm (3.5 type) Approx. 1.56M dots

  • Video Output

    BNC (x2), switchable with 3G-SDI/HD-SDI SMTPE292M/424M/425M

  • Filter Diameter

    90mm

  • Focal Length

    28mm to 135mm

  • Focus

    Internal

  • Iris

    Nine blades (circular perture) F/4 to F/22 (click or click-less)

  • Lens Mount

    Sony E-Mount

  • Zoom Ratio

    4.8x

  • Viewfinder

    3.5" / 8.89cm LCD Approx.1.56M dots

  • Dimensions (W x H x D)

    156 x 239 x 247mm / 6.14 x 9.40 x 9.72"

  • Mass

    Approx. 9.9lbs / 4.49kg fully equipped, with Viewfinder, Eyepiece, Grip Remote Control, BP-U30 battery, SELP28135G LENS, an XQD memory card
    4lbs / 1.81kg Camera head only

Related Articles & Videos

4K Playback on Vimeo: What Will This Mean?

4K Playback on Vimeo: What Will This Mean?

Although Vimeo recently announced the introduction of 4K playback to their streaming service, their adaptive technology might render the news meaningless for filmmakers wanting to showcase their work. Or does it?

Read more
Sony Announces Two Professional Camcorders, Lens

Sony Announces Two Professional Camcorders, Lens

Sony today released its latest XDCAM solid-state memory camcorder, the Sony PXW-X200. Built around an improved 1/2-inch type Exmore 3COMOS sensor, the camera boasts a 17x optical zoom lens and XAVC Intra/Long GOP recording with..

Read more
Sony Releases Firmware Update for the PXW-FS7

Sony Releases Firmware Update for the PXW-FS7

Soon after releasing firmware updates for their CineAlta line of cine cams, Sony follows up with an additional update for the FS7.

Read more
IBC First Look: Sony PXW-FS7

IBC First Look: Sony PXW-FS7

AdoramaTV presents an in-depth product overview by Michael Artsis for Adorama Pro. Join Michael at IBC in Amsterdam for a close-up look at Sony's PXW-FS7. Learn why this versatile 4K pro-level camcorder deserves a spot in your video tool kit and the types of projects it can tackle.

Read more

About Sony PXW-FS7K 4K XDCAM Super35 Camera with FE PZ 28-135mm OSS Lens - SKU#1554907

SONY Camcorder Firmware Update Enables 4K RAW Output and More

The Sony PXW-FS7K 4K XDCAM is a full-frame Super 35mm size sensor professional 4k camcorder, and is being sold in a kit with the 28-135mm f/4G E-mount OSS zoom lens. Designed for 4k single-camera video production, this Sony digital movie camera is especially well suited for shooting documentary, news, and commercial video. The Sony 28-135mm power zoom is designed to cover the full-frame sensor and 4K resolution; it mounts directly to the camera without an adapter, and has separate geared focus, zoom and iris rings.

What you should know about this camera:
• Supports many lenses: In addition to native E-mount, the camera accepts Sony A-mount, Canon EF and PL and Leica lenses with an adapter.
• Fast AF: Focus is attained using phase detection and works in almost any lighting conditions.
• Powerful sensor: The camera has a 4K Super 35mm Exmor sensor with 12 million pixel resolution. The sensor captures outstanding 10-bit 4:2:2 images at 50Mbps with superior grayscale rendition.
• Multiple formats: The camera records UHD 3840 XAVC-Intra and XAVC-Long both up to 60fps, 1080p XAVC-Intra (up to 180fps) and XAVC-Long up to 120fps, and 1080p and 720p in MPEG-2.
• Solid construction: The camera is built on a die-cast magnesium frame and is environmentally sealed."

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • PXW-FS7 4K XDCAM Super35 Camera
  • FE PZ 28-135mm f/4 G OSS Lens
  • Rear Lens Cap
  • Lens Hood
  • Lens Support Foot
  • Hood Cap
  • Body Cap
  • Viewfinder Monitor
  • Grip Remote Control
  • Wireless LAN USB Module
  • Wireless Remote Commander
  • BC-U1 Adapter/Charger
  • BP-U90 Battery
  • AC Power Cable
  • Mini USB Cable
  • Firmware 4.00
  • Item Note: Missing WA Adaptor Bracket; Eyepiece
