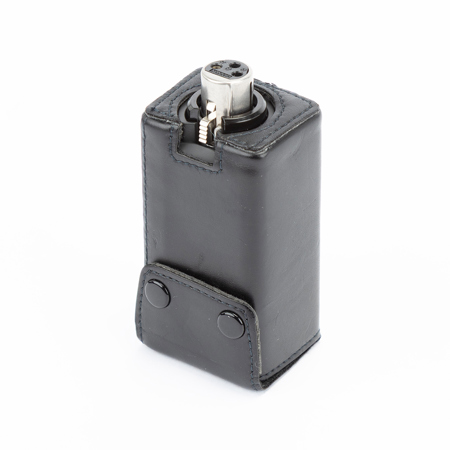

Used Sony Sony UTX-P1 UWP Series Plug-on Transmitter, Operating on TV Channels 42 to 45

SKU: US2051725 MFR: UTXP1/4244
$157.00
Earn VIP Reward Points

What`s in the box:

  • Sony UTX-P1 UWP Series Plug-on Transmitter
  • Soft Case
See more

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Free Shipping

See Options

1

Add Adorama Protect:

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Sony UTX-P1 Specifications

  • Oscillator

    Crystal-controlled PLL synthesizer

  • Type Of Emission

    F3E

  • Carrier Frequencies

    638 MHz to 662 MHz (TV channels 42,43,44,45), users may choose from 188 frequencies

  • RF Power Output

    50 mW

  • Pilot Tone Signal

    32 kHz

  • Frequency Response

    50 Hz to 18 kHz

  • Reference Deviation

    +/-10 kHz (-60 dBV, 1kHz input)

  • Signal-To-Noise Ratio

    60 dB or more (+/-10 kHz deviation at 1 kHz modulation, A-weighted)

  • Audio Attenuator Adjustment Range

    0 to 21 dB (in 3 dB steps)

  • Audio Input Level

    MIC input position: -60 dBV (at 0 dB attenuator level), LINE input position: +4 dBu

  • Audio Input Connector

    XLR-3-11C type

  • Indicators (LCD, LED)

    LCD: channel/freq, attenuator, audio-input, RF-output, battery, operating time. LED: audio-input

  • Power Requirements

    DC 3.0 V (two AA-size batteries)

  • Battery Life

    Approx. 6 hours with Sony AA-size batteries at 25 °C (77 °F)

  • Dimensions (W x H x D)

    1-3/4 x 3-7/8 x 1-7/16 inches

  • Weight

    Approx. 6 oz including batteries

  • Warranty

    Sony warranty

About Sony Sony UTX-P1 UWP Series Plug-on Transmitter, Operating on TV Channels 42 to 45

The Sony UTX-P1 plug-on transmitter is designed to be used with Sony UWP series wireless tuners. It's extremely durable and is well balanced for use with the Sony F-112 - a dynamic microphone suited to cost-effective newsgathering applications. The UTX-P1 plug-on transmitter also accepts line-level audio input signal as well.

Whether used in a low-cost ENG or EFP system, the UTX-P1 delivers the convenience of uncompromised wireless microphone operation at a very affordable price.

Sony Sony UTX-P1 UWP Series Plug-on Transmitter, Operating on TV Channels 42 to 45 Features

  • Plug-on transmitter designed only for use with UWP Series tuners
  • Operates over a wide 24 MHz frequency band within the range of 566 to 590 MHz
  • Converts a wired microphone to a wireless microphone via an XLR connection
  • 50 mW RF power output for stable and long-distance transmission
  • MIC/LINE input level switchable
  • Approximately six hours of continuous operation with two AA-size batteries
  • A backlit LCD provides extensive information, including the operating channel number and frequency in MHz, attenuator level, audio-input status, RF-output status, transmitter-battery status and accumulated operating time

Warranty Information

This used item has a FREE 90-day warranty. See details.
