Sony SRG-120DU Specifications

  • Image Sensor

    1/2.8-type Exmor CMOS Sensor

  • Effective Pixels

    Approx. 2.1 Megapixels

  • Signal System

    1080/59.94p, 50p, 29.97p, 25p
    720/59.94p, 50p, 29.97p, 25p

  • Minimum Illumination (50IRE)

    1.8 lx (50IRE, F1.8, 30fps)

  • Frame Rate

    60fps

  • S/N Ratio

    50dB

  • Gain

    Auto/Manual (0 to +43dB)

  • Shutter Speed

    1/1 to 1/10000 sec (59.94Hz system)
    1/1 to 1/10000 sec (50Hz system)

  • Exposure Control

    Auto, Manual, Priority AE (Shutter,Iris), Exposure compensation, Bright

  • White Balance

    Auto, Indoor, Outdoor, One-push auto, ATW, Manual

  • Optical Zoom

    12x

  • Digital Zoom

    12x

  • Focusing System

    Auto/Manual

  • Horizontal Viewing Angle

    71 degree (Wide)

  • Focal Length

    f=3.9mm (Wide) to 46.8mm (Tele)
    F1.8 to 2.0

  • Minimum Object Distance

    10mm (Wide) to 1500mm (Tele)

  • Pan/Tilt Angle

    Pan: +/-100 deg. Tilt: +/-25 deg.

  • Pan/Tilt Speed

    Pan: 300 deg./sec Tilt: 126 deg./sec (Max.)

  • Preset Position

    16x1

  • Auto ICR

    No

  • WDR (View-DR)

    Yes

  • Image Stabilizer

    No

  • Image Flip

    No

  • Auto Power Off

    No

  • HD Video Output

    USB 3.0

  • Camera Control Interface

    RS-232/RJ-45

  • Sync. System

    INT

  • Power Requirements

    DC 12V (DC 10.8 to 13.2V)

  • Power Consumption

    16.8W

  • Mountable Angle

    +/-15 deg.

  • Ceiling Mount

    No

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Dimensions (W x H x D)

    153 x 156 x 153mm / 6.02 x 6.14 x 6.02"

  • Mass

    1.6kg / 3.53lbs

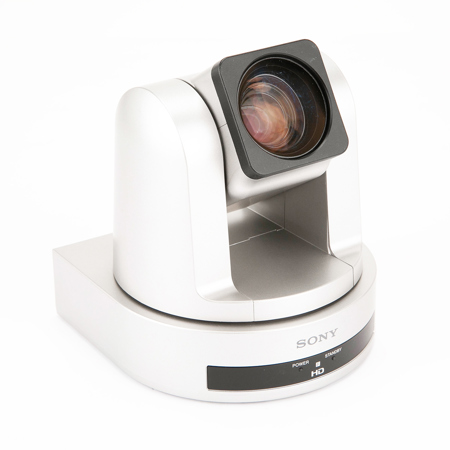

About Sony SRG-120DU 2.1MP Full HD Remotely Operated PTZ Camera - Silver SKU#1436753

PC-friendly desktop PTZ camera for corporate, educational and telemedicine applications, with 12x optical zoom and high frame rate 60fps
The SRG-120DU is a desktop PTZ camera that captures high-quality color video images in corporate boardrooms, huddle spaces, lecture theatres, training rooms, medical suites and classrooms. Connected directly to a PC via USB3.0 or controlled remotely over standard IP networks, it's an ideal partner for software-based videoconferencing systems, UCC (Unified Communications and Collaboration) and multimedia streaming systems.

The camera's sensitive 1/2.8-type Exmor CMOS sensor assures detail-packed Full HD pictures with a high horizontal resolution, ensuring every conference participant is seen clearly. High frame rate operation at 60fps delivers more natural, blur-free reproduction of moving subjects. Excellent low-light sensitivity makes the SRG-120DU ideal for use in dimly-lit meeting spaces. Unique to Sony, View-DR technology expands dynamic range for clear images under harsh backlighting with extremes of light and dark in the same scene. XDNR technology reduces image noise for crisp reproduction of still and moving objects in poorly-illuminated rooms, even when digital zoom is used.

The camera's wide field of view makes it easier to cover everyone in the room during videoconferences. Smooth, silent PTZ operation with 16 preset camera positions (when controlled via VISCA) makes it quick and easy to re-frame shots without disturbing presenter or other audience members. 12x optical zoom is boosted further by 12x digital zoom for high-quality close-ups of subjects far from the camera - such as a lecturer on the other side of a large auditorium.

Inclusion of a USB 3.0 interface allows high-speed data transfer of uncompressed 1080/60p video to a connected PC. For extra flexibility, the camera can also be controlled using VISCA command protocols over standard IP networks. The SRG-120DU can be controlled using VISCA command protocols over standard IP networks. PC control software allows remote adjustment of basic and advanced settings from a simple, intuitive interface.

Full HD image quality with 60fps frame rate
See every presenter or conference participant more clearly. The 1/2.8-type Exmor CMOS sensor captures smooth, crisply detailed, Full HD (1920 x 1080) images with extremely low noise - even in low light conditions where other cameras struggle. High frame rate (60fps) operation ensures smoother, more fluid reproduction of moving subjects.

Clearer pictures in any lighting conditions
Unique to Sony, View-DR technology expands dynamic range for clear images under harsh backlighting with extremes of light and dark in the same scene. XDNR technology reduces image noise for crisp reproduction of still and moving objects in poorly-illuminated rooms.

Get closer with powerful 12x optical zoom
The 12x optical zoom range is complemented by 12x digital zoom (total 144x High Power Zoom), for framefilling close-ups with every detail seen clearly. Responsive autofocus ensures that images stay clear and sharp, even at high zoom settings.

Simple connection with USB 3.0
Inclusion of a SuperSpeed USB 3.0 interface allows high-speed data transfer of uncompressed 1080/60p video to a connected PC. USB 3.0 plug & play
• Use standard UVC driver, no need to install drivers
• Usable with OS (Operating System) that supports USB 3.0 device.

Fast, quiet PTZ operation
The camera's quick, silent pan/tilt/zoom capabilities make it ideal for meeting rooms, classrooms and other noise-limited environments.

Wide field of view
See every conference participant in cramped meeting rooms with a wide 71-degree horizontal viewing angle.

VISCA over IP control
The SRG-120DU can be controlled via the VISCA protocol over IP network connections, as well as a RS-232. It is compatible with the Sony RM-IP10 IP Remote Controller to enable comfortable pan, tilt and zoom operation with a three-axis joystick.

Stylish, compact design
The camera's compact, space-saving design integrates neatly into offices and meeting rooms.

16 programmable presets
16 pre-programmable settings (controllable via VISCA) allow quick transition from one camera position to another. 6 presets can be accessed using the supplied IR remote commander.

What's in the box:

  • Sony SRG-120DU 2.1MP Full HD Remotely Operated PTZ Camera with USB 3.0
  • AC Power Adaptor
  • Power Cord
  • IR Remote Commander Unit
  • Original Box
