Used Sony UTX-M40 Wireless Handheld Cardioid Microphone Transmitter, UC90: 941 to 960 MHz

SKU: US2053421 MFR: UTX-M40/90
Earn VIP Reward Points

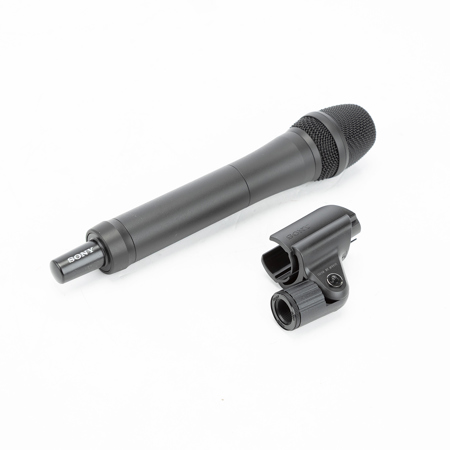

What`s in the box:

  • UTX-M40 Wireless Handheld Cardioid Microphone Transmitter
  • Microphone Holder
  • (Batteries Not Included)
See more

Key Features

  • Experience crystal-clear audio with this Sony wireless handheld microphone transmitter.
  • Capture every nuance with the UTX-M40's cardioid pattern, perfect for vocal performances.
  • Enjoy reliable wireless freedom with a long range, operating in the 941 to 960 MHz band.
  • Get up to 8 hours of battery life for extended use during events and presentations.
  • Achieve low latency and seamless sound with the crystal-controlled PLL synthesizer.
  • Set up quickly and easily for professional sound, ideal for interviews and stage use.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Sony UTX-M40 Specifications

  • Oscillator Type

    Crystal-controlled PLL synthesizer

  • Antenna Type

    1/4 Lambda wavelength wire antenna

  • Carrier Frequency

    UC90: 941 to 960 MHz

  • RF Output Power

    30mW/5mW selectable

  • Capsule Type

    Dynamic

  • Directivity

    Uni-directional

  • Reference Audio Input Level

    -55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)

  • Maximum Audio Input Level

    151 dB SPL (21 dB attenuation, using supplied microphone unit)

  • Audio Attenuator Adjustment Range

    0 dB to 21 dB (3 dB steps)

  • Frequency Response

    70 Hz to 18 kHz (Typical)

  • Signal-to-Noise Ratio

    60 dB (-60 dBV, 1 kHz sine wave input)
    102 dB (GAIN MODE set to AUTO GAIN, max deviation, A-weighted)
    96 dB (GAIN MODE set to NORMAL, max deviation, A-weighted)

  • Distortion

    0.9% or less (-60 dBV, 1 kHz input)

  • Audio Delay

    Approx. 0.35 ms

  • Tone Signal Frequency

    In UWP-D compander mode: 32.382 kHz
    In UWP compander mode: 32 kHz
    In WL800 compander mode: 32.768 kHz

  • Display

    OLED

  • Power Requirements

    DC 3.0 V (two LR6/AA size alkaline batteries)
    DC 5.0 V (supplied from USB Type-C connector)

  • Battery life

    Approx. 8 hours with output power of 30 mW
    Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 deg. C (77 deg. F)

  • Operating Temperature

    32 to 122 Degree F (0 to 50 Degree C)

  • Storage/Transport Temperature

    -4 to 131 Degree F (-20 to 55 Degree C)

  • Dimensions (Diameter x L)

    1.9 x 10.2" (48 x 258mm)

  • Weight

    9 oz (255g) (without Batteries)

About Sony UTX-M40 Wireless Handheld Cardioid Microphone Transmitter, UC90: 941 to 960 MHz

Just as high-resolution content becomes the norm in the video production industry, the need for superior audio quality is more crucial than ever. Catering to today's content creators, the UTX-M40 Wireless Handheld Cardioid Microphone Transmitter, UC90: 941 to 960 MHz, is a professional-grade solution designed to capture high-quality audio swiftly, reliably, and efficiently.

This innovative product from Sony, a trusted name in the electronics industry, offers exceptional sound quality, thanks to its advanced digital audio processing technology. This technology ensures a high-quality sound output with an improved transient response performance, making it an ideal choice for electronic news gathering (ENG), electronic field production (EFP), documentaries, and weddings.

The UTX-M40 Wireless Handheld Cardioid Microphone Transmitter also features an optional digital audio interface. This interface enables direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras via the SMAD-P5 Multi Interface MI shoe adapter. By bypassing A/D and D/A conversion stages, it further ensures excellent sound quality.

Sony's unique NFC SYNC feature is another highlight of this product. This user-friendly feature allows for quick, intuitive secure channel setting between the transmitter and receiver, making frequency setting a breeze.

The UTX-M40 Wireless Handheld Cardioid Microphone Transmitter is not only high-performing but also compact and lightweight. Its reduced system size and weight provide superior mobility, making it an ideal partner for a wide range of applications, including news, documentaries, weddings, and remote production. Its compact size and light weight make it an excellent companion for small camcorders and interchangeable lens digital cameras.

In conclusion, the UTX-M40 Wireless Handheld Cardioid Microphone Transmitter, UC90: 941 to 960 MHz, is a durable, high-quality, and reliable solution for all your professional audio transmission needs.

Sony UTX-M40 Wireless Handheld Cardioid Microphone Transmitter, UC90: 941 to 960 MHz Features

  • High quality sound with Sony digital audio processing
  • NFC SYNC function for quick and easy secure channel setting (IR sync capability with URX-P03, URX-P03D, and URX-S03D receivers)
  • Interchangeable head for wide choice of microphone capsules
  • Auto gain mode volume control
  • +15 dB gain volume boost mode for off-mic audio
  • Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
  • Variable muting function
  • Compatibility with Sony WL-800/UWP/UWP-D series
  • High visibility OLED display, ideal for indoor/outdoor use
