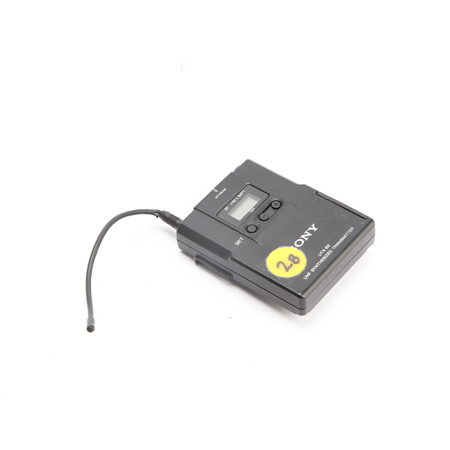

Sony UTXB2X UWP Series Bodypack Transmitter Microphone - Ch 30-33 SKU#1917659

Picture does not represent the actual item
See what's in the box

See all Sony items

Used Sony UTXB2X UWP Series Bodypack Transmitter with Uni-Directional Lavalier Microphone, Operating on UHF TV Channels 30 to 33

SKU: US1917659
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Used Sony UTX-B2 UHF Transmitter & URX-P2 UHF Diversity Tuner with Lavalier Microphone
undefined undefined: Picture 1 regular
Used Sony UTX-B03 Integrated Digital Wireless Bodypack Transmitter with Lavalier Microphone, UHF Channels 30/36 and 38/41: 566-608 & 614-638 MHz
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Sony UTXB2X Specifications

  • Oscillator

    Crystal-controlled PLL synthesizer

  • Type of emission

    F3E

  • Carrier frequencies

    566 MHz to 590 MHz (TV channels 30,31,32,33), users may choose from 188 frequencies

  • S/N Ratio

    60 dB or more(+/-5 kHz deviation at 1 kHz modulation, A-weighted)

  • RF power output

    30mW or 5mW (selectable)

  • Antenna

    1/4 wave length wire

  • Pilot tone signal

    32 kHz

  • Frequency response

    50 Hz to 18 kHz (typical)

  • Frequency Range

    566 MHz to 590 MHz (TV channels 30,31,32,33), users may choose from 188 frequencies

  • Reference deviation

    +/- 7 kHz (-60dBV, 1 kHz input)

  • Signal-to-noise ratio

    60 dB or more(+/-5 kHz deviation at 1 kHz modulation, A-weighted)

  • Audio Input Level

    - 60 dBV (at 0 dB attentuator level)

  • LCD Indicator

    Operating channel number/frequency, attenuator level, RF-output level (high-low), audio input status, transmitter battery status and accumulated operating time

  • Audio attenuator adjustment range

    0 to 21 dB (in 3 dB steps)

  • Local Oscillators

    Crystal-controlled PLL synthesizer

  • Microphone Capsule

    Electret condenser, uni-directional

  • Audio input connector

    3-pole mini jack (x1)

  • LED Indicator

    Power status

  • Tone Signal

    32 kHz

  • Type of Reception

    F3E

  • Battery life

    8 hours with Sony AA-size alkaline batteries

  • Power Requirements

    DC 3.0V (two AA-size alkaline batteries)

  • Dimensions

    2-1/2 x 3-1/4 x 3/4 inches (excluding antennas)

  • Weight

    5.1 oz including batteries

  • Warranty

    Sony warranty

About Sony UTXB2X UWP Series Bodypack Transmitter Microphone - Ch 30-33 SKU#1917659

The Sony UTXB2x UWP series compact and lightweight bodypack transmitter comes supplied with an uni-directional lavalier microphone. The UTX-B2x/3032 operates on UHF TV channels 30, 31, 32 and 33.

This bodypack transmitter (with uni lav mic) is ideally suited AV presentation applications.

Sony UTXB2X UWP Series Bodypack Transmitter Microphone - Ch 30-33 SKU#1917659 Features

  • Compact and lightweight design
  • Attenuator function allows adjustment of the audio-input level to suit each user's voice
  • Selectable RF output level: 5 mW (suitable for simultaneous multichannel operation) or 30 mW (for long distance transmission)
  • 8 hours of continuous operation with two AA-size alkaline batteries
  • LCD screen provides extensive set up information
  • 3-pole mini-jack input connector with lock mechanism accepts the output of supplied lavalier microphone

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sony UTXB2X UWP Series Bodypack Transmitter
  • Item Note: Battery Terminal Corroded. May Have addditional Issues. Cosmetic Condition is Average. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE. Missing Uni-Directional Lavalier Microphone; Belt Clip; Microphone Holder Clip; Windscreen
