Used Sound Devices MixPre-D Compact Field Mixer

SKU: US1959922 MFR: MIXPRE D
Earn VIP Reward Points

Key Features

  • Transformer-balanced mic/line selectable inputs
  • 48-volt or 12-volt phantom power
  • "Unclippable" input peak limiters, dualmono or stereo linked operation
  • Input panning to Left, Center or Right outputs
  • Mid-Side Stereo (MS) matrix
  • High-pass filters, 80Hz or 160Hz
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Overview
Compare
Q&A

Questions & Answers

Reviews about this item

Review Summary

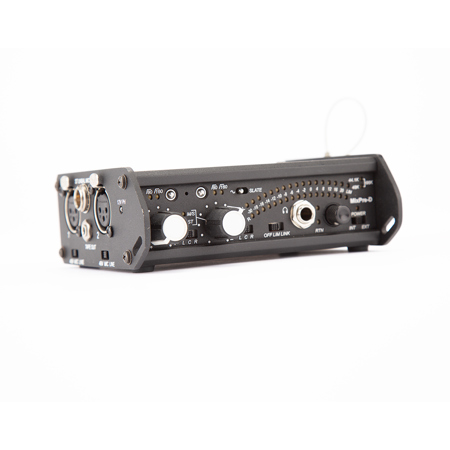

About Sound Devices MixPre-D Compact Field Mixer

The Sound Devices MiXPre-D sets a new standard for compact, high-performance portable audio mixers. Designed specifically for audio professionals needing the most flexible connectivity, the MiXPre-D is ideal for any production application where capturing great sound is important, but size and weight are a concern. At the heart of the MiXPre-D are two studio-grade mic/line inputs with limiters, high-pass fi lters and available phantom power.

To accommodate the increasing variety of cameras and devices used in production, the MiXPre-D has incredible output fl exibility. Outputs include balanced mic/line XLR, dedicated consumer mic-level on a locking TA3 connector (designed specifically for DSLR-type inputs) and an aux-level output on 3.5 mm connection. The "D" in MiXPre-D indicates the infusion of extensive digital technology for even more output flexibility. Digital outputs include balanced AES3 on XLR. Additionally USB audio connectivity is provided for Mac OS, Windows or Linux computers. The MiXPre-D is a flexible class-compliant USB audio interface.

A wide range of additional features in the MiXPre-D make it a perfect complement to larger mixers, such as the Sound Devices 302 Compact Production Field Mixer and 552 Portable Production Mixer. These features include: MS stereo matrix, tone oscillator, internal slate microphone, return monitoring of both analog and USB audio, high-gain headphone output and two-AA battery or external 10-17 VDC powering. The MiXPre-D continues the heritage of Sound Devices original MiXPre, which has been the go-to mixer for audio professionals that need the lightest, simplest and highest performance mixer available.

Sound Devices MixPre-D Compact Field Mixer Features

  • Transformer-balanced mic/line selectable inputs
  • 48-volt or 12-volt phantom power
  • "Unclippable" input peak limiters, dualmono or stereo linked operation
  • Input panning to Left, Center or Right outputs
  • Mid-Side Stereo (MS) matrix with width control and front-panel channel fl ip
  • Return can be used as ch3/ch4 aux-level inputs, selectable pan and level control
  • High-pass filters, 80Hz or 160Hz
  • Slate microphone and tone oscillator
  • Mic/Line/AES digital selectable outputs, digital SR of 44.1k, 48k, 96k
  • USB streaming audio output for interconnection with Mac OS, Windows, Linux and iOS devices
  • Dedicated mic-level output on locking TA3 connector for unbalanced camera inputs
  • Headphone monitoring of program audio or external return audio
  • Sunlight-viewable, 16-segment GaN LED output meter with adjustable brightness
  • Internal battery-power from two AA
  • External power input, 10-17 VDC
  • High-strength, extruded aluminum chassis with metal connectors

Warranty Information

This used item has a FREE 90-day warranty. See details.

Key Features

  • Transformer-balanced mic/line selectable inputs
  • 48-volt or 12-volt phantom power
  • "Unclippable" input peak limiters, dualmono or stereo linked operation
  • Input panning to Left, Center or Right outputs
  • Mid-Side Stereo (MS) matrix
  • High-pass filters, 80Hz or 160Hz
