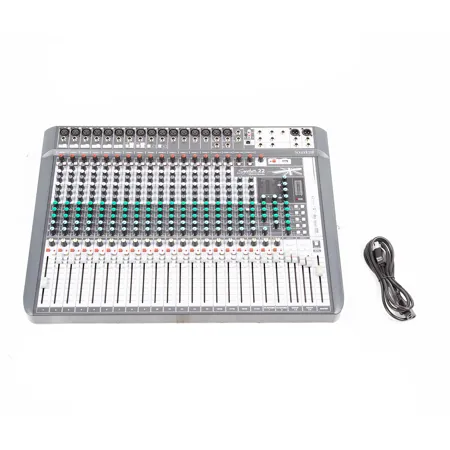

Used Soundcraft Signature 22 22MTK Channel Multi-Track Analog Mixer with Effects, 2 Input/2 Output USB Recording

SKU: US1921296 MFR: 5049563
Earn VIP Reward Points

Key Features

  • Achieve pristine sound with 16 high-headroom Ghost Preamps on this 22-channel mixer.
  • Shape your sound with precision using the Soundcraft's Sapphyre 4-band EQ control.
  • Record and playback with the integrated 2x2 USB interface for seamless recording sessions.
  • Enjoy ultra-low noise performance, perfect for critical recording and live sound applications.
  • Harness the power of dual Lexicon effects engines for studio-quality reverb and delay.
  • Compact size and robust build make this 22-channel mixer ideal for any live performance.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Soundcraft Signature 22MTK Mixer Specifications

  • Channels

    22

  • Ghost Preamps

    16

  • Sapphyre EQ

    4-band (2 bands of swept mids)

  • Input Limiter

    dbx: 8

  • Lexicon Effects

    Dual Engine

  • USB Interface

    2x input
    2x output

  • Auxes

    5

  • Subgroup Outputs

    4 mono/2 stereo

  • Faders

    100mm / 3.94"

  • Frequency Response

    Mic / Line In to any Output: +/-1.5dB, 20Hz-20kHz

  • T.H.D

    Mono Mic Sensitivity -30dBu, Input level -16dBu, +14dBu at Mix output: < 0.002% at 1kHz
    Stereo Mic Sensitivity -30dBu, Input level -16dBu, +14dBu at Mix output: < 0.007% at 1kHz

  • Noise

    Mono Mic Input E.I.N. (max gain): <-126dBu (150 Ohms source)
    Stereo Mic Input E.I.N. (max gain): <-124dBu (150 Ohms source)

  • Crosstalk

    At 1kHz: Channel Mute: >-90dB

    Fader Cut-off (rel +10 mark): >-90dB
    Aux Send Pots Offness: >-82dB

  • EQ (Mono inputs)

    HF: 12kHz, +/-15dB
    MF (swept): 140Hz - 3kHz, +/-15dB
    LF: .60Hz, +/-15dB

  • EQ (Stereo inputs)

    HF: 12kHz, +/-15dB
    MF: 1kHz, +/-15dB
    LF: 60Hz, +/-15dB

  • Input & Output Levels

    Mic Input: +12.5dBu max
    Line Input: >+26dBu max
    Stereo Inputs: >+26dBu max
    Mix Output: +21.5dBu max
    Headphones (at 150 Ohms): 300mW

  • Input & Output Impedances

    Mic Input: 1.2kOhms
    Hi-Z Input: 968kOhms
    Line Input: 10kOhms
    Stereo Input: 21.5kOhms
    Outputs: 150 Ohms (balanced), 75 Ohms (unbalanced)

  • Multi-channel USB Audio

    Inputs/Outputs: 24-in, 22-out
    Bit Depth: 16-bit, 24-bit
    Sampling rate: 44.1kHz / 48kHz

  • Temperature Range

    5 to 40 deg. C / 41 to 104 deg. F

  • Power Consumption

    < 120VA

  • Dimensions (W x H x D)

    750 x 630 x 210mm / 29.53 x 24.80 x 8.27"

  • Weight

    11.36kg / 25.04lbs

About Soundcraft Signature 22 22MTK Channel Multi-Track Analog Mixer with Effects, 2 Input/2 Output USB Recording

While leveraging over four decades of expertise in live sound mixing, the Signature 22 22MTK Channel Multi-Track Analog Mixer with Effects and 2 Input/2 Output USB Recording interface combines the exceptional British sound of Soundcraft with a high-quality analog mixer. This versatile device is ideal for recording live performances, studio rehearsals, band mixing, or producing demos, delivering exceptional sound quality through its high-grade Ghost preamps, the industry's most musical EQ, pristine Lexicon effects, and powerful dbx dynamics.

This high-performance 22-input small format analog mixer is equipped with onboard effects and multi-track USB recording and playback capabilities. It features a 24-in/22-out ultra-low latency USB playback and recording interface, ensuring seamless audio capture and playback. The mixer incorporates Soundcraft's iconic Ghost mic preamps, renowned for their ultra-low noise performance and high headroom, delivering wide dynamic range, exceptional resolution, and clarity.

The Signature 22 22MTK Mixer is also equipped with the renowned Soundcraft Sapphyre British EQ, offering sweepable mid-bands per channel for precise sound equalization. The built-in Lexicon Effects Engine features award-winning reverbs, delays, choruses, and modulations, adding depth and dimension to your audio. Additionally, the mixer includes dbx limiters on input channels, switchable Hi-Z inputs for guitars and other instruments, and Hi-Pass Filters and 48V Phantom Power on all mic channels.

The comprehensive Soundcraft GB series audio routing with flexible pre/post switching on Auxes and subgroups, dedicated outputs, and smooth premium-quality 100mm faders contribute to the mixer's superior audio control. The robust metal construction ensures tour-grade build quality and reliability, while the internal universal power supply provides consistent performance.

The Signature 22 22MTK Mixer's multi-track USB audio interface allows the integration of any VST/AU/AAX/TDM/RTAS plug-ins on any input channel, enabling studio plug-ins to be seamlessly integrated with live performances. The console also offers free downloads of the Lexicon MPX-L native plug-in and Ableton Live 9 Lite, enhancing your audio production capabilities.

The mixer is designed to deliver pristine recordings, with an ultra-low-latency USB interface that flawlessly captures every channel, which can then be mixed or transferred to a DAW for further mixdown and production. The console offers XLR and switchable Hi-Z inputs that enable guitars, basses, and other instruments to be directly connected.

The Soundcraft Signature 22 22MTK Mixer features GB Series audio routing with flexible pre/post switching on each Aux and subgroups, offering powerful routing and switching options as well as dedicated outputs. Built using tour-grade robust metal construction and top-quality components, the mixer ensures durability and long-lasting performance.

Soundcraft Signature 22 22MTK Channel Multi-Track Analog Mixer with Effects, 2 Input/2 Output USB Recording Features

  • High-Performance 22-input small format analogue mixers with onboard effects
  • Iconic Soundcraft Ghost mic preamps with ultra-low noise performance
  • Renowned Soundcraft Sapphyre British EQ with sweepable mid-bands per channel
  • Lexicon Effects Engine featuring award-winning Reverbs, Delays, Choruses and Modulations
  • dbx Limiters (High-ratio Compressors) on input channels
  • 2-in/2-out USB audio playback and recording
  • Switchable Hi-Z inputs for guitars, basses and other instruments
  • Hi-Pass Filters (low-cut) and 48V Phantom Power on all mic channels
  • Comprehensive Soundcraft GB Series audio routing
  • Smooth premium-quality faders
  • Robust metal construction for tour-grade build quality and reliability
  • Internal universal power supply

Warranty Information

This used item has a FREE 90-day warranty. See details.

Key Features

  • Achieve pristine sound with 16 high-headroom Ghost Preamps on this 22-channel mixer.
  • Shape your sound with precision using the Soundcraft's Sapphyre 4-band EQ control.
  • Record and playback with the integrated 2x2 USB interface for seamless recording sessions.
  • Enjoy ultra-low noise performance, perfect for critical recording and live sound applications.
  • Harness the power of dual Lexicon effects engines for studio-quality reverb and delay.
  • Compact size and robust build make this 22-channel mixer ideal for any live performance.
