Used SoundTube IPD-SM52-EZ 5.25" 2-Way IP-Addressable and Dante-Enabled Surface Mount Speaker, 50W RMS, White, Single

SKU: US1534821

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

SoundTube IPD-SM52-EZ Specifications

  • System Type

    5.25", coaxial, surface-mount, ported, Dante IP Controlled

  • Frequency Response

    65 Hz - 20 kHz (-3 dB)
    Sealed: 80 Hz - 20 kHz (-3 dB)
    55 Hz - 20 kHz (-10 dB)
    Sealed: 62 Hz - 20 kHz (-10 dB)

  • Max. SPL

    At 1M RMS: 97.0 dB

  • Coverage Angle

    91 deg. horizontal / 120 deg. vertical (-6 dB at 2 kHz)
    70 deg. horizontal / 110 deg. vertical (-6 dB at 10 kHz)
    95 deg. horizontal / 100 deg. vertical (Avg. 2 to 10 kHz)

  • Aiming Angle

    0 deg. -90 deg.

  • Directivity Factor (Q)

    6.9 (averaged 100hz-10khz); 5.9 (2kHz)

  • Directivity Index (DI)

    5.2 (averaged 100hz-10khz); 7.7 (2kHz)

  • Frequency Driver

    Low-Frequency Driver: 1 x 133.0mm (5.25") polypropylene cone, butyl rubber surround
    High-Frequency: 25.0mm (1" ) soft dome tweeter

  • Low-Frequency Voice Coil

    25.4mm (1") high temperature Kapton

  • Crossover Frequency

    3.5 kHz

  • Network Type

    Low-Pass: 12 dB per octave, 2nd order
    High-Pass: 12 dB per octave, 2nd order

  • Enclosure Material

    High Impact Poly Styrene (HIPS)

  • Grille

    Aluminum with powder-coat finish

  • Inputs

    RJ45 Ethernet Port

  • Regulatory

    UL 60065 planned; CE Approved

  • RoHS

    Approved

  • IP65 (sealed version)

    Approved

  • Dimensions (HxWxD)

    Without Bracket: 301.8 x 190.5 x 168.4mm (11.88 x 7.50 x 6.63")

  • Weight

    3.35kg (7.4 lbs)

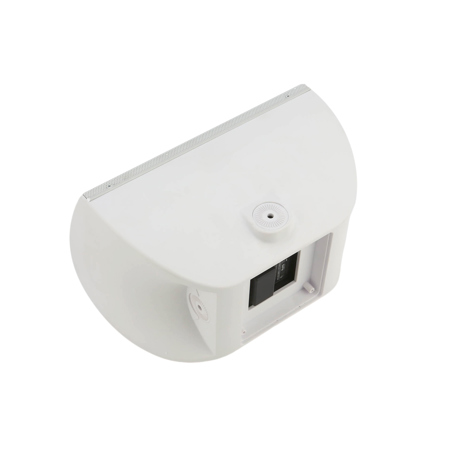

About SoundTube IPD-SM52-EZ 5.25" IP-Addressable/Dante-Enabled Speaker, White, Single

Where modern design meets superior sound quality, the IPD-SM52-EZ 5.25" 2-Way IP-Addressable and Dante-Enabled Surface Mount Speaker stands out. This sleek and stylish speaker, crafted by the reputable brand Soundtube, is a testament to high-quality audio equipment.

Designed for seamless integration into IP addressable audio networks on the Dante platform, this speaker is a versatile addition to any home or commercial audio system. It features a robust 5.25" polypropylene woofer and a 1" soft dome tweeter, housed in an elegant, injection-molded enclosure.

The IPD-SM52-EZ delivers a broad frequency response of 55 Hz - 22 kHz (-10 dB), ensuring consistent, high-frequency dispersion. This is made possible through SoundTube's proprietary BroadBeam Ring technology, which enhances the audio experience by providing a full frequency dispersion pattern and high sensitivity.

Power, audio, and control are conveniently delivered to the speaker via a CAT5 or CAT6 cable. The connection on the other end is made to the STNet-Switch, which provides 40W PoE (Power over Ethernet) to each speaker. This allows for easy configuration of the speaker via software and immediate reporting of any operational issues through SoundTube monitoring software.

The IPD-SM52-EZ is not only designed for indoor use but is also suitable for damp outdoor environments. It's perfect for background to mid-level SPL surface-mount applications. The system includes a detachable mounting bracket, making it ideal for pre-mounting in surface-mounting applications.

Whether it's for music or paging in retail, amusement, restaurant, airports, hotels, schools, or casinos, this speaker delivers exceptional sound quality. It's a testament to SoundTube Entertainment and the MSE Audio Group's commitment to developing innovative technologies that enhance audio product performance. Their innovations are protected by multiple U.S. and international patents, ensuring the quality and uniqueness of their dome, enclosure, and dispersion technologies.

In conclusion, the IPD-SM52-EZ 5.25" 2-Way IP-Addressable and Dante-Enabled Surface Mount Speaker is a high-quality, elegant, and modern audio solution for any setting.

SoundTube IPD-SM52-EZ 5.25" IP-Addressable/Dante-Enabled Speaker, White, Single Features

  • STNet IP-addressable, self powered (PoE) speaker
  • Dante I/O for interconnectivity with Dante-enable audio systems
  • BroadBeam Ring delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker
  • One 5.25" (133mm) polypropylene woofer and one 1" (25mm) soft dome tweeter
  • Fast connection of power, audio and control functions via one CAT5 or CAT6 cable
  • 40W PoE provided by SoundTube STNet Switch; also works with Standard PoE plus and PoE switches
  • Provides report-back on any problems via SoundTube software
  • Aluminum grille with powder-coat finish
  • Vertical and horizontal mounting offer precision aiming for indoor and outdoor applications
  • High-quality white paint finish

What's in the box:

  • SoundTube IPD-SM52-EZ 5.25 " 2-Way IP-Addressable and Dante-Enabled Surface Mount Speaker
  • Safety Cable with Speaker Mounting Bolt
  • All Mount Bracket
  • Port Plug
  • Allen Wrench and Watertight Strain-Relief Bushing
  • Original Box
  • Item Note: Missing mounts
