Used Swellpro SplashDrone 4 Multi-Functional Waterproof Drone

SKU: US1809909 MFR: CP01.005
Earn VIP Reward Points

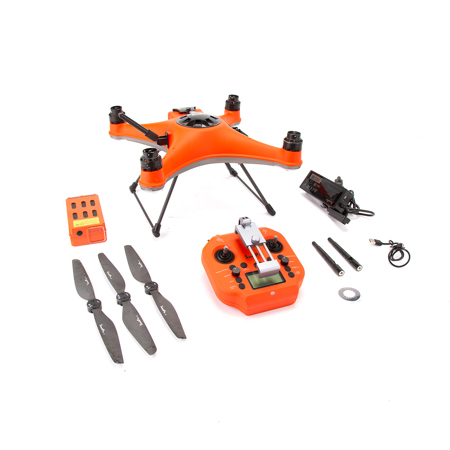

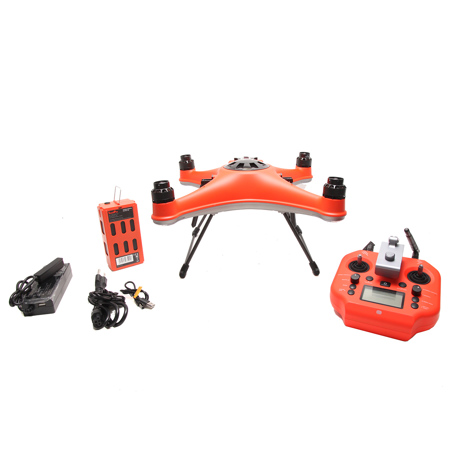

What`s in the box:

  • 1x Swellpro SplashDrone 4 Aircraft
  • 1x Remote Controller
  • 2x Propellers (Pair)
See more

Key Features

  • Innovative waterproof drone designed for multi-purpose operation in any environment
  • Equipped with IP67 seawater-proof body and IP66 waterproof remote controller
  • Features "Smooth+" flight control for professional, steady flight control
  • Offers a clear and reliable image and control signal range of over 5km
  • Accompanied by the SwellPro Navifly APP for mission logging, planning, and recording
See More Product Details
Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Swellpro SplashDrone 4 Specifications

General

General

Jump to...
  • Number of Rotors

    4

  • Configuration

    Drone Only

  • Edition

    Standard Edition

  • FAA Registration (Non-Commercial Usage)

    Required

  • Features

    IP Rated

  • Kit Style

    Base

  • Model

    Swellpro SplashDrone 4

  • Skill Level

    Pro

Aircraft

Jump to...
  • Color

    Orange

  • Maximum Flight Time

    30 Minutes (no wind & no load) (approx. 25 Minutes with GC3-S, approx.15 Minutes with load of 1.5kg)

  • Max Ascent/Decent Speed

    Ascent: 4m/s
    Descent: 4m/s

  • Max Wind Speed Resistance

    8 m/s (11-16knots)(F4); 14 m/s (F7) peak gust

  • Max Takeoff Altitude

    120m (GPS) / ATTI - no limitation

  • Max Tilt Angle

    12.5 Degree (ATTI); 25 Degree (ATTI fast)

  • Max Flight Distance

    5.0km

  • Global Navigation Satellite System (GNSS

    Drone: GPS/GLONASS

  • Hovering Accuracy Range

    +/-0.5 m (vertical); +/-0.5 m (horizontal)

  • IP Rating

    Drone: IP67
    Remote Controller: IP66

  • Camera Still Resolution

    None

  • Gimbal Option

    No Gimbal

Video Transmission

Jump to...
  • Live View Quality

    App: 720p@30fps

  • Operating Frequency

    5180 - 5875 MHz (Aircraft, Remote Control, Mobile Device Connection)

  • Transmitter Power (EIRP)

    FCC/IC <= 24 dBm CE/SRRC/MIC <= 20 dBm (Aircraft, Remote Control)

  • Max Transmission Distance

    10m (Unobstructed, free of interference)

  • Lowest Latency

    Remote Control: 200 ms (It depends on the actual shooting environment and mobile devices)

    App: < 250 ms (depending on environmental conditions and mobile devices)

Battery

Jump to...
  • Capacity

    Intelligent Battery: 6600mAh

  • Voltage

    Intelligent Battery: 14.8V

  • Battery Material

    Lithium ion

  • Battery Quantity

    1

Remote Controller

Jump to...
  • Remote Controller

    with Remote Controller

  • Max Operating Time

    7 hours

  • Operating Temperature

    14 Degree F - 104 Degree F (-10 Degree C - 40 Degree C)

Physical

Jump to...
  • Dimensions

    Aircraft:
    379.2 x 379.2 x 39.3mm (Propellers excluded)

    Intelligent Battery:
    6.04 x 3.2 x 1.90" (153.6 x 82.4 x 48.3mm)

  • Weight

    Aircraft:
    4.80 lbs (2.18kg) (Include battery and propellers)

    Intelligent Battery:
    25.9 oz (735g)

10 Accessories for Swellpro SplashDrone 4 Multi-Functional Waterproof Drone

  • All Accessories (10)
  • Cameras (3)
  • Drone Accessories (1)
  • Batteries & Power Supply (2)
  • Propellers & Guards (1)
  • Landing Gear (1)
  • Light And Light Accessories (1)
  • Safety & Security Accessories (1)

About Swellpro SplashDrone 4 Multi-Functional Waterproof Drone

Let the SplashDrone 4, a multi-functional waterproof drone, elevate your aerial photography and videography experience. This 5th generation waterproof drone is a testament to SwellPro's 7 years of expertise in drone waterproofing technology. Designed for versatile operation in any harsh environment, the SplashDrone 4 sets a new standard for waterproof drones with its all-new IP67 seawater-proof body.

Constructed from industrial-grade ABS, the sturdy, rigid fuselage of the SplashDrone 4 is meticulously factory-sealed and air-pressure tested to ensure 100% waterproofing. The waterproof motors and internal electronics are further protected with a corrosion-resistant coating, enhancing the drone's durability and longevity.

The SplashDrone 4's floating design allows for all-weather flying, including in rain and snow. The all-new IP66 waterproof remote controller is equipped with built-in GPS, offering features like real-time tracking and dynamic return to pilot. It also supports multiple device connections for collaborative operation.

The drone's multi-functional payload system and open interface design allow for quick adaptation to various tasks. The patented "Smooth+" flight control enables fine-tuning of the drone's Roll and Yaw, making professional, steady flight control as easy as turning the knobs.

The SplashDrone 4 is equipped with a 5.8GHz digital image transmitter and adjustable antennas, ensuring a clear and reliable image and control signal range of over 5km. The Power-Flip feature allows the drone to return to its normal state if it turns upside down on the water.

The SplashDrone 4's unrivaled-performance propulsion system, featuring a powerful 740Kv Motor and 40A ESC, ensures tight, responsive control in challenging weather conditions. The drone's smart battery, with an internal battery management system, provides up to 30 minutes of flight time.

The SwellPro Navifly APP enables logging, planning, and recording of missions, as well as control and parameter setting of cameras and other modules in flight. The SplashDrone 4 also offers an API for third-party software integration, making it a truly multi-purpose and multi-functional platform for your aerial photography and videography needs.

Swellpro SplashDrone 4 Multi-Functional Waterproof Drone Features

  • IP67 seawater proof body
  • IP66 Waterproof remote controller
  • 5km image transmission
  • Automatic power flip
  • 2kg payload capacity
  • 30 min flight time
  • Slide-in smart battery
  • Dynamic return to pilot

Key Features

  • Innovative waterproof drone designed for multi-purpose operation in any environment
  • Equipped with IP67 seawater-proof body and IP66 waterproof remote controller
  • Features "Smooth+" flight control for professional, steady flight control
  • Offers a clear and reliable image and control signal range of over 5km
  • Accompanied by the SwellPro Navifly APP for mission logging, planning, and recording
