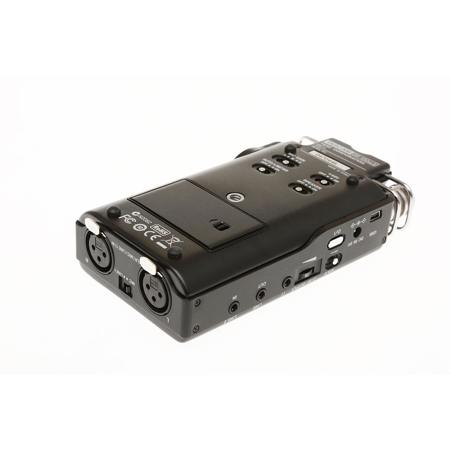

Tascam DR-100 MArk II Portable 2-Channel Linear PCM Recorder - SKU#1385648

Picture does not represent the actual item
See what's in the box

See all Tascam items

Used Tascam DR-100 MArk II Portable 2-Channel Linear PCM Recorder, Built-in Speaker, USB

SKU: US1385648
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Tascam DR-60D MKII Portable Recorder for DSLR
undefined undefined: Picture 1 regular
Tascam DR-05XP 2-Channel 32-Bit Float Portable Handheld Audio Recorder with USB-C Interface
undefined undefined: Picture 1 regular
Tascam DR-10L Pro 32-Bit Float Portable Digital Audio Recorder with Lavalier Microphone, Black
undefined undefined: Picture 1 regular
Tascam DR-07XP 2-Channel 32-Bit Float Portable Handheld Audio Recorder with USB-C Interface
undefined undefined: Picture 1 regular
Tascam DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras
undefined undefined: Picture 1 regular
Tascam DR-40XP 4-Channel 32-Bit Float Portable Handheld Audio Recorder with USB-C Interface
undefined undefined: Picture 1 regular
Tascam DP-006 6-Track Digital Multitrack Recorder
undefined undefined: Picture 1 regular
Tascam DP-24SD 24 Track Complete Digital Studio Recorder
undefined undefined: Picture 1 regular
Tascam DA-6400DP 64-Channel Digital Multitrack Recorder with Duel-Power Supply
undefined undefined: Picture 1 regular
Tascam FR-AV2 32-Bit Float Field Recorder and Timecode Generator with Mixer
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Tascam DR-100 Mark II Recorder Specifications

  • Recording Media

    SD card (64MB-2GB), SDHC card (4GB-32GB)

  • File System

    FAT16/32

  • File Format

    WAV, MP3

  • Recording/Playback Format: WAV

    44.1/48/96 (HS mode) kHz, 16/24-bit

  • Recording/Playback Format: MP3

    44.1/48kHz, 32/64/96/192/256/320kbps

  • Number of Channels

    2 channels (stereo)

  • Playback Speed Control (VSA)

    -50% - +16% (1% step)

  • MIC/LINE 1 IN (Phantom Power Compatible)

    XLR-3-31 (1: GND, 2: HOT, 3: COLD)

  • MIC: Input Impedance

    2.1kOhms

  • MIC: Nominal Input Level

    -14dBu

  • MIC: Maximum Input Level

    +2dBu

  • LINE 1: Input Impedance

    2.5kOhms

  • LINE 1: Nominal Input Level

    +4dBu

  • LINE 1: Maximum Input Level

    +24dBu

  • LINE 2 IN: Connector

    1/8" (3.5mm) stereo mini jack

  • LINE 2 IN: Input Impedance

    22 kOhms or more

  • LINE 2 IN: Nominal Input Level

    -10dBV

  • LINE 2 IN: Maximum Input Level

    +6dBV

  • LINE OUT: Connector

    1/8" (3.5mm) stereo mini jack

  • LINE OUT: Output Impedance

    200 kOhms

  • LINE OUT: Nominal Output Level

    - 14dBV

  • LINE OUT: Maximum Output Level

    +6dBV

  • Headphone Output

    1/8" (3.5mm) stereo mini jack

  • Connector

    25mW+25mW (With 32Ohms headphone connection)

  • Maximum Output

    25mW+25mW (With 32Ohms headphone connection)

  • Built-in Speaker

    0.4W (mono)

  • Digital Input

    3/32" (2.5 mm) TRS jack (using the conversion cable made for this unit)

  • Digital Input Format

    IEC60958-3 (S/PDIF)

  • USB

    Mini-B type

  • USB Format

    USB2.0 HIGH SPEED mass storage class

  • REMOTE

    3/32" (2.5 mm) TRS jack

  • Power Supply

    Lithium-ion rechargeable battery made for this unit (TASCAM BP-L2)
    Two AA batteries (Alkaline or Ni-MH batteries)
    AC adaptor (TASCAM PS-P520, sold separately)
    External battery pack (TASCAM BP-6AA, sold separately)

  • Power Consumption

    4W (maximum)

  • Battery Life

    Lithium ion batteries (BP-L2): Built-in mics (UNI/OMNI)
    About 5 hours (Recording WAV, 44.1kHz, 16 bit
    Ni-MH batteries (eneloop): Built-in mics (UNI/OMNI) About 4 hours (Recording WAV, 44.1kHz, 16 bit)

  • Operating Temperature range

    32-104Deg. F / 0-40Deg.C

  • Frequency response

    20-20kHz +1/ - 3dB (EXT IN-LINEOUT, Fs44.1kHz, JEITA)
    20-22kHz +1/ - 3dB (EXT IN-LINEOUT, Fs48kHz, JEITA)
    20-40kHz +1/ - 3dB (EXT IN-LINEOUT, Fs96kHz, JEITA)

  • Distortion

    Less than 0.01% (XLR LINE 1 IN-LINE OUT, Fs44.1kHz, +24dBu input, JEITA)

  • S/N Ratio

    92dB or more (XLR LINE 1 IN-LINE OUT, Fs44.1kHz, +24dBu input, JEITA)

  • Computer Requirements

    Windows:
    OS: Windows XP
    Windows Vista
    Windows 7
    CPU/Clock: Pentium 300MHz or better
    Memory: 128MB or more
    USB Port: USB2.0 recommended
    MAC:
    OS: Mac OS X 10.2 or later
    CPU/Clock: Power PC, iMac, G3, G4, G5 266MHz or more
    Memory: 64MB or more
    USB Port: USB2.0 recommended

  • Dimensions (W x H x D)

    3.15 x 6.02 x 1.38 inches / 80 x 153 x 35 mm

  • Weight

    10.23 oz / 290g (without batteries)

About Tascam DR-100 MArk II Portable 2-Channel Linear PCM Recorder - SKU#1385648

The Tascam DR-100MKII is portable stereo digital audio recorder designed with high-end recording features aimed at musicians and engineers. The four built-in microphones, two cardioid and two omnidirectional, deliver great sound via the high-gain and low noise microphone preamps. A pair of XLR inputs can accommodate external microphones and provide switchable phantom power for use with condenser microphones.

The 24-bit/96kHz linear PCM recorder features dedicated stereo mini balanced line in and out connectors in addition to an S/PDIF digital input. Also available is the ability to connect balanced line inputs via the locking XLR connectors.

Tascam DR-100 MArk II Portable 2-Channel Linear PCM Recorder - SKU#1385648 Features

  • Portable four-microphone, two-channel handheld audio recorder
  • Improved uni-directional and omni-directional microphones over original DR-100
  • High gain and low noise microphone preamp
  • Up to 24-bit/96kHz WAV recording
  • 32 to 320kbps MP3 recording
  • Dual XLR inputs with locking latches
  • +4dBu line input available via XLR jacks
  • 1/8" TRS line input and output
  • S/PDIF input from an external device via remote jack
  • Limiter and low-cut filter
  • Variable playback speed from -50% to +16%
  • Records to SD or SD-HC cards (includes 2GB card)
  • Large thumbwheel for individual gain control
  • Dedicated back-panel switches
  • Built-in speaker
  • Tripod mount
  • Rugged aluminum casing

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Tascam DR-100 Mark II Portable 2-Channel Linear PCM Recorder
  • Li-ion Battery
  • USB Cable
  • Item Note: Missing 2GB SD Card; Missing RC-10 Remote Control; Missing Windscreen; Missing Carry Case.
