Tascam SD-20M Digital Recorder - a great unit in a small footprint

I bought this Recorder mostly on the Tascam name.. It is a real good piece of equipment and I use it a lot. The only drawback of this unit is you can't rename your recorded files. The unit names them Tascam0001 Tascam0002 and so on. you will have to keep a record of the Tascam name that pertains to the file recorded or the SD Card can be copied to a computer and the files can be renamed there. An inconvienience but do-able. I highly recommend this recorder for price, quality and useability. It records on an SD card of any size up to 128gb for storage. Michael P

Michael P.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Tascam SD-20M Recorder Specifications

  • Recording media

    SD card (64MB - 2GB), SDHC card (4GB - 32GB), SDXC card (48GB - 128GB)

  • WAV: Sampling frequency

    44.1k/48k/96k Hz

  • WAV: Quantization bit rate

    16/24 bit

  • MP3: Sampling frequency

    44.1k/48k Hz

  • MP3: Playback bit rate

    64k - 320k bps

  • Number of channels

    4-channel (2 Stereo / 4 Monaural)

  • Analog audio inputs: Balanced

    Connector: XLR-3-31 (1:GND, 2:HOT, 3:COLD) 6.3mm(1/4")TRS standard jack

  • Analog audio inputs: Line In

    Input Impendance: 10k ohms
    Standard input level: +4dBu
    Minimum input level: +20dBu
    Maximum Input Level: -6dBu or more

  • Analog audio inputs: Mic In

    Input Impendance: 2.7k ohms
    Minimum input level: +0dBu (GAIN at "Low")
    Maximum Input Level: -67dBu or more (GAIN at "High")

  • Analog audio inputs: Unbalanced

    Connector: RCA pin jacks
    Output impedance: 200Ohms
    Standard output level: -10dBV

  • Remote: Connector

    2.5mm TRS jack

  • Phones: Connector

    6.3mm(1/4")stereo phone jack

  • Phones: Maximum output level

    20mW + 20mW (32ohms load, THD+N:less than 0.1%)

  • Frequency response

    20 - 20kHz +0.5dB/-3dB (JEITA)

  • THD

    0.01% or less

  • S/N ratio

    100dB or more (JEITA)

  • Dynamic range

    100dB or more (JEITA)

  • Interchannel crosstalk

    100dB or more (JEITA)

  • Power

    Dedicated AC adapter (PS-P1220E, included), 4x AA batteries

  • Power consumption

    5W (maximum)

  • Input Current

    1 A (maximum)

  • Operating temperature

    5 to 35 deg. C / 41 to 95 deg. F

  • Dimensions (W x H x D)

    483 x 45 x 299.6mm / 19.02 x 1.77 x 11.80"

  • Weight

    Without Battery: 2.7kg / 5.95lbs
    With Battery: 2.8kg / 6.17lbs

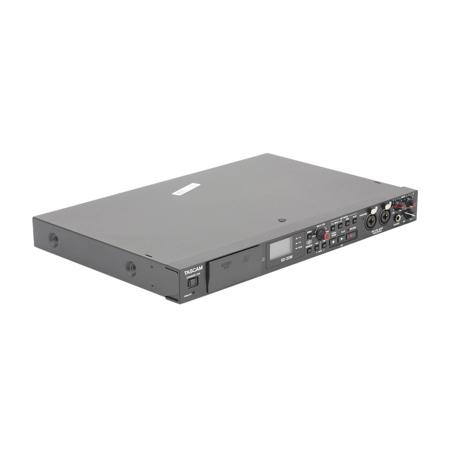

About Tascam SD-20M 4-Track Solid-State Recorder - SKU#1787051

Tascam SD-20M 4-Track Solid-State Recorder - SKU#1787051 Features

  • XLR/TSR combo microphone inputs on the front panel
  • Four-track recorder capable of simultaneously recording from both the mic inputs and line inputs
  • Dual recording function captures a copy of your audio at a lower level, for a distortion-proof safety track
  • Can record a copy of the audio at a lower level according to the set audio recording level. This allows for a backup recording in case of distortion from unexpected loud noises
  • In addition to the AC adapter, it can also operate using four AA batteries, which allows for recording to continue even if AC power is lost
  • Compatible with SD, SDHC and SDXC media
  • SDXC media slot supports up to 128 GB cards for long recordings
  • High-resolution recording up to 96kHz/24-bit in WAV/BWF format
  • MP3 format for making long recordings
  • Equipped with a Tempo change (VSA) function for adjusting the speed from 0.5 to 1.5 times (in 0.1 increments), which is great for language study
  • XLR/TRS combo locking balanced inputs - mic level with switchable +48V phantom power, and +4 dBu line level (TRS) for balanced input from mixers, etc
  • RCA inputs compatible with -10dBV line level unbalanced input from mixers, etc
  • Auto recording function that can detect the sound input signal level and automatically start recording
  • Low-cut filter with three levels (40, 80, and 120 Hz)
  • Compatible with Japanese language display
  • Mounts in a single rackspace

What's in the box:

  • Tascam SD-20M 4-Track Solid-State Recorder
  • AC Adapter
  • Item Note: Missing Rack-Mount Screw Kit
