Telex BP-325 Specifications

  • Channel Supplied Power Requirements

    30V DC nominal (standard RTS line), 65 to 85 mA

  • Storage Temperature

    -20 deg. C to 80 deg. C; 0% to 95% humidity, noncondensing

  • Operating Temperature

    0 deg. C to 50 deg. C; 0% to 95% humidity, noncondensing

  • Exterior

    Polystyrene and polycarbonate mix; gray textured main body

  • Impedance Across Intercom Line

    10000Ohms typical

  • Ambient Temperature Range: Operating

    0 deg. C to 50 deg. C

  • Ambient Temperature Range: Storage

    -40 deg. C to 125 deg. C

  • Noise Contribution to 200Ohms Line

    -75dBu

  • Maximum Input Level

    +20dBu

  • Nominal Input Level

    -10 to +8dBu

  • Frequency Response

    100Hz to 12kHz, +/-3dB

  • Monaural Dynamic-mic Headset Connector

    XLR-4-31 receptacle (J13)
    Pin 1: Microphone low
    Pin 2: Microphone high
    Pin 3: Common
    Pin 4: Headphone high

  • Stereo Dynamic-mic Headset Connector

    XLR-5-31 receptacle (J14)
    Pin 1: Microphone low
    Pin 2: Microphone high
    Pin 3: Common
    Pin 4: Headphone left high
    Pin 5: Headphone right high

  • Carbon-mic Headset Connector (J1)

    1/4", 3-conductor Phone Jack

  • Carbon-mic Connector (J1) for Headset

    Tip: Carbon microphone
    Ring: Headphone
    Sleeve: Common

  • Carbon-mic Connector (J1) for Mic Switch

    Tip: Remote switch normal-open contact
    Ring: No connection
    Sleeve: Remote switch common

  • Intercom Line Input Connector (J11)

    XLR-3-31 female receptacle
    Pin 1: Common
    Pin 2: Channel 1 intercom audio and +DC
    Pin 3: Channel 2 intercom audio

  • Aux Connector (J10) for Loop-through

    XLR-3-32 male receptacle
    Pin 1: Common
    Pin 2: Channel 1 intercom audio and +DC
    Pin 3: Channel 2 intercom audio

  • Aux Connector (J10) for Program Input

    Pin 1: Common
    Pin 2: Program input high
    Pin 3: Program input low

  • Aux Connector(J10) for Remote Mic Switch

    Pin 1: Common
    Pin 2: +22 to +24V DC
    Pin 3: Remote switch normal-open contact

  • Dimensions (H x W x D)

    5 x 3.5 x 1.8" / 127 x 88.9 x 45.72mm

  • Weight

    13oz / 368.54g

About Telex BP-325 Dual Channel Binaural Programmable Beltpack Station, 100Hz to 12KHz Frequency Response, 10000Ohms Impedance, Gray

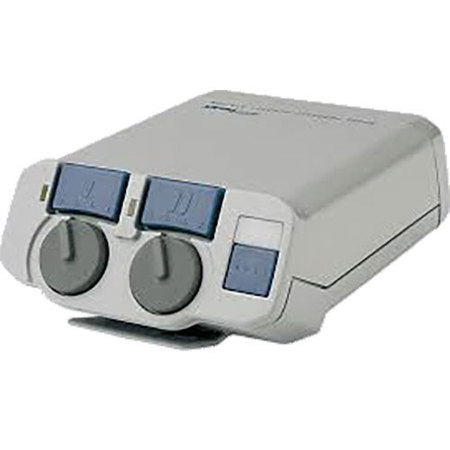

The Telex BP-325 Gray Dual Channel Binaural Programmable Beltpack Station is a portable user station for use with RTS Two-Wire intercom systems. This is a binaural (stereo) programmable 2 channel beltpack with PGM-in capability. It is for use with dynamic microphone only. The factory setting is for Dynamic.

Telex BP-325 Dual Channel Binaural Programmable Beltpack Station, 100Hz to 12KHz Frequency Response, 10000Ohms Impedance, Gray Features

  • Call function that allows the user to send or receive call signals to other devices on the intercom channel, including audible call alert on the listen side
  • Microprocessor controlled microphone kill detect
  • Powered externally, via the intercom system power supply on channel one
  • Headset 4 or 5-pin XLR connection is available

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Telex BP-325 Dual Channel Binaural Programmable Beltpack Station
