Teradek ACE 500 Specifications

Receiver: Wireless

Receiver: Wireless

Jump to...
  • Wireless Range

    500' (152.4m) (Line-of-Sight)

  • Frequency Range

    5.19 to 5.23 GHz
    5.75 to 5.79 GHz
    5.27 to 5.55 GHz
    5.67 GHz

  • Latency

    < 1 ms

  • RF Power

    < 17 dBm

  • Wi-Fi

    Yes

  • Wireless Video Compression

    Uncompressed

Receiver: Interfaces

Jump to...
  • Video Connectors

    1 x HDMI Output

  • Other I/O

    1 x USB Mini-B Input

  • Embedded Audio

    HDMI: 2-Channel

  • Encryption

    128-Bit AES

Receiver: Format Support

Jump to...
  • Broadcast System Compatibility

    NTSC, PAL

  • Video Format

    HDMI: 1080p 4:4:4 RGB 8-Bit at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
    HDMI: 1080PsF 4:4:4 RGB 8-Bit at 23.98, 24, 25, 29.97, 30 fps
    HDMI: 1080i/720p 4:4:4 RGB 8-Bit at 50, 59.94, 60 fps
    HDMI: 576p at 50 fps
    HDMI: 480p at 59.94 fps
    HDMI: 576i
    HDMI: 480i

  • Audio Format

    2-Channel 24-Bit 48 kHz PCM Audio

Receiver: Power

Jump to...
  • Built-In Battery

    None

  • Power Connector

    1 x Barrel (7 to 17 VDC) Input

  • Power Consumption

    Device: 7.3 W

Receiver: Enviromental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Receiver: General

Jump to...
  • Mounting

    1 x 1/4"-20 Female
    2 x 4-40 Female

  • Materials

    ABS, Aluminum

  • Dimensions

    3.4 x 4.5 x 0.6" (8.64 x 11.43 x 1.52cm)

  • Weight

    5.2 oz (147g)

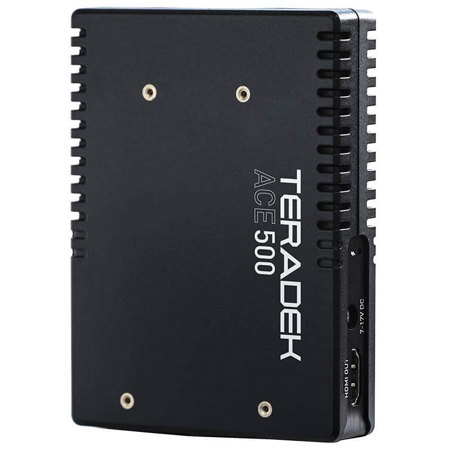

About Teradek ACE 500 HDMI Wireless Video Receiver

Ace 500 is a compact, lightweight and powerful wireless video system designed for professionals on a budget.

Zero-Delay Wireless Video
Transmit uncompressed 1080p60 video to receivers up to 500 ft. away with less than 1ms of delay.

Bolt Compatibility
Ace 500 receivers are compatible with all Bolt 500, LT & XT transmitters and integrated SmallHD Bolt monitors.

Reliability
Built with the same reliability and performance as the Bolt, Ace 500 ensures you have a continuous video feed when you need it most.

Receivers
Send video from the transmitter to up to 4 receivers within 500 ft.

Mounting Options
Ace receiver includes 1x 1/4-20" and 2x 4-40" mounting points.

Powering Options
Keep your Ace powered with optional battery plates attached directly to your receiver.

Teradek ACE 500 HDMI Wireless Video Receiver Features

  • 1080p60 wireless video, less than 1ms of delay
  • Up to 500 ft. wireless range
  • HDMI output
  • Transmit to up to 4 receivers
  • 1x 1/4-20" mounting point
  • Rx weight: 146g

What's in the box:

  • Ace 500 RX (10-1807)
  • Aftermarket Power Supply
  • Item Note: Missing R/A Barrel Power Supply Unit 18W AC Adapter 12VC 6' (11-0058); Ultra Thin HDMI Male Type A to HDMI Male Type A 18 " (11-1235); Mini-USB (5pin) to USB-18 " Cable (11-1267)
