1x 3G/HD/SD-SDI, BNC (75Ohms)
1x HDMI
1x 3G/HD/SD-SDI, BNC (75 Ohms), loop-through out
Number of 20 MHz DFS Channels: 24 (200 MHz channels cannot utilize interlaced, PsF, or 1080p 60/50)
Number of 40 MHz DFS Channels: 11 (USA)
<0.001 sec (when no video format conversion is enabled)
RGB 4:4:4 (HDMI out, 8-bit color)
YCbCr: 4:2:2, 8-bit for SDI (10-bit with no format conversion and FPGA v1.1.0 or later)
1920 x 1080p 60/59.94/50/30/29.97/25/24/23.98
1920 x 1080PsF 30/29.97/25/24/23.98
1920 x 1080i 60/59.94/50
1280 x 720p 60/59.94/50
576 50 (via HDMI ports only)
480p 59.94 (via HDMI ports only)
576i/480i
NTSC/PAL
Range: Up to 3000' (914.41m) line-of-sight
Non-DFS Frequencies: 5.19 to 5.23 GHz and 5.755 to 5.795 GHz (US) / 5.19 to 5.23 GHz (EU & JP)
DFS Frequencies: 5.27 to 5.55 GHz and 5.67 GHz (US) / 5.27 to 5.67 GHz (EU & JP)
22 dBm EIRP (with two 5 dBi TX antennas)
Can coexist with Wi-Fi and 5 GHz cordless phones
48 kHz, 24-bit PCM
1/4"-20 threaded mounting holes
Volts: 7 to 28 VDC
Consumption: 7.5 W
Connector: 2-pin LEMO
1x 3G/HD/SD-SDI, BNC (75Ohms)
1x HDMI
1x Micro-USB 3.0
<0.001 sec (when no video format conversion is enabled)
RGB 4:4:4 (HDMI out, 8-bit color)
YCbCr: 4:2:2, 8-bit for SDI (10-bit with no format conversion and FPGA v1.1.0 or later)
1920 x 1080p 60/59.94/50/30/29.97/25/24/23.98
1920 x 1080PsF 30/29.97/25/24/23.98
1920 x 1080i 60/59.94/50
1280 x 720p 60/59.94/50
576 50 (via HDMI ports only)
480p 59.94 (via HDMI ports only)
576i/480i
NTSC/PAL
Range: Up to 3000' (914.41m) line-of-sight
Non-DFS Frequencies: 5.19 to 5.23 GHz and 5.755 to 5.795 GHz (US) / 5.19 to 5.23 GHz (EU & JP)
DFS Frequencies: 5.27 to 5.55 GHz and 5.67 GHz (US) / 5.27 to 5.67 GHz (EU & JP)
17 dBm EIRP (with one 2 dBi TX antenna)
Can coexist with Wi-Fi and 5 GHz cordless phones
48 kHz 24-bit PCM
Volts: 7 to 28 VDC
Consumption: 8.5 W
Connector: 2-pin LEMO
Transmitter: 0.9 x 2.6 x 4.0" (2.29 x 6.60 x 10.16cm)
Receiver: 5.5 x 3.5 x 0.9" (13.97 x 8.89 x 2.29cm)
Transmitter: 8 oz (226.80g)
Receiver: 13.3 oz (377.05g)

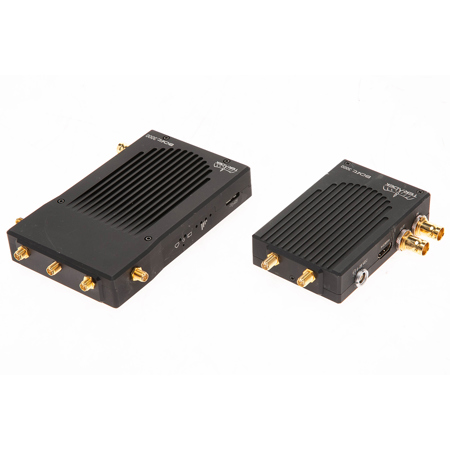

The Bolt 3000 Deluxe Kit has everything you need to get up and running with Bolt. It comes with a Bolt 3000 Transmitter and Receiver set with options for 1 or 2 Receivers, an antenna array to improve reception, that can all fit with the included SKB Utility Case.

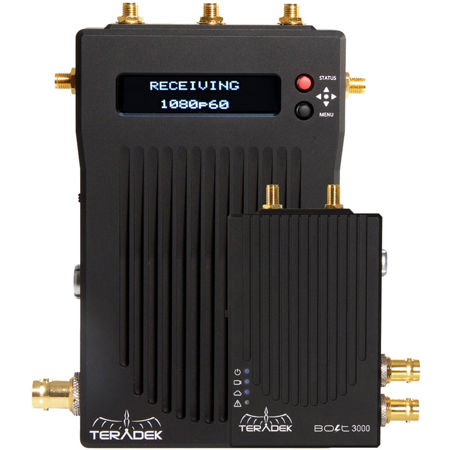

 The Bolt 3000 Set
 With highly refined software, new wireless radios and a redesigned chassis, these new models are the most reliable and capable monitoring solutions we have ever built. Metadata and timecode support, 3D LUTs, dual inputs/outputs, multicast capable (1 Transmitter can multicast up to 4 Receivers), manual frequency selection and USB 3.0 GRAB Engine are all included on these new models but with the following new features
 Longer Range
 Transmit visually lossless video up to 3000ft with no delay.
 20MHz Channels
Use more than twice as many Bolts in one location or avoid interference like never before.
 2 New DFS Channels
 Operate interference-free more often in the USA and Europe by making use of two newly introduced DFS channels.
 20% Smaller Chassis
 Not just smaller, but lighter too, allowing these models to integrate into any rig unnoticed.
 Individual Identity
 Easily identify which Bolt TX and RX work together with removable colored top plates.
 Rapid Reconnection
Reconnect times during a dropped link are now instantaneous once you move back into range.
 Built-In HDMI to SDI Converter
Perfect for use with MoVI and other gimbals, Bolt's TX has a built-in HDMI to SDI converter, allowing you to connect both your on-camera monitor and video source via the same device.
 More Robust Than Ever Before
Reach your Bolt's full range and potential right out of the box with new software that provides the most robust wireless link we've ever created.
 The Protective Case
The Teradek Protective SKB Case is an injection molded Military-Standard Waterproof Case molded of ultra high-strength polypropylene copolymer resin, featuring a gasketed, water and dust tight, submersible design that is resistant to corrosion and impact damage. Features a molded-in hinge, patented trigger release latch system, comfortable, snap-down rubber over-molded cushion grip handle, automatic ambient pressure equalization valve, resistance to UV, solvents, corrosion, fungus and impact damage.
 Waterproof and dust tight design
  Molded-in hinge for added protection
  Trigger release latch system
  Snap-down rubber over-molded cushion grip handle
  Ambient pressure equalization valve
  Resistant to UV, solvents, corrosion, fungus
  Resistant to impact damage
