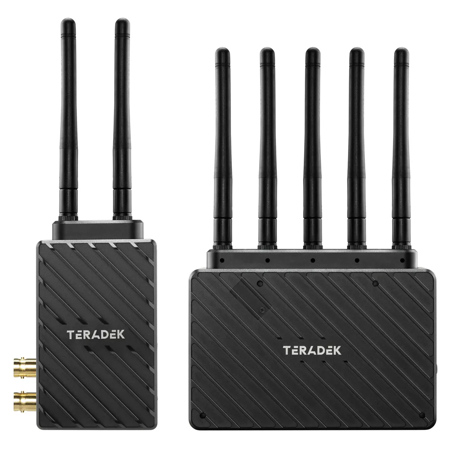

Used Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter and Receiver Kit, 750' Range

SKU: US2023035 MFR: 10-2260
$1,949.00
New: $3,290.00
Used Savings: $1341 (41%)
OR
Earn VIP Reward Points

What`s in the box:

  • Bolt 6 LT 750 Transmitter
  • Bolt 6 LT 750 Receiver
  • Lightstand Adapter 1/4"-20
See more

Key Features

  • Experience reliable wireless video with the Bolt 6 LT 750's extended transmission range.
  • Enjoy high video quality with visually lossless compression for pristine images every time.
  • Set up quickly and easily with this wireless transmitter and receiver kit for immediate use.
  • Achieve stable connection for uninterrupted live streaming, avoiding frustrating drops.
  • Benefit from low latency, ensuring real-time video transmission for critical monitoring.
  • Its compact size makes the Bolt 6 LT 750 ideal for on-the-go professional video shoots.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Teradek 10-2260 Specifications

Video
  • Video Inputs

    Transmitter:
    3G-SDI SMPTE 424M standard / 75 Ohm (1x BNC)
    1x HDMI 1.4b Type-A receptacle

  • Video Outputs

    Transmitter:
    3G-SDI SMPTE 424M standard / 75 Ohm (1x BNC)

    Receiver:
    3G-SDI SMPTE 424M standard / 75 Ohm (1x BNC)
    1x HDMI 1.4b Type-A receptacle

  • SDI Ancillary Data Support

    Supports reading metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit
    HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit

  • Delay Tx to Rx

    <0.001sec

  • Input Cross Conversion

    Transmitter: Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)
    Receiver: No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30 (HDMI only)
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p59.94 576p50
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Test Pattern Generator Support

    Receiver: Yes

  • Spectrum Analyzer

    Receiver: Yes

  • Color Correction

    Transmitter: None
    Receiver: 17 x 17 x 17 3D LUT (supports 10-bit color)

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

Outputs

Jump to...
  • Audio Input

    Embedded SDI/HDMI Audio Input (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Mobile App

    Bolt App

  • Desktop App

    Bolt Manager application for OSX & Windows

  • USB Interface Functionality

    Upgrade via Micro-USB

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    Transmitter: 2x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)
    Receiver: 5x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, 5.945 - 6.425 GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    Transmitter: 23 dbm EIRP
    Receiver: 21 dbm EIRP

  • Range

    Up to 750' (228.6m), line of sight

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Interoperability

    Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT Transmitter & receivers (limited by shortest range device)

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Nominal Power Consumption

    Transmitter: 9 Watts
    Receiver: 11 Watts

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Transmitter: Multiple mounting options with 1/4"-20 and M3 holes
    Receiver: Multiple mounting options with 1/4"-20 and 3/8"-16 holes

  • Dimensions

    Transmitter: 2.36 x 4.05 x 1.30" (60 x 103 x 33mm)
    Receiver: 4.80 x 3.70 x 1.06" (122 x 94 x 27mm)

  • Weight

    Transmitter: 7.3 oz (206g)
    Receiver: 10.3 oz (292g)

About Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter and Receiver Kit, 750' Range

Experience the future of wireless video transmission with the Bolt 6 LT 750 3G-SDI/HDMI Transmitter and Receiver Kit. This advanced and innovative kit, designed by Teradek, offers unparalleled efficiency in transmitting and receiving high-definition videos, reaching an impressive range of up to 750 feet line of sight.

The Bolt 6 LT Set is a marvel in the realm of consumer electronics, providing real-time wireless transmission of Ultra-High Definition (UHD) 4K30 videos. With the support of 10-bit 4:2:2 High Dynamic Range (HDR), this kit delivers color-accurate, True-HDR videos that are crystal clear and lossless.

Experience the power of Teradek's patented Zero-Delay technology, which ensures swift video playback with a speed of under 0.001 seconds. This feature makes the Bolt 6 LT Set an ideal choice for videographers, broadcasting enthusiasts, and anyone in need of reliable, high-quality wireless video transmission.

The Bolt 6 LT Set is not just about performance; it's also about convenience and versatility. It offers diverse range options to meet varied production requirements and swift reconnections to minimize disruptions. With the Bolt Manager App, setting up your device is effortless on both iOS and Android platforms.

Benefit from the enhanced wireless capabilities of the 6GHz band, which promises superior image clarity and minimal interference. With 12 additional channels, the Bolt 6 LT Set is perfect for high-traffic areas, providing ample frequency adjustment possibilities.

The Bolt 6 LT Set also offers robust connection insights, allowing you to gain better oversight of your connections and signals. Its Long Range Mode is designed for clear video transmission over greater distances, and with an optional 5-pin USB adapter, you can facilitate wireless camera operations, especially when integrated with SmallHD Smart Monitors.

The Bolt 6 LT 750 3G-SDI/HDMI Transmitter and Receiver Kit is fully cross-compatible with the entire Bolt 4K Series, offering potential for workflow expansion. With both 4K HDMI and 1080p SDI input and outputs, this kit provides versatility for a variety of tasks.

Embrace the future of wireless communication with the Bolt 6 LT's championing of the 6GHz wireless frequency. This shift ensures rapid connections, diminished interference, and a superior wireless experience. With a 5GHz Mode for backward compatibility, the 6GHz Mode promises an uncluttered, efficient wireless environment.

Whether for professional broadcasting, content creation, or personal use, the Bolt 6 LT 750 3G-SDI/HDMI Transmitter and Receiver Kit delivers unmatched quality, versatility, and efficiency in wireless video transmission.

Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter and Receiver Kit, 750' Range Features

  • Lossless HD video transmission up to 750' line of sight
  • Bolt 6 LT supports the new 6 GHz frequency
  • Bright OLED displays for clear readouts
  • Wireless reception of UHD 4K30 video, 10-bit 4:2:2 HDR support
  • Video inputs via 3G-SDI or HDMI, with loop outputs
  • Receiver outputs through 3G-SDI and HDMI
  • Compatibility with Bolt 4K models over the 5 GHz band
  • Convenient carry case for easy portability and storage
  • SDI Eye Pattern Tool ensures cable reliability
  • Enhanced "long range" mode for optimal transmission
  • Compact and lightweight design for effortless setup
  • Ability to transmit to up to six Bolt 4K or Bolt 6 receivers
  • Secure AES-256 encryption
  • Wireless control via iOS/Android app with a spectrum analyzer and remote configuration
  • Practically instant wireless video with zero-delay (<0.001sec)

Warranty Information

This used item has a FREE 1-year warranty. See details.

Key Features

  • Experience reliable wireless video with the Bolt 6 LT 750's extended transmission range.
  • Enjoy high video quality with visually lossless compression for pristine images every time.
  • Set up quickly and easily with this wireless transmitter and receiver kit for immediate use.
  • Achieve stable connection for uninterrupted live streaming, avoiding frustrating drops.
  • Benefit from low latency, ensuring real-time video transmission for critical monitoring.
  • Its compact size makes the Bolt 6 LT 750 ideal for on-the-go professional video shoots.
