Teradek Bolt Pro 600 Specifications

  • Input

    HD-SDI and HDMI

  • Video resolution

    1080p60/59.94/50/30/29.97/25/24/23.98
    1080psf30/29.97/25/24/23.98
    1080i60/59.94/50
    720p60/59.94/50
    480p59.94/576p50 (via HDMI ports only)
    480i(NTSC)/576i(PAL)

  • Color Sampling

    Depends on the input/output types and RX settings; SDI 10-bit with no format conversion and FPGA v.1.1.0 or later, 8-bit colors for the rest

  • Video Inputs

    1 x 75 Ohm BNC
    1 x Type A receptacle HDMI

  • Video Outputs

    1 x 75 Ohm BNC(Loop-out)

  • Delay(TX to RX)

    <0.001sec (when no video format conversion is enabled)

  • Audio Format support Wireless

    48kHz 24-bit PCM

  • Frequencies

    Non-DFS Frequencies:
    US : 5.19 - 5.23 GHz and 5.755 - 5.795 GHz
    DFS Frequencies:
    US : 5.27 - 5.55 GHz and 5.67 GHz

  • RF power

    19dbm EIRP(with two 2dbi antennas)

  • Range

    Up to 600' line of sight

  • Unicast / Multicast

    Yes

  • Noise rejection

    Can coexist with Wi-Fi and 5GHz cordless phones

  • Input Power

    2-Pin Lemo 7-28 VDC

  • Internal Battery

    No

  • Power Consumption

    1080p60: 7.8 Watts

  • LCD Screen

    No

  • Firmware

    Upgrade via Mini-USB

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Chassis Material

    Milled aluminum

  • Mountability

    Hot-shoe Mount
    Multiple mounting options with 1/4" holes

  • Dimensions

    4.3 x 2.6 x 1.1" / 10.92 x 6.60 x 2.79cm

  • Weight

    9.9oz / 280.66g

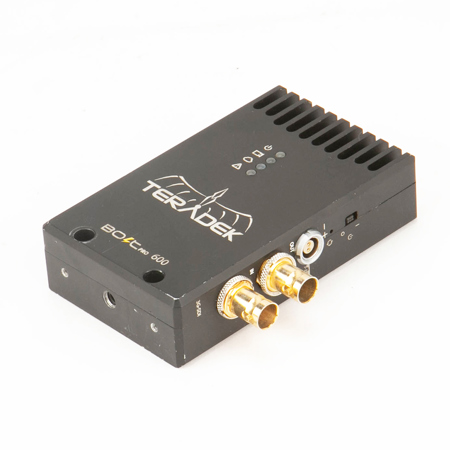

About Teradek Bolt Pro 600 HD-SDI and HDMI Wireless Video Transmitter - SKU#1746529

The Bolt Pro 600 offers all of the same great features of the 300 model, in addition to an OLED screen for quick RX pairing, manual frequency selection, external antennas and a transmission range of up to 600ft line of sight. Bolt Pro 600 comes in HDMI, 3G-SDI and dual I/O models.

USB 3.0 GRAB Engine
Capture cards are a thing of the past with Teradek's new GRAB Engine. Every Bolt RX includes a USB 3.0 output that allows you to ingest Bolt's uncompressed video feed directly into a computer or DIT cart with no added delay.

Real-Time Cross Conversion Extras
All Bolt models support real-time format conversion from TX to RX, allowing you to automatically cross convert from HDMI to 3G-SDI (or vice versa) without any extra hardware. Each model also outputs a test pattern when the video signal is lost and both the 600 and 2000 models support quick RX pairing via the OLED screen and manual frequency selection.

What's in the box:

  • Teradek Bolt Pro 600 HD-SDI and HDMI Wireless Video Transmitter
  • 2x Wireless Antennas
  • Bit 118 P-tap to 2-pin Lemo
  • Item Note: Missing Hot Shoe Adapter; HDMI Cable; SDI Cable
