HD-SDI / SD-SDI: BNC
1080i 50/59.94/60
1080p 23.98/24/25/30
1080PsF 23.98/24/25
720p 50/59.94/60
576i
480i
Compression Algorithm: Baseline, Main and High Profile H.264
Main and Baseline profiles
Bit Rate: 250 Kbps to 10 Mbps
Built in Video Scaler and Deinterlacer
Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Transport Protocols: RTP, RTSP, RTP over HTTP, MPEG-TS
RTMP (Adobe Flash Streaming)
HTTP Live Steaming
Point to Point (TCP or UDP), Multiple Unicast (UDP), or Multicast (UDP+IGMP)
Audio Compression: AAC-LC, MPEG Layer 2
Embedded Audio Input
Analog Line or Mic in, adjustable gain
Headphone output, adjustable volume
Feature-rich WebUI for configuration and control
OLED LCD Display with joystick Navigation buttons
On/Off and Reset Switch
Micro SD
Powered USB 2.0 host port
Ethernet: 10/100BASE-T
Wi-Fi: Dual Band 802.11 a/b/g/n MiMO
USB Modem support
2 Pin Lemo Power input
Internal Rechargeable Lithium Ion Battery
USB Charging
3W
Up to 10W
6-28V DC
2.5" x 3.5" x 0.9" / 63.5 x 88.9 x 22.86 mm
8 oz / 226.80 g

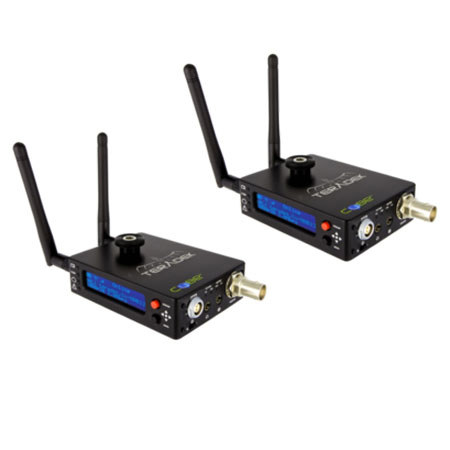

The Teradek Cube-155/355 HD-SDI Encoder/Decoder Pair features a hardened aluminum chassis, low power consumption and a variety of network connectivity options (RJ-45 Ethernet, dual band Wi-Fi and USB port for 3G/4G modems). This bundle provides an affordable high definition end-to-end streaming video solution that eliminates the need for PC-based decoding. The 155/355 bundle is particularly useful for filmmaking, ENG and Pro AV applications.
