Used Teradek Cube-200 1 Channel HDMI Encoder, 250 Kbps to 10 Mbps Bit Rate, 1/8 to 1/2 Second Latency

SKU: US1333270 MFR: CUBE-200
$86.00
Earn VIP Reward Points

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$11.99

2 Year

$18.99

3 Year

$28.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Teradek Cube-200 1 Channel HDMI Encoder, 250 Kbps to 10 Mbps Bit Rate, 1/8 to 1/2 Second Latency Specifications

  • Compatible with

    RED ONE, Arri Alexa, Panavision Genesis, Canon 5Dii, Canon 7D and other handycams

  • Resolution

    Supported Input Resolutions:
    1080p/PsF @ 23.98/24/25/29.97/30Hz
    1080i @ 50/59.94/60Hz
    720p @ 50/59.94/60Hz
    Streaming Output Resolutions
    1080p/PsF @ 23.98/24/25/29.97/30Hz
    1080i @ 50/59.94/60Hz
    720p @ 50/59.94/60Hz
    480p @ 50/59.94/60Hz

  • Video Codec

    Compression Algorithm: High Profile H.264 (L4.1), MJPEG
    Bit Rate: 250 Kbps to 10 Mbps

  • Audio

    Embedded stereo over HD-SDI or HDMI
    1/8" stereo TRS line level input
    Audio Compression: AAC-LC, MPEG Layer 2

  • Network

    Ethernet: 10/100BASE-T
    Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
    Transport Protocols: RTP, RTSP, RTP over HTTP, MPEG-TS, HTTP Live Steaming
    Feature-rich WebUI for configuration and control
    Point to Point (TCP or UDP), Multiple Unicast (UDP), or Multicast (UDP+IGMP)

  • Power Input

    Auxiliary Power Input: 9-24V DC

  • Power Consumption

    2.5W - 3.8W

  • Auxiliary Power Input

    6-28V DC

  • Interface

    USB 2.0: 1 Powered Port (Optional)
    Wi-Fi: Internal 802.11n (Optional)
    Dual-Band Wi-Fi: Internal 802.11n(Optional

  • Temperature

    0 to +50 deg.C

  • Humidity

    95% non condensing

  • Dimensions (WxDxH)

    2.5 x 3.5 x 0.9" (63.5 x 88.9 x 22.86 mm)

  • Weight

    7 oz (198.45 g)

About Teradek Cube-200 1 Channel HDMI Encoder, 250 Kbps to 10 Mbps Bit Rate, 1/8 to 1/2 Second Latency

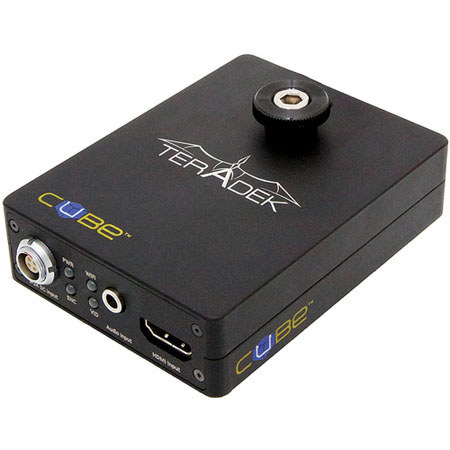

The Teradek Cube-200 1-Channel HDMI Encoder is a camera-top HD video encoder, which is ideally suited for on-set video monitoring as well as full-scale film production Eliminating the complexity of VTR (Video Tape Recorder) rigs and camera tethering for long dolly moves as well as running footage, the Cube-200 offers a lightweight (0.43 lb/0.19 kg), compact (2.5 x 3.5 x 0.9"/63.5 x 88.9 x 22 mm) and low power (2.5 W) HDMI video encoding solution.

You can use the Cube-200 for input resolutions of 1080p/PsF, 1080i and 720p. Downscaling to lower resolutions is possible via a built-in scaler that allows output streaming resolutions of 1080p/PsF, 1080i, 720p and 480p. You can achieve Blu-ray output video quality and H.264 High Profile Level 4.1 video compression at bit rates of 250 Kbps to 10 Mbps. The Cube-200 typically exhibits a latency of 1/8-1/2 second.

You are provided with a 1/8" Stereo TRS Line Level input and embedded stereo capabilities for HDMI. Also integrated into the Cube-200 are AAC-LC and MPEG Layer 2 Audio compression standards. Direct streaming to decoding devices such as a laptop or iPad is offered via the ad-hoc networking mode which eliminated the need for any other intermediary equipment. 10/100 BaseT Ethernet based network distribution (LAN/WAN/Internet) of the Cube-200's IP video stream is provided via the infrastructure network mode that supports TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP protocols.

You can easily configure and control the Cube via a feature-rich UI. Rail system, cage, hotshoe, or camera baseplate mounting options are available for the cube. You can use the Cube-200 with RED ONE, Arri Alexa, Panavision Genesis, Canon 5Dii, Canon 7D and other handycams.

Teradek Cube-200 1 Channel HDMI Encoder, 250 Kbps to 10 Mbps Bit Rate, 1/8 to 1/2 Second Latency Features

  • Camera-top HD video encoder ideally suited for on-set video monitoring as well as full-scale film production
  • Offers a lightweight (0.43 lb), compact (2.5 x 3.5 x 0.9" / 63.5 x 88.9 x 22.8 mm) and low power (2.5W) HDMI video encoding solution
  • Eliminates complexity of VTR (Video Tape Recorder) rigs and camera tethering for long dolly moves as well as running footage
  • Accepts input resolutions of 1080p/PsF, 1080i and 720p
  • Provides downscaling to lower resolutions via a built-in scaler that allows output streaming resolutions of 1080p/PsF, 1080i, 720p and 480p
  • Offers Blu-ray output video quality and H.264 High Profile Level 4.1 video compression at bit rates of 250 Kbps to 10 Mbps
  • Exhibits a latency of 1/8-1/2 second
  • Includes a 1/8" Stereo TRS Line Level input and embedded stereo capabilities for HDMI
  • Integrates AAC-LC and MPEG Layer 2 Audio compression standards
  • Allows direct streaming to decoding devices such as a laptop or iPad via the ad-hoc networking mode eliminating the need for any other intermediary equipment
  • Provides 10/100 BaseT Ethernet based network distribution (LAN/WAN/Internet) of the IP video stream via the infrastructure network mode that supports TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP protocols
  • Offers easy configuration and control via a feature-rich UI
  • Allows rail system, cage, hotshoe, or camera baseplate mounting

Warranty Information

This used item has a FREE 180-day warranty. See details.
