Used Teradek Cube 605 HD-SDI Encoder with OLED Display, 10/100/1000 BASE-T Gigabit PoE, External USB Port

SKU: US1966711 MFR: 10-0605
Earn VIP Reward Points

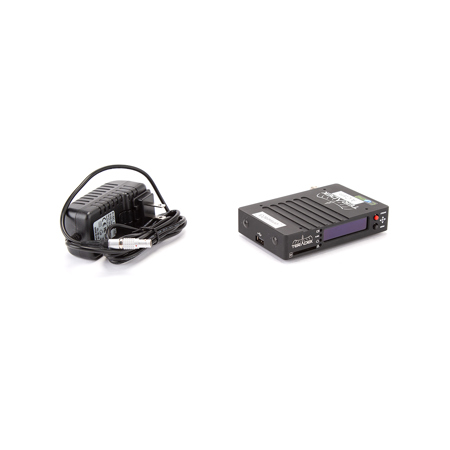

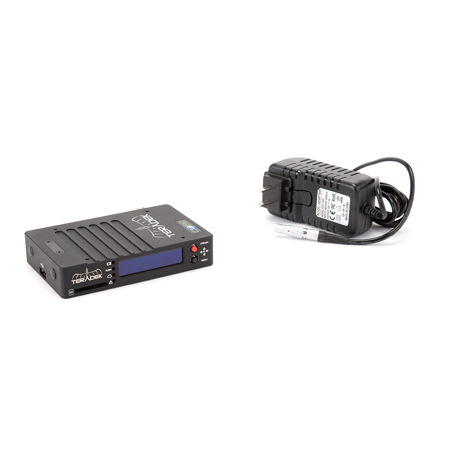

What`s in the box:

  • Teradek Cube 605 HD-SDI Encoder
  • 2pin Lemo to 18W AC Power Adapter
See more

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$40.99

2 Year

$54.99

3 Year

$85.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Teradek Cube 605 Specifications

  • Video Inputs

    1x SD/HD-SDI (75 Ohm BNC)
    1x HDMI Type-A receptacle

  • Bonding

    TeraLink

  • Supported Resolutions

    1080p 23.98/24/25/29.97/30/50/59.94/60
    1080i 50/59.94/60
    1080PsF 23/24/25/29/30
    720p 50/59.94/60
    576i
    480i
    480p (for HDMI input only)
    576p (for HDMI input only)

  • Video Compression

    H.264, Baseline, Main and High Profile

  • Supported Video Bitrate

    250 Kbps to 15 Mbps

  • Test Pattern Generator Support

    Supports Custom Test Pattern

  • Video Format Conversion Support

    Built in Video Scaler and Deinterlacer

  • Color Correction

    CDL/1024 1D LUT (supports 10-bit color)
    33x33x33 3D LUT (supports 10-bit color)

  • Network Protocols

    TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

  • Supported Video Transport Protocols

    RTMP
    RTP, RTSP, RTSP over HTTP
    MPEG-TS (MPEG-TS is an optional paid license)

  • Remote Control

    Teradek Core

  • Software Or Platform Integration

    Ustream, YouTube Live, Facebook & new Livestream

  • Audio Compression

    AAC-LC, MPEG Layer 2

  • Audio Input

    Embedded Audio Input
    Analog Line or Mic in, adjustable gain

  • Audio

    Headphone output

  • Configuration Interfaces

    OLED Display with joystick Navigation buttons
    Feature-rich WebUI for configuration and control

  • Switches

    On/Off and Reset Switch

  • Recording Storage

    SD Card: Full Size

  • USB Interface Functionality

    Powered USB 2.0 host port

  • Ethernet

    10/100/1000 BASE-T Gigabit

  • Wireless

    No

  • USB

    USB 3G/4G Modem support

  • RF Channel Selection

    No

  • Encryption

    No

  • Power Input

    2 Pin Connector Power input

  • Battery

    No

  • Nominal Power Consumption

    7W (no Wi-Fi)

  • Auxiliary Power Input

    6-28V DC

  • Construction

    Milled Aluminum

  • Dimensions (WxDxH)

    4.75 x 3 x 1.1" (120.65 x 76.20 x 27.94mm)

  • Weight

    11.6 oz (328.85g)

About Teradek Cube 605 HD-SDI Encoder with OLED Display, 10/100/1000 BASE-T Gigabit PoE, External USB Port

Designed for Professionals
Cube is manufactured in the USA and features 3G-SDI and HDMI inputs. Cube's rugged aluminum chassis and professional locking 2-Pin Connector ensure it's ready for constant use in any environment.

Higher Bitrates
The Cube 600 series encodes video at bitrates up to 15 Mbps for pristine quality in any application. When bandwidth is limited, adaptive bitrate allows Cube to automatically adjust and stream at the highest quality achievable.

iPad Monitoring for All
Cube 600 supports monitoring on up to 6 devices iOS devices simultaneously so clients, crew and director can all see the action.

Built-in Color Grading
Support for 33 point 3D LUTs and Pomfort LiveGrade integration allows your creative team to monitor graded footage on set or off. Looks can be applied to the stream itself or controlled independently within the TeraView app.

All New User Interface
Cube's intuitive new user interface makes it easier than ever to configure your device. Pages load more quickly, configuration changes apply instantly and all encoder statuses are updated dynamically.

Onboard Recording
Cube's built-in SD card slot gives you the option to save high quality backup recordings for post-event editing.

Test Pattern Generator
A configurable test pattern generator allows you to test your stream without connecting a video source and prevents interruptions if video sync is lost.

Warranty Information

This used item has a FREE 180-day warranty. See details.
