Used Teradek Cubelet 655 HD-SDI/HDMI Encoder, 10/100/1000 BASE-T Gigabit, 2.4/5GHz Wi-Fi

SKU: US1966644 MFR: 10-0655
Earn VIP Reward Points

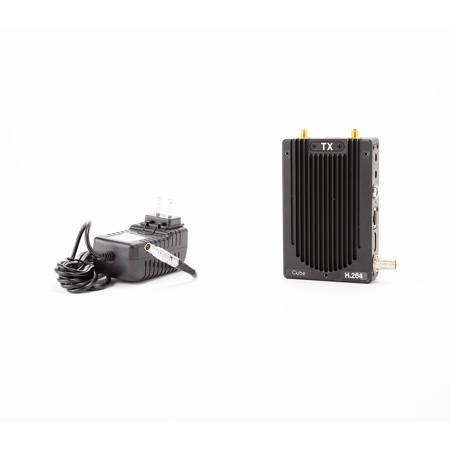

What`s in the box:

  • Teradek Cubelet 655 HD-SDI/HDMI Encoder
  • 2-Pin Lemo to 18W AC Power Adapter
See more

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$103.99

3 Year

$161.99

4 Year

$220.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Teradek Cubelet 655 Specifications

  • Encoder: Video Inputs

    1 x SD/HD-SDI (75 Ohm BNC)
    1 x HDMI Type-A receptacle

  • Encoder: Bonding

    TeraLink

  • Encoder: Supported Resolutions

    1080p 23.98/24/25/29.97/30/50/59.94/60
    1080i 50/59.94/60
    1080PsF 23/24/25/29/30
    720p 50/59.94/60
    576i
    480i
    480p (for HDMI input only)
    576p (for HDMI input only)

  • Encoder: Video Compression

    H.264, Baseline, Main and High Profile

  • Encoder: Supported Video Bitrate

    250 Kbps to 15 Mbps

  • Encoder: Test Pattern Generator Support

    Supports Custom Test Pattern

  • Encoder: Video Format Conversion Support

    Supports Custom Test Pattern

  • Encoder: Color Correction

    CDL/1024 1D LUT (supports 10-bit color)
    33x33x33 3D LUT (supports 10-bit color)

  • Encoder: Network Protocols

    TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

  • Encoder: Video Transport Protocols

    RTMP
    RTP, RTSP, RTSP over HTTP
    MPEG-TS (MPEG-TS is an optional paid license)

  • Encoder: Remote Control

    Teradek Core

  • Encoder: Software/Platform Integration

    Ustream, YouTube Live, Facebook & new Livestream

  • Encoder: Audio Compression

    AAC-LC, MPEG Layer 2

  • Encoder: Audio Input

    Embedded Audio Input
    Analog Line or Mic in, adjustable gain

  • Encoder: Audio Output

    Headphone output

  • Encoder: Construction

    Milled Aluminum

  • Encoder: Configuration Interfaces

    OLED Display with joystick Navigation buttons
    Feature-rich WebUI for configuration and control

  • Encoder: Switches

    On/Off and Reset Switch

  • Encoder: Recording Storage

    SD Card: Full Size

  • Encoder: USB Interface Functionality

    Powered USB 2.0 host port

  • Encoder: Ethernet

    10/100/1000 BASE-T Gigabit

  • Encoder: Wireless

    Wi-Fi: 2.4/5GHz 802.11 ac/a/b/g/n MiMo

  • Encoder: USB

    USB 3G/4G Modem support

  • Encoder: RF Channel Selection

    Auto with 3 modes: (2.4 or 5 Ghazi), Auto (2.4 GHz only), Auto (5 Ghazi only)
    Configurable to specific channels

  • Encoder: Encryption

    802.1x, 802,11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES

  • Encoder: Power Input

    2 Pin Connector Power input

  • Encoder: Battery

    No Battery Included

  • Encoder: Nominal Power Consumption

    8W, 7W (no Wi-Fi)

  • Encoder: Auxiliary Power Input

    6-28V DC

  • Dimensions (WxDxH)

    4.75 x 3 x 1.1" (120.65 x 76.20 x 27.94mm)

  • Weight

    11.6 oz (328.85g)

About Teradek Cubelet 655 HD-SDI/HDMI Encoder, 10/100/1000 BASE-T Gigabit, 2.4/5GHz Wi-Fi

Designed for Professionals
Cube is manufactured in the USA and features 3G-SDI and HDMI inputs along with a new, high-powered 802.11AC Wi-Fi adapter. Cube's rugged aluminum chassis and professional locking 2-Pin Connector ensure it's ready for constant use in any environment.

• Real-Time H.264 Encoder and Transmitter
• Ethernet, Wireless and USB Interfaces
• HDMI and SDI Video Inputs
• Monitor Locally on up to 6 iPads
• Built-In Color Grading
• On-Board SD Card Recording
• Dual-Band 2.4/5.8 GHz Wireless Operation
• Two-Pin LEMO-Type Power Input

Higher Bitrates
The Cube 600 series encodes video at bitrates up to 15 Mbps for pristine quality in any application. When bandwidth is limited, adaptive bitrate allows Cube to automatically adjust and stream at the highest quality achievable.

Improved Wireless Performance
Built-in 802.11ac dual band (2.4/5GHz) Wi-Fi offers higher data throughput and stronger wireless connectivity at longer distances.

iPad Monitoring for All
Cube 600 supports monitoring on up to 6 devices iOS devices simultaneously so clients, crew and director can all see the action.

Built-in Color Grading
Support for 33 point 3D LUTs and Pomfort LiveGrade integration allows your creative team to monitor graded footage on set or off. Looks can be applied to the stream itself or controlled independently within the TeraView app.

All New User Interface
Cube's intuitive new user interface makes it easier than ever to configure your device. Pages load more quickly, configuration changes apply instantly and all encoder statuses are updated dynamically.

Onboard Recording
Cube's built-in SD card slot gives you the option to save high quality backup recordings for post-event editing.

Test Pattern Generator
A configurable test pattern generator allows you to test your stream without connecting a video source and prevents interruptions if video sync is lost.

Warranty Information

This used item has a FREE 180-day warranty. See details.
