Teradek Link Pro Backpack Specifications

Protocol Support

Protocol Support

Jump to...
  • Network Protocols

    TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

  • Bonding

    Up to 6 devices, Ethernet, WiFi

Interfaces

Jump to...
  • Http

    Feature-rich web UI for configuration and control

  • Switches

    On/Off and Reset switch

  • Expansion

    2x USB 3.0 Type-A

  • Status Leds

    Multiple LEDs for device, wireless and network statuses

  • Interface

    4x 4-pin locking connectors

Environmental

Jump to...
  • Temperature

    Operating: -10 Degree C to 50 Degree C
    Storage: -40 Degree C to 90 Degree C

  • Humidity

    Operating: 5% to 95% (non-condensing)
    Storage: Max. 90%

Network

Jump to...
  • Ethernet

    2x Gigabit Ethernet RJ45 Ports, Auto MDI-X

  • Wireless Wifi

    2x2 2.4GHz 802.11b/g/n, max 20dBm per chain
    2x2 5GHz 802.11a/n/ac, max 16dBm per chain
    Frequency Range: 2.412-2.472GHz, 5.180-5.825GHz

  • Encryption

    802.1x, 802,11i, WPA2, WPA and WEP
    64/128 TKIP 128bit AES

  • Power Input

    2-Pin Circular Locking Connector, 12-24V

  • Nominal Power Consumption

    19W max + up to 5W USB

Physical

Jump to...
  • Construction

    Milled aluminum (chassis)

  • Mountability

    1/4"-20 threaded hole
    2x 4-40 threaded holes
    Additional mounting options available

  • Battery Plates

    Integrated Gold Mount Battery Plate

  • Dimensions (W x D xH)

    1.69 x 5.22 x 4.72" (43 x 132.6 x 120mm)

  • Weight

    19.8 oz (561.3g)

About Teradek Link Pro Wireless Access Point Router Backpack G-Mount, North America

Bring high speed internet connectivity while you're on the go with the Link Pro Backpack. Each pack includes 4 Node modems and an option for Gold or V-mount battery plate, which will power the system continuously for up to 24 hours.

Ergonomic, Weather Resistant Design
The backpack is ergonomic, lightweight, and weather resistant, allowing the camera operator to focus on the content and not on fatigue or damage from the elements. Nylon strips on the Backpack's shoulder straps keep your cables neatly dressed along your shoulder, while the quick release lock on the front offers quick access to both the router and battery.

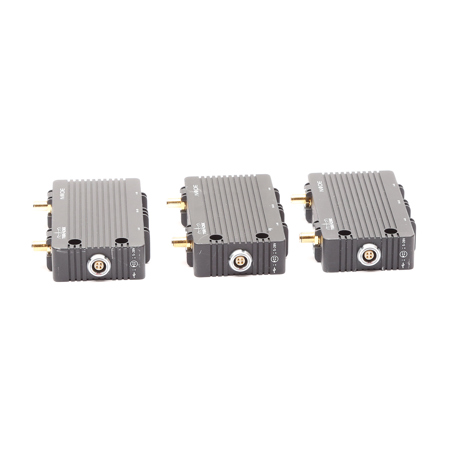

Node
Teradek Node is a high-powered 3G/4G/LTE modem that offers 2 to 3 times the performance of carrier-branded modems. With comprehensive data band support, Node supports SIM cards in regions all around the world.

LTE
North America: LTE FDD Cat 4, Bands 2,4,5,13,17

UMTS
North America: HSDPA Cat 24, HSUPA Cat 6, Bands 850/1900

Maximum Redundancy
Link Pro combines up to six 3G/4G/LTE modems into a single, robust Internet connection for devices to connect to. This eliminates a single point of failure, allowing you to browse the web seamlessly without any interruptions to your work.

Powerful Range
Up to 1000 ft. of wireless range.

Built to Withstand
Link Pro's rugged aluminum chassis is built to withstand the harshest of work environments, whether you're in the studio or on-the-go.

Dual Band 2.4 / 5.0 GHz WiFi
Choose the network that's right for your environment. Whether you require more range for your work (2.4GHz) or a less-congested band (5.0GHz), Link Pro supports the latest in WiFi standards.

Gold or V Mount Battery Plate
Choose between Gold-mount, V-mount, or no battery plate for portable power. When your battery runs dry, Cubes internal Li-Ion battery will give you 5 minutes of operation while you swap power sources.

Core
A subscription to our Core platform is required to get the most out of Link Pro. With Core, you can leverage multiple cellular data links at one time to surf the web, upload files, stream video, and more. Without a subscription, Link Pro cannot operate over bonded connections.

Teradek Link Pro Wireless Access Point Router Backpack G-Mount, North America Features

  • Ergonomic, lightweight, and weather resistant Backpack
  • Active Cooling keeps gear running optimally
  • All in one complete Bonding Solution for all Network Traffic
  • Network Bonding with LTE Modems and High Gain Antennas
  • Dual Band 2.4/5 GHz 802.11ac WiFi
  • 1000ft range
  • Gold Mount Battery Option (battery not included)
  • Integrated Locking Cables

What's in the box:

  • Teradek Link Pro Router
  • 3x Node Modems
  • 4x 4-Pin Right Angle to 4-Pin Cables
  • 1x 2-Pin Connect to PowerTap Cable
  • 6x Antennas (2dBi Wifi 2.4/5.8 GHz)
  • 3x RP-SMA Male to RP-SMA Female Cables
  • Teradek Link Pro Backpack
  • Item Note: Missing Sim Card Adapter; 1x Node Modem; 2x Antennas (2dBi Wifi 2.4/5.8 GHz)
