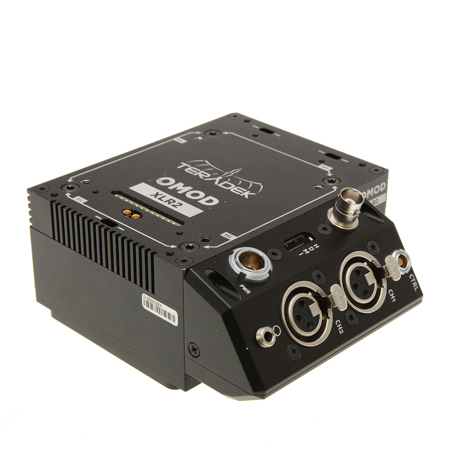

Teradek OMOD XLR2 Expander Module for RED DSMC2 Camera - SKU#1305269

Picture does not represent the actual item
See what's in the box

See all Teradek items

Used Teradek OMOD XLR2 Expander Module for RED DSMC2 Camera

SKU: US1305269
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Used BeachTek DXA-RED 2-Channel Preamplifier with Phantom Powered XLR Inputs for RED DSMC2 Cameras
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Teradek OMOD XLR2 Specifications

  • Connections

    HDMI Output: 1x HDMI type A
    SDI Output: 1x BNC
    Line/Mic Audio Input: 2xxLR (analog/AES)
    Headphone Output: 1x 3.5mm stereo
    AUX Power Output + Start/Stop: 1x 3-pin LEMO
    Timecode Input: 1x 5-pin LEMO
    RTMotion Control Input: 1x 4-pin LEMO
    Power Input: 1x 6-pin LEMO
    Camera: RED DSMC2 pogo plate

  • Audio Input

    Max Gain: 65dB (mic), 35dB (line)
    Max Input Level: 0dBu (mic), +20dBu (line)
    Impedance: 2kOhms (mic), 10kOhms (line)
    Phantom Power: +48V
    Frequency Response: 20Hz to 20kHz (+0 at -1.5dB)
    High-Pass Filter: -3dB at 90Hz, 6dB per octave
    Harmonic Distortion: <0.03% (1kHz, 0 dB), <0.15% (40 Hz to 20 kHz +15 dBm)
    Crosstalk: <70 dB (40 Hz to 15 kHz)

  • Audio Output

    Max Level: +18 dBm, +14 dBm (monitor)
    Impedance: <20 Ohms (monitor path)
    Noise: <-125dB EIN (mic level, 20Hz to 20kHz, 200Ohms source), 80dB SNR (line level, 20Hz to 20kHz)
    Limiter Threshold: +8dB

  • Weight

    1.3 lbs (0.59kg)

About Teradek OMOD XLR2 Expander Module for RED DSMC2 Camera - SKU#1305269

OMOD XLR2 is our second generation of the OMOD XLR module for your RED DSMC2 camera that adds professional in-camera audio features including push to operate controls, high pass filters, peak warning indicators, per channel line / mic level control and per channel Phantom power (+48v). AES or analog audio input. This new version features headphone confidence monitoring from the camera brain - so you hear what the camera is recording and you also can listen to audio on playback from the camera. Other improvements include an adjustment to the limiter allowing operators to ride the levels higher in addition to new, improved knurled knobs. Units ship with our MOD GUARD attached for added protection when your module is not attached to your camera.

Teradek OMOD XLR2 Expander Module for RED DSMC2 Camera - SKU#1305269 Features

  • Full size, balanced XLR inputs
  • AES or Analog audio input
  • +48V Phantom Power (per channel)
  • Line / Mic level selection (per channel)
  • 3.5mm Headphone Monitoring of DSMC2 camera for confidence and audio on playback
  • 3-pin Aux Power + Run/Stop Trigger
  • 5-pin Timecode Input
  • CRTL input for RT Motion MDR-M or MDR-SK
  • SDI out + HDMI out
  • DC/AC power input (DSMC/DSMC2 6-pin)
  • Compatible with all RED approved DSMC2 battery modules and all DSMC2 cameras

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Mod Guard
