Teradek Prism 853 4K Encoder Card Specifications

Video
  • Video Inputs

    1x SD/HD/3G/6G/12G-SDI (75 Ohm BNC)

  • Hdr Support

    10-bit, 4:2:2

  • Genlock Input

    75 Ohm BNC (From Chassis)

  • Video Outputs

    1x SD/HD/3G/6G/12G-SDI (75 Ohm BNC)

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp 23.98/24/25/29.97/30/50/59.94/60
    1080p 23.98/24/25/29.97/30/50/59.94/60
    1080i 50/59.94/60
    1080PsF 23/24/25/29/30
    720p 50/59.94/60
    576i 480i

Video Processing

Jump to...
  • Video Compression

    ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
    AVC: Baseline, Main, High, High10, High 4:2:2 up to 5.2 level
    ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
    HEVC: Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier

  • Supported Video Bitrate

    250 Kbps to 85 mbps

  • Video Format Conversion Support

    Built in Video Scaler and Deinterlacer

  • Color Correction

    None

Protocol Support

Jump to...
  • Network Protocols

    TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

  • Supported Video Transport Protocols

    RTMP/RTMPS, MPEG-TS, Secure Reliable Transport (SRT)

  • Remote Control

    Teradek Core

Audio Processing

Jump to...
  • Audio Compression

    AAC-LC

  • Audio Input

    Embedded, 8 channels
    3.5mm Stereo Line Level Analog

Outputs

Jump to...
  • Audio Output

    Embedded, 8 channels
    3.5mm Stereo Line Level Analog

Interfaces

Jump to...
  • Configuration Interfaces

    Feature-rich Web UI for configuration and control
    0.9" OLED Status Display w/ Nav control
    Video LED
    ENC/DEC LED

  • Switches

    Reset Switch

  • Power Input

    Powered By Chassis

  • Nominal Power Consumption

    Up to 15W per card

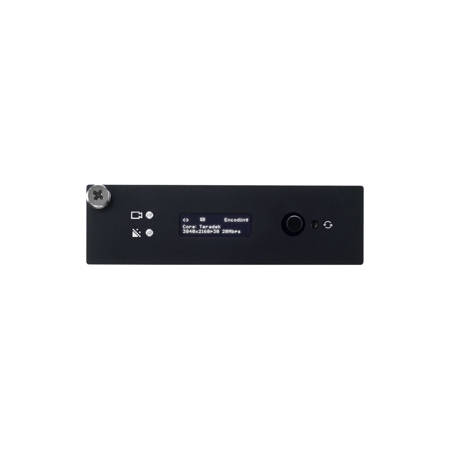

About Teradek Prism 853 4K 10bit HEVC/AVC 12G-SDI Encoder Card

Let the Prism 853 4K 10bit HEVC/AVC 12G-SDI Encoder Card elevate your professional video production to new heights. This high-quality, durable encoder card is an industry leader in low-latency blade encoding, designed specifically for Prism 1RU and 2RU rack mount systems.

Experience the power of advanced 4K, 10-bit, 4:2:2 video encoding in a high-density format, ensuring your video signals are captured with the utmost clarity and precision. This innovative encoder card is capable of transmitting video to a wide range of devices, including Prism, Cube, Slice, Core, and T-Rax decoders, offering you unparalleled flexibility in your video production setup.

The Prism 853 Encoder Card is not just reliable, it's a testament to Teradek's commitment to producing advanced video equipment that meets the demands of today's professional video applications. Whether you're broadcasting live events, engaged in post-production work, or anything in between, this encoder card is designed to handle high-quality video signals and deliver exceptional output every time.

Harness the power of high-efficiency H.265/AVC and low-latency 12G-SDI technology with the Prism 853 4K 10bit HEVC/AVC 12G-SDI Encoder Card, and take your video production to the next level.

Teradek Prism 853 4K 10bit HEVC/AVC 12G-SDI Encoder Card Features

  • Designed for Prism Rack Base System
  • HEVC / H.264 compression
  • Supports encoding up to 2160p60
  • HDR ready: 10-bit, 4:2:2
  • Protocols: SRT, MPEG-TS, RTMP(S)
  • 12G-SDI input and looping output
  • 3.5mm analog audio input and output

What's in the box:

  • Teradek Prism 853 4K 10bit HEVC/AVC 12G-SDI Encoder Card
  • Audio/Video Backplate
  • Original Box
