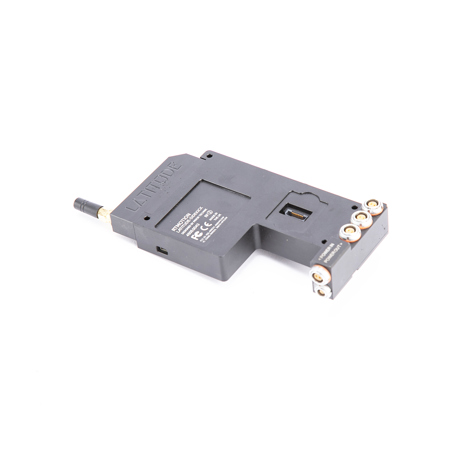

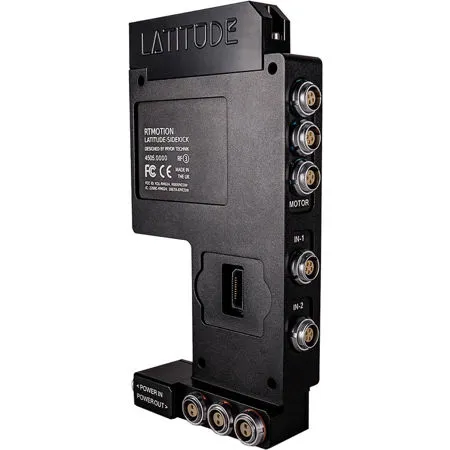

Used Teradek RT Latitude MDR-SK Sidekick 3-Channel Motor Driver Receiver for RED DSMC2 Camera
SKU: US1931516 MFR: 15-0012
$311.00
New: $1,199.95
Used Savings: $888.95 (74%)OR
Key Features
- Achieve precise focus control with the Teradek RT Latitude MDR-SK receiver.
- Seamlessly integrates with your RED DSMC2 camera for professional filmmaking.
- Enjoy smooth motor operation thanks to the Sidekick's advanced technology.
- Mounts easily to your rig, offering a compact design for on-the-go shooting.
- Durable aluminum build ensures long-lasting performance in demanding conditions.
- Adjustable settings provide ultimate control over your lens focus and zoom.
INCLUDES FREE WARRANTY
- This used item comes with a free 180-day warranty. ?
Free Shipping
See Options
1
Need help? Ask our experts.
Overview
Compare
Specs
Q&A
About Teradek RT Latitude MDR-SK Sidekick 3-Channel Motor Driver Receiver for RED DSMC2 Camera
The Latitude Sidekick motor driver receiver is designed to fit seamlessly onto the side of any RED DSMC2 camera. It supports up to 3 motors for FI+Z control (Focus, Iris, and/or Zoom) and can control run/stop on DSMC2 cameras. The system receives commands from any Teradek 4-Axis or 6-Axis Controller at up to 5000ft (1.5km) away and includes automatic or manual (softstop) calibration with a proprietary algorithm for torque control and lens protection. Since the Latitude Sidekick integrates with all RED DSMC2 cameras, it allows users to control EF/AF lens focus/iris with their own internal motors, in addition to camera shutter, ISO, run/stop and button features (2x magnification, edge, focus assist).
Note:
The Latitude Sidekick MDR-SK Wi-Fi range booster is no longer included and the SK will be provided with a flat Latitude antenna cap.
Teradek RT Latitude MDR-SK Sidekick 3-Channel Motor Driver Receiver for RED DSMC2 Camera Features
- Wireless reception up to 5000'
- Controls run/stop, shutter, ISO, and other RED DSMC2 camera parameters
- Automatic/manual calibration with proprietary algorithm for torque control
- Passes data through RED camera data pins
- Drives up to 3 lens motors and/or electronic focus and iris on Canon & Nikon lens using their built in motors
- This module requires more power than the BRAIN can supply from the Sidekick port, so you need External Power and CTRL cables. These connect neatly at the back/bottom of the module
- The 3x LM 2-pin power outputs are passed through directly at the same voltage as the Power-Input
- The MDR-SK does Not have Wi-Fi built in as it is for use with DSMC2 cameras which have integral Wi-Fi
- The RED Sidekick is fully supported and will power and communicate normally. The RED DSMC2 Side Handle is Not supported due to physical warranty concerns
