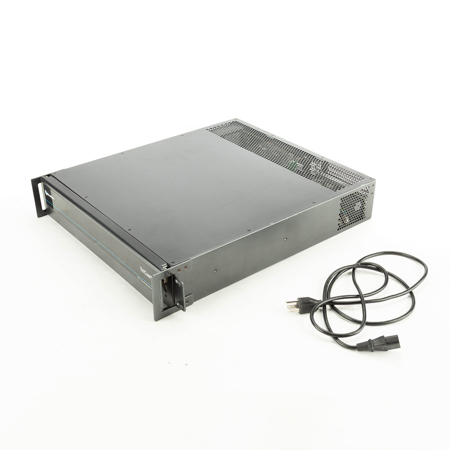

Used TriCaster TC1 16-Channel Live Production System, 2RU Chassis

16x simultaneous external video inputs, supporting any combination of compatible sources in resolutions up to 4K UHD at frame rates up to 60fps (2160p 59.94)

16x IP video inputs via NDI, resolution-independent, with support for key and fill

4x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates

1080p: 59.94, 50, 29.97, 25, 24, 23.976
1080i: 59.94, 50
720p: 59.94, 50, 29.97, 25, 24, 23.976
576i 50
480i 59.94

Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422 and IP, with integrated controls and preset system

Native support for up to 2 simultaneous Skype video call inputs via Skype TX software integration

Native support for input of compatible iOS mobile devices via Apple AirPlay

Configurable for up to 4 independent video mix outputs, with simultaneous delivery via IP and SDI

IP video output via NDI, optionally configurable for:

4x independent video mix outputs
1x 4K UHD video mix output

4x 3G/HD/SD-SDI connections, optionally configurable for:

4x independent 3G/HD/SD video mix outputs
1x 4K UHD video mix output via 3G-SDI quad-link grouping

2x resolution-independent streaming video outputs, independently configurable, with simultaneous stream archive

3x multiviewer outputs supporting standard display resolutions

1x DVI user interface with multiviewer
1x HDMI multiviewer
1x DisplayPort multiviewer

4x M/E buses supporting video re-entry
1x Mix/Effect channel per bus with support for up to 4 sources
4x KEY layers per bus
9x memory slots per bus
1x PREVIZ configuration and preview bus

4x DSK channels

5x media players

2x DDR
2x GFX
1x Sound

15x media buffers

10x animation buffers
5x graphic buffers

30x clip players (available for use as transitions or media depending on function)

Integrated LiveMatte chroma and luma keying technology on all source channels and M/E buses

16x input keyers
4x media player keyers
4x M/E keyers
1x PREVIZ keyer
15x buffer keyers

Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences
16x configurable COMP presets per bus

Integrated LiveSet technology with 30+ live virtual sets and box effects included

Integrated DataLink technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more

Record, store, edit and automate commands and user-configured operation sequences

Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys buttons or GPI triggers
Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions
Supports control via web-based interface

6x configurable video recording channels via IsoCorder technology

4x QuickTime archival video recorders (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode)
2x H.264 distribution video recorders (multiple profiles)
1x MP3 audio recorder

2x 3TB internal drive

Capacity varies by format, resolution and file specification
Supports recording to external storage via USB 3.0 and eSATA
Supports shared storage integration and third-party partner solutions

Grab full-resolution, deinterlaced still images from external video sources and outputs

Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding

Integrated multi-channel audio mixer with support for quad-channel audio, DSPs and 4x4x4 audio input routing

4x SDI embedded
1x Balanced XLR stereo pair (Line)
3x Balanced 1/4" stereo pairs (Line)

4x SDI embedded
1x Balanced XLR stereo pair
1x Balanced 1/4" stereo pair
1x Stereo 1/4" (phones)

Native support for network audio input and output via NDI
Embedded audio supported for all NDI input and output video signals
Integrated support for Dante networking protocol from Audinate
Support for AES67 protocol via compatible WDM audio drivers

Import, store, and play back multimedia files, with optional transcoding, including:

Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
Audio: AIFF, MP3, WAV, and more

Support for up to 3 multiviewer displays with configurable workspaces and viewports

Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709

Video: Floating Point YCbCr +A 4:4:4:4
Audio: Floating Point, 96 kHz

1.0-1.5 frames

4K UHD video conforms to SMPTE 2036 (UHDTV1 using Square Division Quad Split)
3G-SDI video conforms to SMPTE 424M (Level A)
HD-SDI video conforms to SMPTE 292M
SD video conforms to SMPTE 259M and ITU-R BT.656
Analog audio levels conform to SMPTE RP-155

Support for hardware tally via HD15 GPI connector, network tally via NDI, and Blackmagic Design SDI tally standard

Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals

Supports GPI signals via JLCooper Electronics eBox GPI interface

Support for standard MIDI protocol enabling third-party device control

120GB SSD

2x 1 Gigabit NIC

400W

2RU chassis with 400W PSU and multi-tiered hardware and software fail-safe

With rack ears attached: 19.0 x 3.5 x 19.57" (48.26 x 8.89 x 49.71cm)
