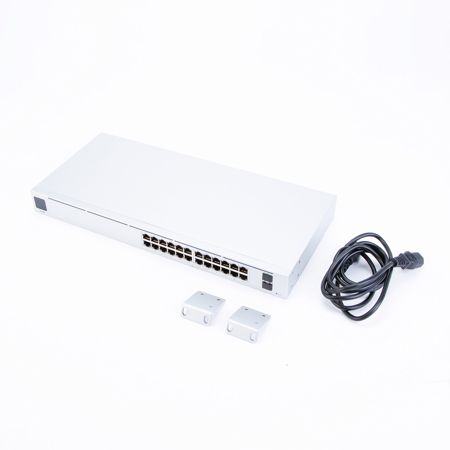

Used Ubiquiti Networks USW-24-POE Gen 2 120W UniFi Managed Gigabit Layer 2 Ethernet Switch with SFP, 24x RJ45 Ports

SKU: US1957718 MFR: USW-24-POE

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-11-19T07:32:07

Rated 5 out of 5

I love it

Love it! Super easy to install, worked instantly. Ubiquiti Controller is a fantastic way to manage a network.

JJ G.

Ubiquiti Networks USW-24-POE Specifications

USW-24-POE Gen 2

USW-24-POE Gen 2

Jump to...
  • Interfaces

    (24) 10/100/1000 RJ45 Ports

  • Networking

    (2) 1G SFP Ethernet Ports

  • Management

    Ethernet In-Band

  • Power Method

    100-240VAC/50-60 Hz, Universal Input

  • Power Supply

    AC/DC, Internal, 120W

  • Supported Voltage Range

    100 to 240VAC

  • Max. Power Consumption

    25W (Excluding PoE Output)

  • LEDs

    System: Status
    RJ45 Data Ports: PoE; Speed/Link/Activity
    SFP Data Ports: Link/Activity

  • ESD/EMP Protection

    Air: +/- 16 kV, Contact: +/- 12 kV

  • Shock and Vibration

    ETSI300-019-1.4 Standard

  • Operating Temperature

    23 to 104 Degree F (-5 to 40 Degree C)

  • Operating Humidity

    10 to 90% Noncondensing

  • Certifications

    CE, FCC, IC

  • Dimensions

    16.71 x 7.87 x 1.72" (424.4 x 200 x 43.7mm)

  • Weight

    6.61 lb (3kg)
    With Rackmount Brackets: 6.81 lb (3.09kg)

  • PoE Interfaces Ports 1-16

    POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)

  • Max. PoE Wattage per Port by PSE

    802.3at: 32W

  • Voltage Range

    802.3af Mode: 44-57V
    802.3at Mode: 50-57V

About Ubiquiti Networks USW-24-POE Gen 2 120W UniFi Managed Gigabit Layer 2 Ethernet Switch with SFP, 24x RJ45 Ports

FEATURED REVIEWS

I love it

By JJ G.

Love it! Super easy to install, worked instantly. Ubiquiti Controller is a fantastic way to manage a network.

An advanced and high-tech solution for your networking needs, the USW-24-POE Gen 2 120W UniFi Managed Gigabit Layer 2 Ethernet Switch with SFP is a powerful and efficient tool for any modern enterprise. This reliable switch boasts twenty-four Gigabit Ethernet ports, including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports, providing robust Gigabit PoE links to your RJ45 Ethernet devices and offering Gigabit fiber uplink options to your enterprise network.

The USW-24-POE Gen 2 120W UniFi Managed Gigabit Layer 2 Ethernet Switch is not just about power, but also about convenience and ease of use. It features a 1.3" touch LCM that provides real-time status information, ensuring you're always in the know about your network's performance. With a depth of just 7.9", its compact, fanless design can be seamlessly integrated into a SOHO rack cabinet, making it a perfect fit for space-conscious environments.

This Ethernet switch is managed and configured by the UniFi Network Controller, which also supports the UniFi mobile app. This means you can configure and monitor virtually all of the switch's features from anywhere, using a graphical user interface. The USW-24-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode per port, which can be set to switching, mirroring, or aggregate, providing flexibility and control over your network's data traffic.

In addition, this switch supports both 802.3af (15W PoE) and 802.3at (25W PoE+) power sources, making it capable of powering devices that require more power than traditional PoE switches can provide. This eliminates the need for a separate power source for devices such as IP cameras or VoIP phones, simplifying your network setup.

In summary, the USW-24-POE Gen 2 120W UniFi Managed Gigabit Layer 2 Ethernet Switch with SFP is a high-performance, feature-rich solution designed to handle large amounts of data traffic, making it an ideal choice for businesses seeking to optimize their network performance.

Ubiquiti Networks USW-24-POE Gen 2 120W UniFi Managed Gigabit Layer 2 Ethernet Switch with SFP, 24x RJ45 Ports Features

  • Manage Your Networks from a Single Control Plane
  • Intuitive and Robust Configuration, Control and Monitoring
  • Remote Firmware Upgrade
  • Users and Guests
  • Guest Portal/Hotspot Support

Warranty Information

This used item has a FREE 1-year warranty. See details.

Key Features

  • This UniFi managed switch offers 24 Gigabit Ethernet ports for fast data transfer speeds.
  • With 120W PoE, power your devices like IP cameras and VoIP phones directly through the switch.
  • Two 1G SFP ports provide high-speed fiber connectivity for uplinks and longer distances.
  • Manage your network efficiently with advanced Layer 2 features and intuitive UniFi software.
  • Ensure reliable performance with enterprise-grade hardware and robust switching capacity.
  • Rackmount design integrates seamlessly into standard server racks for organized networking.
