Review Summary
1/2.8-type Exmor CMOS sensor
1080p down to 180p
1080p at 30/25/15; others 60/30/25/15
2.14 million (effective)
1080p down to 180p at 60/30/15
+/- 170 deg. , up to 120 deg. /sec
10X optical zoom, 67.3 deg. wide to 2.3 deg. tele, f=3.8 mm to 38 mm, F1.8 to F3.4
Super-wide: 12X optical zoom, 73 deg. wide to 6.6 deg. tele, f=3.91 mm to 47 mm, F1.8 to F3.4
10mm (wide), 800 mm (tele)
16 steps
On or off
Auto or manual
Internal
Web interface, Telnet, RS-232
+90 deg. -30 deg. , up to 120 deg. /sec
100+ lux recommended
Auto or manual (28 steps)
Auto, ATW, indoor, outdoor, one-push, manual
On or off (6 steps)
Over 50 dB
12 VDC, 3.0A or PoE+ (25 watts)
0 to +40 deg. C (32 to 104 deg. F)
20% to 80% non-condensing
-20 to +60 deg. C (-4 to 140 deg. F)
20% to 95% non-condensing
6.94 x 7.06 x 6.76" (17.63 x 17.93 x 17.17cm)
4.85 lbs (2.20kg)

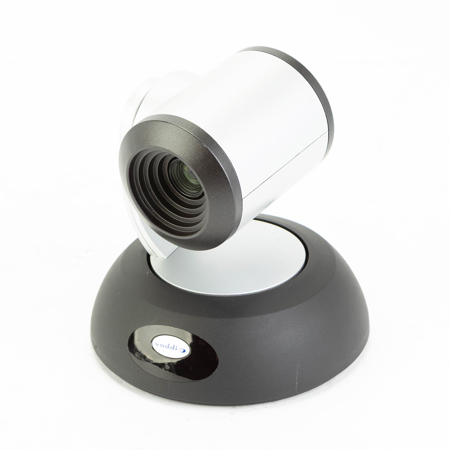

Enterprise-class, HD PTZ camera with USB 3.0 streaming, PoE+ GB Ethernet port for IP (H.264) streaming and an HDMI video output all built directly into the camera. The user can plug the camera directly into their PC and use any software application on any OS that supports USB 3.0 devices. Major innovations of the RoboSHOT 12 USB include its PoE+ GB Ethernet port, which allows the user to power the camera over the network and the built-in web server that gives the user camera control with a web browser from anywhere in the world over the IP Network. Simply enter the camera's streaming URL into a standards based (H.264, RTSP format) media player to watch the IP stream and control RoboSHOT 12 USB simultaneously. These features are perfect for remote management, network operating centers and overall IT control.
The RoboSHOT 12 USB features a 12x optical zoom with a 73-degree wide horizontal field of view, perfect for small to medium sized conference rooms, training rooms or classrooms and ideal for applications such as UC conferencing, videoconferencing, distance learning, lecture capture, telepresence and more. The RoboSHOT 12 USB also features Tri-Synchronous Motion - a silent, direct drive motor that allows all three axes of the camera (pan, tilt and zoom) to move simultaneously for ultra smooth, natural camera motion.
