Vaxis Atom 500 Specifications

Transmitter

Transmitter

Jump to...
  • Construction

    Plastic Chassis and Regulation-Compliant PCB

  • Video Inputs

    HDMI: 1x HDMI Type A Receptacle

  • Video Outputs

    HDMI: 1x HDMI Type A Receptacle

  • Color Sampling

    HDMI: RGB 4:4:4, 8-Bit

  • Latency

    <0.1 Seconds TX to RX without Format Conversion

  • Supported Resolutions

    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    480i: 59.94

  • Audio Input

    Embedded

  • USB Interface Functionality

    Upgrade via Mini-USB

  • Wireless

    Wi-Fi Based

  • RF Power

    15 dBm EIRP

  • Encryption

    AES-128

  • Range

    Up to 500' Line of Sight

  • Multicast

    Multicast Up to 4 Rx (Including App Users)

  • Power Input

    5V to 17 VDC Via Type C or Sony Battery Plate

  • Power Consumption

    Nominal 5W (Measured at 1080p60)

  • Operating Temperature

    32 to 122 Degree F (0 to 50 Degree C)

  • Mountable

    1x 1/4"-20 Threaded Mounting Hole

Receiver

Jump to...
  • Construction

    Milled aluminum Chassis and Regulation-Compliant PCB

  • Video Outputs

    HDMI: 1x HDMI Type A Receptacle

  • USB

    1x USB Type 3.0 Micro-B Receptacle

  • Color Sampling

    HDMI: RGB 4:4:4, 8-Bit

  • Latency

    Zero Delay: <0.1 Seconds TX to RX without Format Conversion

  • Supported Resolutions

    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    480i: 59.94

  • Audio Input

    Embedded

  • USB Interface Functionality

    Upgrade via Mini-USB

  • Wireless

    Wi-Fi Based

  • RF Power

    15 dBm EIRP

  • Encryption

    AES-128

  • Range

    Up to 500' Line of Sight

  • Multicast

    Multicast Up to 4 Rx (Including App Users)

  • Power Input

    5V to 17 VDC Via Type C or Sony Battery Plate

  • Power Consumption

    Nominal 8 W (Measured at 1080p60)

  • Operating Temperature

    32 to 122 Degree F (0 to 50 Degree C)

  • Mountable

    3x 1/4"-20 Threaded Mounting Hole

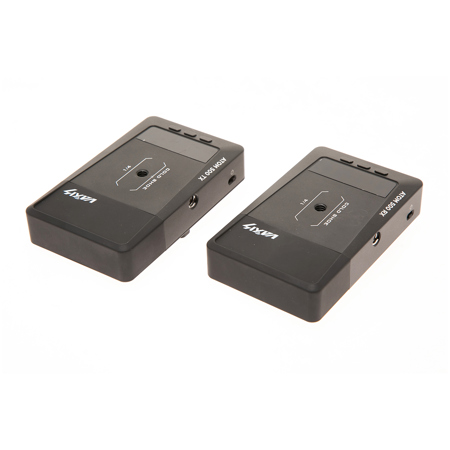

About Vaxis Atom 500 HDMI Wireless Video Transmission Kit - SKU#1753229

The ATOM 500, is the first one in its consumer product line. This wireless video system features H.265 high efficiency codec that allows transmission of 1080p FHD at less than 0.1s latency to multiple receivers or APP monitoring on portable devices such as smartphones and tablets.

The ATOM 500 enables users such as indie filmmaker, educational videographer, wedding videographer to more efficiently getting access to footage up to 500ft wirelessly.

Since introducing the first professional wireless video system Storm 1200ft in 2013, Vaxis has been focusing on improving its technology and optimizing customer experience. The new budget-friendly wireless video system features in two main aspects, "portable" and "affordable".

Vaxis Atom 500 HDMI Wireless Video Transmission Kit - SKU#1753229 Features

  • Up to 500' Line-of-Sight Range
  • Extreme low latency 0.1s
  • App monitoring via smartphones and tablets
  • Frame grab, proxy recording, zebra and peaking functions available on VAXIS Vision APP
  • Both transmitter and receiver feature HDMI input and HDMI Loop-out
  • Supports 4K/ Transmit format 480P @60HZ, 576P @50HZ, 720P @50/60HZ 1080i @50/60HZ 1080p60 @30/50/60 Hz
  • Integrated L-Series Battery Plates
  • Type-C USB 5V power supply
  • Metal Housing with 1/4"-20 Mounting Point
  • Small and lightweight

What's in the box:

  • Transmitter
  • Receiver
  • USB-C Cable
  • Pan/Tilt 1/4-20 Mount
  • Case
