Used Venus Laowa Ranger 16-30mm T2.9 Cine Lens for PL Mount and Canon EF

SKU: VDLVE1630PLE

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Laowa Ranger Specifications

  • Focal length

    16-30mm

  • Aperture range

    T2.9-22

  • Format

    Full Frame

  • Image circle diameter

    Dia. 43.2mm

  • Angle of view

    107 Degree -71.6 Degree

  • Zoom Ratio

    1.875x

  • Lens structure

    18 elements in 12 groups

  • Aperture blades

    11

  • Aperture throw

    42 Degree

  • Zoom throw

    100 Degree

  • Focus throw

    100 Degree

  • Min. focusing distance

    13" (33cm)

  • Focus indicator

    Metric & Imperial (Dual Scale)

  • In-focus driving mode

    Manual (MF)

  • Max. Magnification

    0.145x

  • Gear mod

    0.8 Mod

  • Dimensions for Filter Thread

    Dia. 77mm

  • Front Diameter

    Dia. 80mm

  • Mounts

    ARRI PL (Optional: Canon EF, Canon RF. Sony E, Nikon Z, L Mount)

  • Dimensions

    Dia. 3.15 x 4.22" (80 x 107.4mm)

  • Weight

    Approx 28.18 oz (799g)

About Venus Laowa Ranger 16-30mm T2.9 Cine Lens for PL Mount and Canon EF

When Laowa introduced the Ranger Compact Cine Zoom Series, it marked a significant advancement in full-frame cinematography. The Laowa Ranger 16-30mm T2.9 Cine Lens, compatible with both PL Mount and Canon EF, is meticulously designed to cater to the needs of solo filmmakers and production teams alike. This lens offers a remarkable blend of features and performance, enabling creators to craft cinematic stories with ease.

Weighing approximately 799g (1.76 lbs), the Laowa Ranger lens is exceptionally lightweight, making it ideal for capturing stunning visuals across a wide range of scenarios. Its versatile zoom range, with a total zoom ratio exceeding 6.4x, allows filmmakers to effortlessly capture breathtaking shots from expansive landscapes to intricate close-ups. The lens's parfocal design ensures that subjects remain in sharp focus even when zooming, while the minimal focus breathing provides smooth focus transitions.

One of the standout features of the Ranger lens is its extremely close focusing distance of 0.33m (1'1"), which allows for detailed and intimate close-up shots. The professional cine housing includes a built-in back focus adjustment system, eliminating the need for cumbersome shimming processes and ensuring a seamless shooting experience. The lens also features 0.8 MOD gears for both the aperture and focus rings, unified gear positions for quick focal length changes, and dual scale design with both imperial and metric measurements.

The Laowa Ranger 16-30mm lens supports full-frame and Super 35 cameras with its 43.2mm image circle. Its constant T2.9 aperture throughout the zoom range allows filmmakers to shoot in low-light conditions without the need for exposure adjustments. The lens's 100-degree focus and zoom throws provide precise control over framing and focus, while the 80mm outer diameter and 77mm filter thread accommodate standard matte boxes and filters.

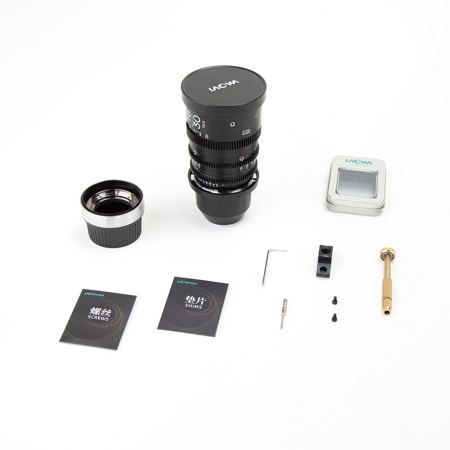

Each lens comes equipped with a native PL mount and includes an interchangeable EF bayonet. For those using mirrorless cameras, additional interchangeable mounts are available, including Canon RF, Sony E, Nikon Z, and L mount options. The Laowa Ranger 16-30mm T2.9 Cine Lens is the ultimate tool for filmmakers seeking to capture stunning cinematic masterpieces with ease and precision.

Venus Laowa Ranger 16-30mm T2.9 Cine Lens for PL Mount and Canon EF Features

  • Full Frame Coverage
  • Light & Compact
  • Versatile Zoom Range
  • Constant T2.9
  • Excellent Parfocal Design
  • Extremely Close Focusing Distance
  • Invisible Focus Breathing
  • Professional Cine Housing

Key Features

  • Capture stunning visuals with the Laowa 16-30mm cine lens' wide angle zoom.
  • Achieve smooth, cinematic focus pulls using the precise manual focus control.
  • Enjoy exceptional image quality across the full-frame sensor coverage.
  • Get creative with the versatile T2.9 aperture, ideal for various lighting.
  • Durable build quality ensures reliability for professional video production.
  • Adaptable Canon EF mount offers compatibility with popular cinema cameras.
