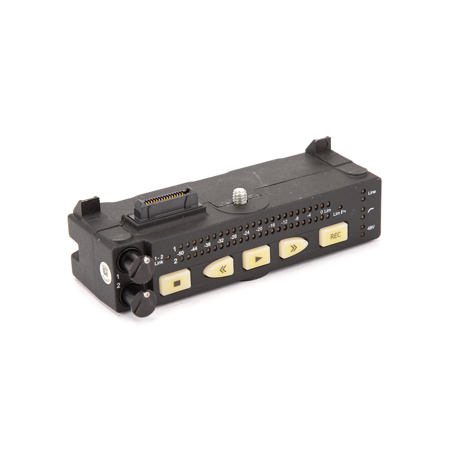

Used Video Devices PIX-LR Audio Interface for PIX-E Series Monitors, 2x XLR In/Out, Mic Preamps and LED Metering

SKU: US1965390 MFR: PIX-LR
Earn VIP Reward Points

What`s in the box:

  • Sound Devices PIX-LR Audio Interface for PIX-E Series Monitors
See more

Key Features

  • Two XLR-3F active-balanced, mic/line-level inputs
  • Two 3-pin XLR-3M balanced analog outputs
  • Two dedicated rotary gain controls
  • Large, backlit transport controls for record and playback
  • Bright 23-segment LED metering with limiter indication
  • Sound Devices mic preamps with high pass filters and limiters
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$26.99

2 Year

$43.99

3 Year

$61.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2016-04-18T12:25:04

Rated 5 out of 5

A Must-Have if You Own a Pix-E Recoder

The daylight-viewable audio monitors are worth the price of admission! Typical Video Devices superior build quality. If you own one of their recorders, you NEED this!

RUSSELL R.

Sound Devices PIX-LR Specifications

  • Power

    Powered by the monitor

  • Frequency Response

    10Hz - 20 kHz +0,-0.5 dB re 1kHz

  • THD+N

    0.05% max (20-20kHz filter), 0dBu in, gain +12dB

  • Max Gain (Mic Position)

    +72 dB (dBu in to -20dBFS)

  • Gain (Line Position)

    +45 dB (dBu in to -20dBFS)

  • Max Input Level (Mic Position)

    +8 dBu (gain at +12 dB)

  • Max Input Level (Line Position)

    +26 dBu (gain at +12 dB)

  • Equivalent Input Noise (Mic Position)

    -128 dBu (A-weighted)

  • Max Line Output Level

    +18 dBu (2k load)

  • Input Limiters

    40 dB range, 20:1 ratio, 1 mS attack, 200 mS release

  • Low Cut Filters

    Selectable frequency, 12 dB/oct

  • 48 V Phantom

    Full 10 mA each

  • XLR Wiring (in and out)

    Pin 2 = hot, pin 3 = cold, pin 1 = ground (To drive unbalanced source from output, only use pins 2 and 1; leave pin 3 disconnected)

  • XLR Protection (in and out)

    Protected against 48V phantom, shorts and fully RF-filtered

  • Dimensions (H x W x D)

    1.3 x 5.4 x 2.1" / 33.02 x 137.16 x 53.34mm

  • Weight

    8.0oz / 226.80g

About Video Devices PIX-LR Audio Interface for PIX-E Series Monitors, 2x XLR In/Out, Mic Preamps and LED Metering

FEATURED REVIEWS

A Must-Have if You Own a Pix-E Recoder

By RUSSELL R.

The daylight-viewable audio monitors are worth the price of admission! Typical Video Devices superior build quality. If you own one of their recorders, you NEED this!

The PIX-LR is an accessory that provides the PIX-E Series monitors with two XLR inputs, two XLR outputs, accurate LED metering and dedicated transport and gain controls. The mic preamps within the PIX-LR are some of the highest-quality preamps available and the same preamps for which Sound Devices, LLC is world-famous. These active-balanced preamps are sonically pure with extremely low selfnoise, high headroom and low distortion.

They also include excellent input limiters, which keep the input from overloading, even with unexpected loud noises or shouting right into the microphones. And they include full-spec 48V phantom for high-quality condenser mics and low-cut filters to cut wind noise and room rumble.

Video Devices PIX-LR Audio Interface for PIX-E Series Monitors, 2x XLR In/Out, Mic Preamps and LED Metering Features

  • The PIX-LR is an accessory that provides the PIX-E Series with two XLR inputs, two XLR outputs, accurate LED metering, and dedicated transport and gain controls
  • The mic preamps within the PIX-LR are some of the highest-quality preamps available, and the same preamps for which Sound Devices, LLC is worldfamous.

Warranty Information

This used item has a FREE 180-day warranty. See details.

Key Features

  • Two XLR-3F active-balanced, mic/line-level inputs
  • Two 3-pin XLR-3M balanced analog outputs
  • Two dedicated rotary gain controls
  • Large, backlit transport controls for record and playback
  • Bright 23-segment LED metering with limiter indication
  • Sound Devices mic preamps with high pass filters and limiters
