Used Viltrox DC-X2 6" Full HD Touchscreen On-Camera Monitor, Supports 4K HDMI

SKU: US2055213 MFR: DC-X2
$118.00
New: $238.00
Used Savings: $120 (50%)
Earn VIP Reward Points

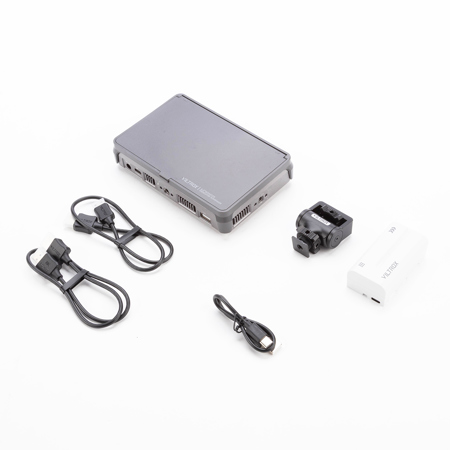

What`s in the box:

  • Viltrox DC-X2 6" Full HD Touchscreen On-Camera Monitor
  • Custom Ball Head
  • NP-F550 Battery
See more

Key Features

  • Experience crystal-clear visuals with the 6" Full HD (1920x1080) touchscreen monitor.
  • Achieve perfect focus and exposure with 2000 nits peak brightness for outdoor shooting.
  • Seamlessly connect to your camera with 4K HDMI input and output for versatile use.
  • Intuitive touchscreen controls allow for quick adjustments during fast-paced shoots.
  • Power your shoots longer with the included NP-F type battery, ensuring reliability.
  • Monitor your footage precisely with advanced LUT support and image control features.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Viltrox DC-X2 Specifications

Display

Display

Jump to...
  • Panel Type

    LCD

  • Display Size

    6.0" (15.2cm)

  • Native Resolution

    1920 x 1080 (Full HD)

  • Aspect Ratio

    16:9

  • Touchscreen

    Yes

  • Maximum Brightness

    2000 nits / cd/sq. m (Peak)

  • Contrast Ratio

    1000:1

  • Color Support

    16.7 Million Colors (8-Bit)

  • HDR Support

    No

  • Color Gamut

    100% Rec. 709

  • LUT Support

    Yes

  • Image Controls

    False Color, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Waveform

  • Refresh Rate

    60Hz

Inputs/Outputs

Jump to...
  • Video I/O

    1x HDMI 1.4 Input
    1x HDMI 1.4 Output

  • Embedded Audio

    HDMI

  • Audio I/O

    1x 1/8" (3.5mm) Headphone Output

  • Built-In Speaker

    No

  • Power I/O

    1x Barrel (12 VDC / 2 A) Input
    1x USB-C (5 VDC / 3 A) Input

  • Other I/O

    No

  • Media/Memory Card Slot

    Single Slot: SD (Unspecified Type) (LUT/Firmware Update Only)

Wireless

Jump to...
  • Wi-Fi

    No

  • Bluetooth

    No

  • Mobile App Compatible

    No

Format Support

Jump to...
  • Video Format

    HDMI:
    DCI 4K: 30/25/24
    UHD 4K: 30/25/24
    1080p

  • Input Power

    12 to 18 VDC at 2 A

  • Battery

    1x L-Series Mount on Fixed Plate

  • Power Consumption

    13.5 W

Mounting

Jump to...
  • Tripod/Accessory Mounting

    Bottom/Right: 1x 1/4"-20 Female

Environment

Jump to...
  • Operating Conditions

    32 to 149 Degree F (0 to 65 Degree C)

  • Storage Conditions

    32 to 167 Degree F (0 to 75 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, included

  • Battery Material

    Lithium ion

  • Battery Type

    NP-F

  • Battery Quantity

    1

General

Jump to...
  • Color

    Gray

  • Material

    Aluminum

  • Dimensions

    6.12 x 3.87 x 1.06" (15.54 x 9.84 x 2.68cm)

  • Weight

    11.4 oz (324.5g)

About Viltrox DC-X2 6" Full HD Touchscreen On-Camera Monitor, Supports 4K HDMI

Precision and Clarity for the Modern Filmmaker.

Vibrant Colors & Superior Performance
• Clear FHD 1080P Display
• Vibrant IPS Display for True Color
• 160 Degree Ultra-Wide Viewing Angle
• High Contrast, Rich Detail
• Professional Color Gamut Coverage
• Smooth Visuals with 60Hz Refresh Rate

User-Friendly Design
• Superior Brightness for Any Environment
• Touchscreen for Effortless Control
• Customizable shortcut keys

Intelligent Thermal Management

Efficient Cooling System
Full aluminum body has multiple cooling designs, a built-in cooling fan, and an intelligent temperature control system that adjusts the fan speed based on the body temperature.

HD Monitoring
• 4K 30Hz Signal Input and Loop Output
• Wide Device Compatibility

Support HDMI input/output interface
Widely compatible with mainstream movie cameras and video cameras on the market, ensuring seamless connection with various devices.

Comprehensive Monitoring Tools

Professional Assistance
• Comprehensive Monitoring Tools for Precise Control
• Capture Every Detail with Precision
• Built-in Professional Grade Color Calibration

Creative Flexibility
• 3D LUT Support for Real-time Color Grading
• Instantly Preview Different Color Styles
• Import Custom LUTs via USB

Built-in diverse LUT selection
• Supports more log monitoring and restoration, rich choices, and clear colors at a glance.
• Support LUT import and storage
• Supports reading and storing certain custom LUTs in a USB flash drive from the USB-A interface, freeing up creative choices.

Achieve Perfect Shoot Every Time
• Capture Key Points with Peak Focus
• Improve Overall Shooting Quality
• Enhance Image Sharpness

Optimize Exposure and Contrast
• Analyze Brightness Distribution
• Detect and Correct Overexposure
• Improve Image Detail

Aluminum Alloy Compact Body
• Lightweight and Sturdy Design
• Less than 350g Compact and Easy to Carry
• Perfect for On-the-Go Shooting
• Aluminum Alloy Excellence Shell

Multiple Power Supply Options
• NP-F Lithium Batteries, DC 12-18V, and Type-C 9V/3A Inputs
• Extended Battery Life for Long Shoots
• Stay Powered Up In Studio, on Location, or Outdoors

Quick-Release Sunhood
Features a detachable sunhood design for quick setup and storage. Effectively blocks light sources during outdoor shooting, ensuring optimal viewing and protecting the screen from scratches.

Viltrox DC-X2 6" Full HD Touchscreen On-Camera Monitor, Supports 4K HDMI Features

  • Ultra-Bright Display: 2000 Nits brightness ensures clear visibility in strong light
  • Full HD IPS Screen: 6" FHD 1080P IPS display offers true-to-life colors and wide viewing angles
  • Peak Focus Accuracy: Capture key points with precision for sharp, high-quality images
  • Comprehensive Monitoring Tools: Advanced tools like waveform and 3D LUT for precise control and real-time color grading
  • Customizable User Experience: Intuitive touchscreen and programmable quick keys for efficient operation
  • Connectivity and Durability: HDMI inputs/outputs for seamless integration with various devices; lightweight aluminum alloy body designed for reliability in all environments

Warranty Information

This used item has a FREE 180-day warranty. See details.

Key Features

  • Experience crystal-clear visuals with the 6" Full HD (1920x1080) touchscreen monitor.
  • Achieve perfect focus and exposure with 2000 nits peak brightness for outdoor shooting.
  • Seamlessly connect to your camera with 4K HDMI input and output for versatile use.
  • Intuitive touchscreen controls allow for quick adjustments during fast-paced shoots.
  • Power your shoots longer with the included NP-F type battery, ensuring reliability.
  • Monitor your footage precisely with advanced LUT support and image control features.
