VocoPro UHF-8800 8 Channel UHF Wireless Microphone Receiver Only - SKU#1375998 Specifications

  • No. of Channel

    8

  • Frequency Set

    Channel I: M, N, O, P, PII, Q, R, S, T

  • Receiver: Oscillation Mode

    Quartz controlled fixed frequency

  • Receiver: Frequency Stability

    10 PPM

  • Receiver: Sensitivity

    1.6uV at sinad = 12dB

  • Receiver: Deviation

    Max. Deviation Range: 50Hz

  • Receiver: Signal-to-Noise Ratio

    > 105dB

  • Receiver: THD

    < 0.5% at 1kHz

  • Receiver: Image Rejection

    85dB typical

  • Receiver: Spurious Rejection

    75dB typical

  • Receiver: Frequency Response

    40Hz-16kHz

  • Receiver: Squelch

    Dual-squelch circuit

  • Receiver: Max. Output Level

    Balance: 0-400mV, Unbalance: 0-200mV

  • Receiver: Power Supply

    External DC Power Supply, 1.2A, 12-18V DC

  • Transmitter Type

    Handheld

  • Transmitter: RF Output

    30mV

  • Transmitter: Spurious Emission

    < 40dB (with carrier)

  • Transmitter: Battery

    AA 1.5V x2

  • Transmitter: Battery life

    12 hours

  • Dimensions (W x H x D)

    Receiver: 19 x 3.5 x 8.7" (48.26 x 8.89 x 22.09cm)

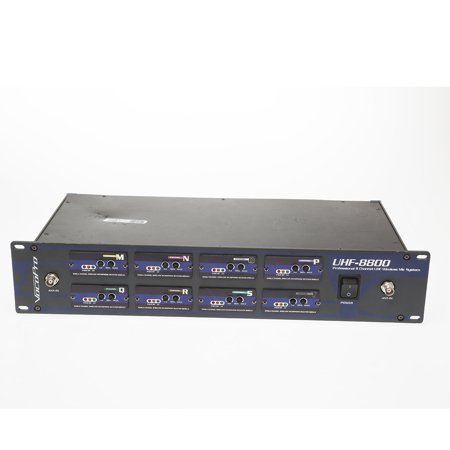

About VocoPro UHF-8800 8 Channel UHF Wireless Microphone Receiver Only - SKU#1375998

Building on VocoPro's proven UHF-5800 series, the VocoPro UHF-8800 8 Channel UHF Wireless Microphone System (Channel I: M, N, O, P, PII, Q, R, S, T) doubles that microphone capability with an astonishing 8 wireless microphone channels. While perfect for multi-microphone speaking engagements and public address, the UHF-8800's superior vocal reproduction still makes it a top choice for singers and DJs seeking the best sound for their shows. The UHF-8800 is the ultimate in versatility and flexibility and is ready-to-go for any occasion.

VocoPro UHF-8800 8 Channel UHF Wireless Microphone Receiver Only - SKU#1375998 Features

  • Complies with New FCC Frequency Rules
  • UHF Band Operation
  • 8 XLR Microphone Outputs
  • 2 x 1/4" Mixed Mic Outputs (1: Ch M-PII, 2: Ch Q-T)
  • Individual Volume Controls for Precise Vocal Balancing
  • Individual Squelch Control on Each Mic Channel
  • 8 Independent Field-Replaceable Modules
  • Rugged 2RU Metal Receiver Chassis

What's in the box:

  • 6x Antenna
  • AC Power Supply
  • Item Note: 8x Handheld Microphones are not included
