Used Westcott Flex Cine 1x1' DMX RGBW Mat 1-Light Set, Includes Flex Cine Wireless DMX Dimmer & Flex Cine Wireless AC Adapter

SKU: US2022402 MFR: 7708
Earn VIP Reward Points

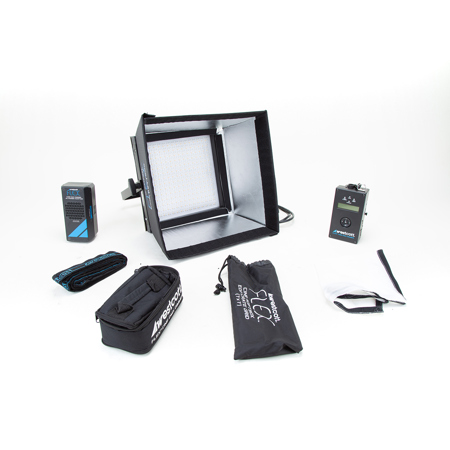

What`s in the box:

  • Flex Cine 1x1' DMX RGBW Mat
  • DMX Dimmer
  • Flex Cine Dimmer Lanyard
See more

Key Features

  • Includes Flex 1x1' LED mat, Wireless DMX Dimmer, AC power supply, and heavy-duty 16' power cable
  • Pliable and compact light design is ideal for practical lighting
  • Adjustable full visible color spectrum lighting with up to 98 CRI (99 TLCI)
  • LED mat corners are equipped with powerful magnets and grommets
  • Mat backed by an unmatched Lifetime Limited Warranty
  • Wireless DMX dimmer provides DMX over Art-Net for advanced control and effects via Luminair app
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Westcott Flex Cine DMX Mat Set Specifications

Flex Cine RGBW Mat

Flex Cine RGBW Mat

Jump to...
  • Beam Angle

    140 to 360 Degree

  • Color Accuracy Standard

    CRI 97
    TLCI 98.6

  • Cooling System

    Passive

  • Dimming

    Yes

  • Photometrics

    167.2 fc / 1800 lux at 3.28' (1m)

  • Power Input Connector

    9-PIN TE

  • Remote Control Type

    Wired Remote

  • DC Input Power

    24 VDC

  • Power Source

    AC Adapter, External Battery

  • Max Power Consumption

    55 W

  • IP Rating

    IP64

  • Operating Temperature

    140 Degree F (60 Degree C)

  • Rectangular Panel Size

    1 x 1' (0.30 x 0.30m)

  • Dimensions

    Mat: 1.0 x 1.0 x 0.5' (30.5 x 30.5 x 15.2cm)

  • Weight

    Fixture: 1.26 lb (0.57kg)

Flex Cine Wireless DMX Dimmer

Jump to...
  • DMX

    1x 5-Pin XLRMale
    1x 5-Pin XLRFemale

  • Total Outlets

    1x USB Type-A

  • Wireless Support

    ArtNet

  • Dimming

    1 to 100%

  • Output Voltage

    26 VDC

  • Battery Mount

    V-Mount

  • Mounting

    3/8-16 Female
    1/4-20 Female

  • Dimensions

    3.25 x 3.75 x 6.75" (8.26 x 9.53 x 17.15cm)

  • Weight

    1.9 lb (0.9 kg)

AC Adapter

Jump to...
  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • Output Voltage

    24 VDC

  • Power Draw

    240.00 W

  • Battery Bay

    V-Mount

  • Operating Temperature

    140 Degree F (60 Degree C)

  • Certifications

    UL

  • Dimensions

    7 x 3.5 x 3" (18 x 9 x 7.5cm)

  • Weight

    1.5 lb (0.7kg)

About Westcott Flex Cine 1x1' DMX RGBW Mat 1-Light Set, Includes Flex Cine Wireless DMX Dimmer & Flex Cine Wireless AC Adapter

Harness Any Color to Tell Your Stories
With adjustable full visible color spectrum output, Flex Cine RGBW Mats allow you to take full control of color on set and on location without sacrificing power or portability. At 1/3" thin and weighing less than 3 lbs., Flex Cine LED mats are ideal for lighting in compact spaces, concealing on set, travel, and storage.

Versatility Unparalleled
With a groundbreaking form factor, Flex Cine LED mats have an adjustable light spread up to 360-degrees. These pliable mats also designed with built-in mounting options including hook-and-loop edging, powerful magnetic corners that support the weight of the mat, and metal grommets for hanging.

Powerful. Precise. Pristine.
These versatile lights produce brighter output than comparable flexible LED mats available on the market. They offer an outstanding quality of light with impressive color accurate output up to 98 CRI and 99 TLCI. Flex Cine RGBW LED mats provide flicker-free performance up to 960 frames per second.

Built for the Demanding Filmmaker
These are the only flexible LED mats backed by a lifetime limited warranty. They're ultra durable and brilliantly designed with a water-resistant IP 64 rating up to the connector. Flex Cine LED mats connect to a Flex Cine Dimmer via heavy-duty cables with TE-9 pin connectors.

These cables are equipped with Mat Sensing Technology that allow Flex Cine Dimmers to automatically detect which Flex LED mat is connected to customize available controls and specify the exact voltage needed to operate the light.

Unlimited Mounting Options
Pliable Flex Cine LED mats are designed with built-in mounting options including hook-and-loop edging, powerful magnetic corners that support the weight of the mat, and metal grommets for hanging. Light modifiers for Flex Cine LED mats are available separately and in cost-effective Flex Cine Kits.

Choose Between Wireless or Wired DMX
The industry's first dimmer for flexible LEDs that's designed with DMX512 Input/Output 5-Pin Male/Female XLR and wireless DMX capability for controlling one or multiple dimmers via WiFi Host/Client Mode. When operating DMX over Art-Net, the dimmer is compatible with mobile apps including Luminair that offer advanced lighting effects and controls.

Dimmer Control Modes and Presets
When utilizing the dimmer's on-board controls, users have access to a dynamic range of tools that control color and intensity, including 120+ pre-loaded color gel presets with daylight or tungsten backing, source-matching presets, user-defined presets, CCT controls, and more.

Cutting-Edge Technology
This dimmer is equipped with Hybrid Pulse Width Modulation that allows Flex LED mats to be dimmed down to 1% while maintaining a flicker-free output up to 960 frames per second. Mat Sensing Technology detects which Flex LED mat is connected, specifies the required voltage, and customizes the available dimmer controls. A built-in USB port allows for future firmware updates.

One AC Power Source for All Flex Mats
No more hunting for the right power brick. This V-mount AC adapter is designed to power any size Flex LED mat that's paired with a Flex Cine Wireless DMX Dimmer. Offering up to 240 watts of power, this AC unit is designed to work with the dimmer's sensing technology to adjust wattage based upon the mat connected.

Cool and Quiet Operation
Created in partnership with the experts at Ratpac/Innovative Dimmers, this AC adapter is designed with a durable and heat-resistant polycarbonate housing for prolonged use on set. This housing holds a low-decibel cooling fan for optimal heat dispersion. A heavy-duty 16' power cable connects the dimmer to an AC outlet. It is removable for streamlined travel and storage.

Use & Care Instructions
Wipe dimmer clean with dry cloth. Wipe flex cine mats with a damp cloth

Westcott Flex Cine 1x1' DMX RGBW Mat 1-Light Set, Includes Flex Cine Wireless DMX Dimmer & Flex Cine Wireless AC Adapter Features

  • Includes Flex 1x1' LED mat, Wireless DMX Dimmer, AC power supply, and heavy-duty 16' power cable
  • Pliable and compact light design is ideal for practical lighting
  • Adjustable full visible color spectrum lighting with up to 98 CRI (99 TLCI)
  • Powerful output up to 1800 lux at 1 meter Water-resistant 1/3" thin IP64 mat can fit into tight spaces and is ideal for travel
  • LED mat corners are equipped with powerful magnets and grommets
  • Mat backed by an unmatched Lifetime Limited Warranty
  • Wireless DMX dimmer provides DMX over Art-Net for advanced control and effects via Luminair app
  • Pre-loaded with source-matching and 120+ color gel presets
  • Compatible with most 14.4V to 26V V-Mount batteries
