Wohler VMQ-4 Specifications

  • Signal Inputs Accepted

    Analog

  • Monitoring Outputs Available

    Speakers, Headphone

  • Signal Inputs:

    4x Balanced Analog Inputs on mini-Phoenix

  • Other Functions

    XLR Inputs available as an optional extra in place of Phoenix inputs

  • Audio: Aural Sound Outputs

    Headphone, Mutes Speakers; 4x Discrete Speakers

  • Audio: Electrical Distortion

    < 0.20% at any level below limit threshold

  • Input impedance

    >100kOhms balanced
    >50kOhms unbalanced

  • full output (volume full on)

    0 dBv balanced
    -12dBv unbalanced

  • Audio: Frequency Response (1/6 octave)

    300Hz - 16kHz (+ or -9dB)

  • Audio: Peak Acoustic Output at 2 feet

    94dB SPL

  • Audio: Hum and Noise

    Better than -70dB below full output

  • Power requirements

    power to the unit is 100 to 240VAC +/- 10%, 50/60Hz.

  • Rack Height

    1RU

  • Power Consumption

    20W Avg/30W Max

  • Dimensions

    1.75 x 19 x 9.7" / 4.45 x 48.26 x 24.64cm

  • Weight

    7.0lbs / 3.18kg

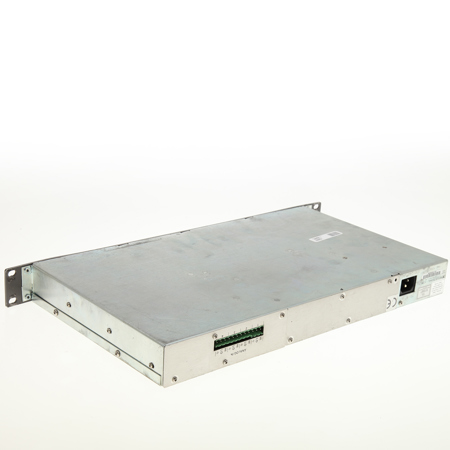

About Wohler VMQ-4 4 Channel Analog Audio Monitor - SKU#1344494

Explore the superior capabilities of the VMQ-4 4 Channel Analog Audio Monitor from Wohler Technologies, a trusted name in professional audio equipment. This high-quality, durable audio monitor provides voice quality confidence monitoring across four analog channels simultaneously, making it an ideal choice for broadcast, post-production, and live sound applications.

Designed with a compact 1RU rack height, the VMQ-4 is a space-saving solution that doesn't compromise on performance. Each channel boasts its own dedicated power amplifier and speaker, ensuring that audio sources remain completely separate from input to output. This unique design feature enhances source distinction when listening within ultra near field distances of 1 to 3 feet, providing a superior audio monitoring experience compared to designs that mix four inputs into a single output.

The VMQ-4 is equipped with intuitive features designed to streamline your audio monitoring process. Each channel features an LED indicator that illuminates when a signal is present at the input, allowing operators to quickly identify active channels for swift volume adjustments. Additionally, separate mute buttons and corresponding LED indicators allow for quick muting of one or more channels.

For added convenience, the VMQ-4 includes a stereo headphone jack with Channels 1 and 2 summed on the left side and Channels 3 and 4 on the right side. This sturdy, reliable audio monitor is completely magnetically shielded for interference-free operation, even when placed adjacent to CRT video monitors. Its lighter weight and shallower-depth chassis make it an excellent choice for portable and mobile vehicle applications. Experience the professional-grade performance and reliability of the VMQ-4 4 Channel Analog Audio Monitor.

Wohler VMQ-4 4 Channel Analog Audio Monitor - SKU#1344494 Features

  • Mute button and LED for each channel
  • Space saving 1RU
  • Dedicated Input for each output channel
  • Powerful 94dB SPL at 2 feet (0.6m)
  • 4 balanced analog inputs
  • Signal present LED on each channel input
  • Headphone jack mutes speakers
  • Blowout-proof speakers
  • Monitoring of 4 discrete audio channels in 1 unit
  • Thorough magnetic shielding for placement next to video monitors
  • Lightweight and shallow-depth chassis
  • Quick and simple installation
