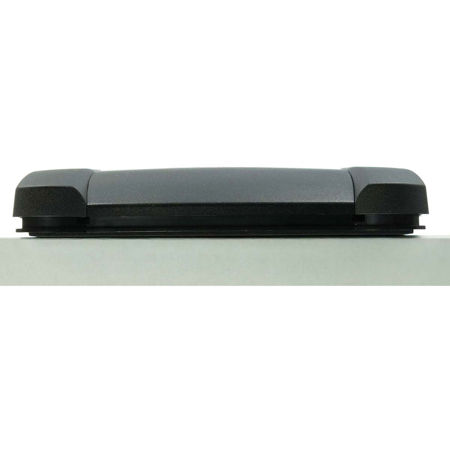

X-Keys XK-3 USB Mouse Click Foot Pedal

Picture does not represent the actual item
See what's in the box

See all X-Keys items

Used X-Keys XK-3 USB Mouse Click Foot Pedal

SKU: US1789775
Be the first to review this item

This item is no longer available.

Buy it New

X-Keys XK-3 USB Mouse Click Foot Pedal
X-Keys XK-3 USB Mouse Click Foot Pedal
$149.95
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

X-Keys Foot Pedal Specifications

  • Operating System

    Use: Any OS via USB HID
    Programming: Windows XP through 10, Mac OS X 10.4 through 10.10

  • Free Programming Software

    Windows: MacroWorks 3.1
    Mac: ControllerMate for X-keys

  • Free Software Development Kits

    Windows (C++, C#, VB.NET)
    OS X SDK
    Linux (C++)
    Android (Java)
    Raw HID (any language/OS)

  • Emulation Modes

    HID keyboard, HID mouse, HID game controller, HID multimedia

  • Switch Types

    Microswitch with audible click, guaranteed for over 1 million operations

  • Number of Pedals

    3 programmable pedals

  • Actuation Force

    Approx. 34 - 90 oz (1 - 2.5kg) depending on distance from hinge

  • Connector

    Wired USB standard "A" plug

  • Cord Length

    118" (3m)

  • USB Type

    USB 1.1 compatible through 3.0 Type-c with adapter

  • Power Source

    USB port, nominal voltage = 5 VDC

  • Power Consumption

    18 mA at 5 VDC

  • Temperature Range

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Memory Capacity

    Approximately 1,000 keystrokes or commands in onboard memory

  • Memory Type

    EEPROM, non-volatile memory (X-keys retains memory for over 200 years)

  • Environmental Rating

    IP 40, typical indoor office environment

  • Certifications

    FCC class B, CE, RoHS, WEEE compliant

  • Dimensions

    Approx. 8.1 x 5.5 x 1.6" (20.57 x 13.97 x 4.06cm)

  • Weight

    2.5 lbs (1.13kg)

About X-Keys XK-3 USB Mouse Click Foot Pedal

Three pedals preprogrammed for mouse button actions. The X-keys Mouse Click Foot Pedal offers all the same capabilities as our standard X-keys USB foot pedal. The user can rest a foot on the main pedal without activating it and "click" with just slight additional pressure from the toe or ankle. The outside pedals rear provide instant additional functions easily reached to the left or right of the main pedal. While pre-programmed for Double Click and Right Click, they can be reprogrammed to provide any mouse, keyboard, game controller or media command. Use our free software for Windows, Mac or Android to unlock all programming features.

X-Keys XK-3 USB Mouse Click Foot Pedal Features

  • Great for mouse click and drag and drop operations
  • Alleviates RSI issues (replaces finger actions)
  • USB plug & play (no software, apps or drivers required)

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Keys XK-3 USB Mouse Click Foot Pedal
  • Manual
  • Item Note: Missing Software CD
