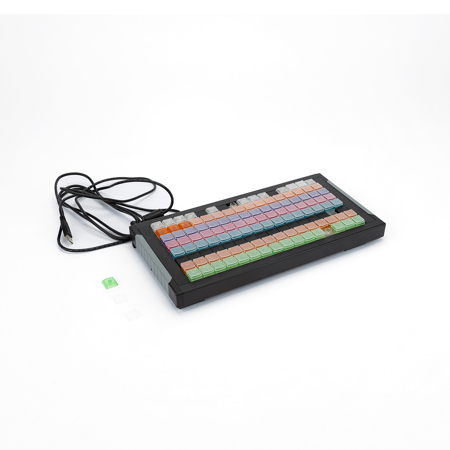

Used XKE-128 128-Keys USB KVM Keyboard, Blue and Red Backlighting

SKU: US2029655 MFR: XK-1391-UKVM128-SO
$389.00
New: $575.95
Used Savings: $186.95 (32%)
OR
Earn VIP Reward Points

What`s in the box:

  • Keys XKE-128 128-Keys USB KVM Keyboard
See more

Key Features

  • Enhance workflow with this X-Keys USB KVM keyboard, featuring 128 programmable keys for custom commands.
  • Customize your setup with vibrant blue and red backlighting on each key of this USB KVM keyboard.
  • Enjoy durable performance with keys guaranteed for over 1 million operations on this X-Keys keyboard.
  • Simplify complex tasks using MacroWorks 3.1 software to program this X-Keys KVM keyboard on Windows.
  • Connect seamlessly with USB 1.1 to 3.0 compatibility, making this KVM keyboard a versatile addition.
  • Optimize your workspace using this X-Keys KVM keyboard's relegendable keycaps for easy identification.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

X-Keys XKE-128 Specifications

  • Operating System

    Use: Any OS via USB HID/Programming: Windows XP through 10, Mac OS X 10.4 through 10.10

  • Free Programming Software

    Windows: MacroWorks 3.1

  • Emulation Modes

    HID Boot Keyboard

  • Switch Types

    Full-travel rubber dome, carbon on gold contacts, guaranteed for over 1 million operations

  • Number of Keys

    128 single keys + programming button

  • Actuation Force

    Approx. 2.5 oz (72g) break-over, approx. 1.5 oz (42g) hold

  • Keycaps

    0.625" (16mm) sq.; relegendable with Cherry MX compatible stem

  • Key Spacing

    0.75" O.C.

  • Optional Keys

    2X1, 1X2, 2X2

  • Backlighting

    128 blue and 128 red LEDs, individually addressable

  • Connector

    Wired USB standard "A" plug

  • Cord Length

    3m (9.84')

  • USB Type

    USB 1.1 compatible through 3.0 Type-c with adapter

  • Power Source

    USB port, nominal voltage = 5 VDC

  • Current Draw

    No backlight: 37 mA, Blue backlight full: 176 mA, Red backlight full: 2657 mA, All backlights: 358 mA

  • Temperature Range

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Memory Capacity

    Approximately 21,000 keystrokes or commands in onboard memory

  • Memory Type

    EEPROM, non-volatile memory (X-keys retains memory for over 200 years)

  • Environmental Rating

    IP 40, typical indoor office environment

  • Certifications

    FCC class B, CE, RoHS, WEEE compliant

  • Dimensions

    14 x 7.3 x 1.8" (35.56 x 18.54 x 4.57cm)

  • Weight

    4.7 lbs (2.13kg)

About XKE-128 128-Keys USB KVM Keyboard, Blue and Red Backlighting

Explore the world of high-tech computing with the XKE-128 128-Keys USB KVM Keyboard. This stylish and durable keyboard is optimized for controlling a KVM (Keyboard Video Mouse) switch, offering a seamless way to manage multiple computers from a single workstation.

The XKE-128 is equipped with 128 programmable keys, each capable of sending any key combination or string of keystrokes. This feature significantly reduces operator error and training time, as any function an operator can perform on a keyboard can be replicated and assigned to a clearly labeled key. This user-friendly design maximizes efficiency and minimizes the learning curve for new users.

This version of our X-keys XKE-128 is specifically configured to work flawlessly with KVM switches. It emulates a standard USB keyboard, eliminating compatibility issues with most KVM input limitations. The keyboard's vibrant blue and red backlighting not only adds a colorful touch but also enhances visibility in low-light conditions.

The XKE-128 KVM comes fully populated with 128 relegendable keys, making it perfect for testing multiple layout options. You can further refine the layout with optional large keys and key blockers. This keyboard is a testament to our commitment to providing high-quality, reliable products that cater to the needs of our customers.

Our free Windows-based programming utility simplifies the process of assigning keystrokes, key combinations, and strings to dedicated keys. When it's time to reproduce your finished prototype, we offer a range of options from printed key legends to acrylic printed ABS keys to double-shot molded key caps.

At X-keys, we specialize in custom control solutions, offering custom brand labeling, assembly, programming, and testing to deliver a plug-and-play solution. Whether you need 10 units or thousands for large-scale deployment, the XKE-128 128-Keys USB KVM Keyboard is a reliable and stylish choice for your computing needs.

XKE-128 128-Keys USB KVM Keyboard, Blue and Red Backlighting Features

  • Specifically designed to work with KVM switches
  • Easy to program and duplicate
  • 8x16 grid for keys and blockers
  • Heavy-duty extruded aluminum case with powder coated finish
  • Addressable blue and red backlighting for each key
  • USB connection to computer
  • Emulates HID keyboard, mouse, or game controller (joystick)
  • A wide range of key caps and blockers available

Warranty Information

This used item has a FREE 90-day warranty. See details.
