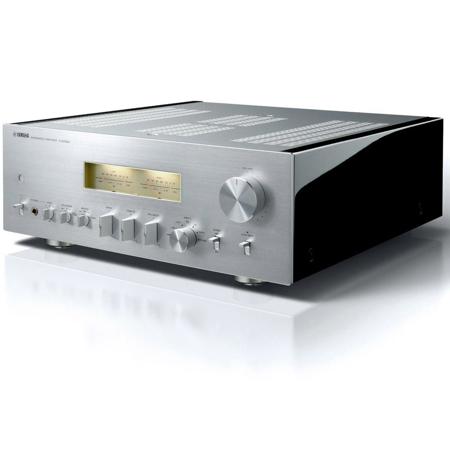

Used Yamaha A-S2200 2-Channel Integrated Amplifier, Silver

SKU: US1711801

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2024-12-07T19:00:00

Rated 5 out of 5

Outstanding Yamaha Quality

Exactly what I wanted - simple and elegant with a focus on quality. Add aesthetic appeal and it's what I'd expect of Yamaha. Best integrated amp I've ever owned and I'm 100% happy. The only thing I would do if I had my way would be to add a tape monitor function OR a way to use the pre out and main in to more properly integrate an equalizer into the system. Still, 5 stars.

Phillip

2022-01-10T08:11:32

Rated 5 out of 5

Solid build and sound!

Really solid build amp, so heavy that hard for one man to lift it... sound amazing!

MINGBO S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Yamaha A-S2200 Specifications

  • Color

    Silver

  • Rated output power 2-channel driven

    8Ohm: 90 W + 90 W
    4Ohm: 150 W + 150 W (20 Hz to 20 kHz, 0.07% THD)

  • Dynamic power

    8Ohm: 105 W + 105 W
    6Ohm: 135 W + 135 W
    4Ohm: 190 W + 190 W
    2Ohm: 220 W + 220 W

  • IEC output power

    8Ohm: 95 W + 95 W (1 kHz, 0.07% THD)

  • Maximum effective output power

    8Ohm: 120 W + 120 W
    4Ohm: 190 W + 190 W

  • Power bandwidth 2-channel driven

    8Ohm: 10 Hz to 50 kHz (0.1% THD, 50 W)

  • Damping factor

    8Ohm: 250 or higher(1 kHz)

  • Input sensitivity

    PHONO (MC): 150 micro Vrms / 50Ohm
    PHONO (MM): 3.5 mVrms / 47 kOhm
    CD (or similar): 200 mVrms / 47 kOhm
    MAIN IN: 1 Vrms / 47 kOhm
    BAL 1/BAL: 200 mVrms / 100 kOhm

  • Maximum input

    PHONO (MC): 2.0 mVrms
    PHONO (MM): 50 mVrms
    CD (or similar): 2.80 Vrms
    BAL: BYPASS: 2.80 Vrms
    ATT.: 5.60 Vrms (-6 dB)

  • Rated output voltage

    LINE 2 OUT: 200 mVrms / 1.5 kOhm
    PRE OUT: 1 Vrms / 1.5 kOhm

  • Headphone jack rated output power

    50 mW + 50 mW (1 kHz, 32 Ohm, 0.2% THD)

  • Frequency response

    5 Hz to 100 kHz: +0 / -3 dB
    20 Hz to 20 kHz: +0 / -0.3 dB

  • Deviations from RIAA equalizer

    PHONO (MM/MC): +/-0.5 dB

  • Total harmonic distortion plus noise

    2-channel driven: PHONO (MC) - LINE 2 OUT, 1.2 Vrms: 0.02%
    PHONO (MM) - LINE 2 OUT, 1.2 Vrms: 0.005%
    CD (or similar)/BAL 1/BAL 2 - SPEAKERS OUT, 50 W/8Ohm: 0.035%

    Signal-to-noise ratioPHONO (MC): 90 dB
    PHONO (MM): 96 dB
    CD (or similar): 110 dB
    BAL 1/BAL 2: 114 dB

  • Residual noise

    33 micro Vrms

  • Channel separation

    PHONO (MC): 66/77 dB or higher
    PHONO (MM): 90/77 dB or higher
    CD (or similar)/BAL: 74/54 dB or higher

  • Tone control characteristics

    BASS: Boost/cut: 50 Hz / +/-9 dB
    Turnover frequency: 350 Hz

    TREBLE: Boost/cut: 20 kHz / +/-9 dB
    Turnover frequency: 3.5 kHz

  • Power supply

    AC 120 V, 60 Hz

  • Power consumption

    350 W

  • Standby power consumption

    OFF mode: 0.1 W
    Standby mode: 0.2 W

  • Dimensions (W x H x D)

    17.13 x 6.13 x 18.25" (43.49 x 15.57 x 46.35cm)

  • Weight

    50 lbs (22.6kg)

About Yamaha A-S2200 2-Channel Integrated Amplifier - Silver SKU#1711801

If you're in search of a high-quality, powerful, and aesthetically pleasing audio experience, the A-S2200 2-Channel Integrated Amplifier in Silver is the perfect choice. This amplifier, a proud member of the Yamaha family, is designed to deliver an authentic, robust, yet elegantly refined Hi-Fi sound. It's not just an electronic device, but a luxuriously beautiful instrument that offers absolute musicality.

The A-S2200 is built with an intimate understanding of music creation, a knowledge deeply embedded in Yamaha's DNA. This understanding, honed through years of collaboration with artists, allows the A-S2200 to convey the emotional depth and nuance of any musical piece, bringing the artist's vision directly to the listener.

At the heart of this amplifier is a Toroidal power transformer, known for its superior performance in Hi-Fi components. This transformer ensures the A-S2200 maintains energy, delivering the emotional resonance of the music without compromise.

The A-S2200 also features gorgeous level meters, a tribute to the golden era of Hi-Fi. These meters, with their softly illuminated LEDs, visually present the dynamics and pulse of the music, adding a warm, nostalgic touch to your audio experience.

The design of the A-S2200 emphasizes openness, transforming music listening from a passive activity to an active experience. Thick wires for ground connection contribute to a low impedance amplifier design, creating a wide and open sound stage. This design allows the components to fade into the background, leaving only the artist's performance in focus.

The A-S2200 also boasts original speaker terminals, cut directly from pure brass for a luxurious touch. These terminals allow for easy hand-tightening, ensuring a secure connection for optimal sound quality.

The amplifier's Mechanical Ground Concept maximizes rigidity and reduces unwanted vibration, delivering expressive and rhythmic bass. Further rigidity is achieved by bolting the large power transformer, block capacitors, and heat sink directly to the chassis. The amplifier's feet, welded directly to the main chassis, provide additional reinforcement for absolute rigidity.

Completing the A-S2200's design are heavy-duty chrome-plated brass feet, adding to the overall rigidity and enhancing the amplifier's sleek, silver aesthetic. Experience the rhythm, groove, and emotional depth of your favorite music as the artist intended with the A-S2200 2-Channel Integrated Amplifier.

Yamaha A-S2200 2-Channel Integrated Amplifier - Silver SKU#1711801 Features

  • Fully balanced circuit design from input to speaker out
  • Large toroidal power transformer with enormous energy delivering an authentic Hi-Fi sound
  • Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era
  • Thick wires for ground connection contribute to low impedance design for a wide and open sound stage
  • Mechanical ground concept maximizes rigidity for expressive and rhythmic bass

What's in the box:

  • S2200 2-Channel Integrated Amplifier (Silver)
  • Remote Control
  • 2x Batteries
  • Power Cable
  • Owner's Manual
  • Safety Brochure
  • Original Box
