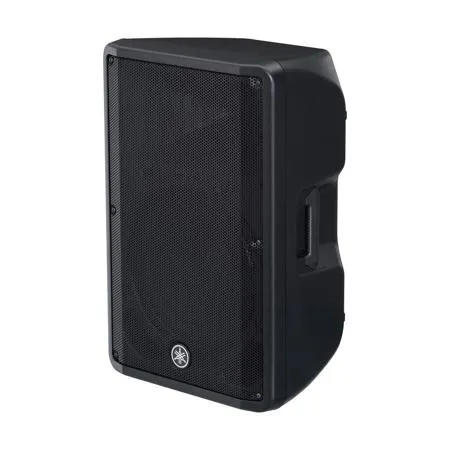

Used Yamaha DBR15 15" 2-Way Bass-Reflex Bi-Amplified Powered Loudspeaker, 50Hz - 20kHz, 1000W Peak Power, Single

SKU: US2002062 MFR: DBR15
Earn VIP Reward Points

What`s in the box:

  • Yamaha DBR15 15 " 2-Way Bass-Reflex Bi-Amplified Powered Loudspeaker -original box
See more

Key Features

  • Experience powerful, crystal-clear audio with the Yamaha DBR15 PA speaker for any event.
  • The DBR15's 1000W power output ensures your live sound is heard loud and clear, every time.
  • Achieve optimal sound with FIR-X tuning, delivering linear phase for precise audio clarity.
  • Versatile inputs on this Yamaha PA speaker support mics, instruments, & RCA devices.
  • Durable & portable, the DBR15 active speaker is perfect for bands, DJs, and presentations.
  • Enjoy consistent sound with a wide 90° x 60° coverage angle, ensuring everyone hears clearly.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Yamaha DBR15 Specifications

  • Speaker type

    2-way, Bi-amp powered speaker, Bass-reflex type

  • Frequency range (-10dB)

    55Hz - 20kHz

  • Coverage Angle

    H90 deg. x V60 deg. constant directivity horn

  • Crossover Type

    FIR-X tuning (Linear phase FIR filter)

  • Crossover Frequency

    2.1kHz

  • Measured Max. SPL (peak) IEC noise at 1m

    129dB SPL

  • Transducer: LF

    Diameter: 10" cone
    Voice Coil: 2"
    Magnet: Ferrite

  • Transducer: HF

    Diaphragm: 1"
    Type: 1" throat compression driver
    Magnet: Ferrite

  • Material

    Plastic

  • Finish

    Black

  • Floor Monitor Angle

    50 deg.

  • Handles

    Top

  • Pole socket

    35mm (Bottom)

  • Rigging Points

    2x Bottom (Fit for M8 x 15mm eyebolts)

  • Amplifier: Type

    Class-D

  • Amplifier: Power Rating

    Dynamic:700 W (LF: 500W, HF: 200W)
    Continuous:325 W (LF: 260W, HF: 65W)

  • Amplifier: Cooling

    Fan cooling, 4 speeds

  • Amplifier: HPF/LPF

    OFF, 100, 120Hz 24dB/oct HPF

  • Amplifier: DSP preset

    D-Contour: FOH/Main, Monitor, OFF

  • Amplifier: Protection

    Speaker: Clip limiting, Integral Power Protection, DC-fault
    Amplifier: Thermal, Output over current
    Power Supply: Thermal, Output over voltage, Output over current

  • Amplifier: Connectors

    Input1: Combo
    Input2: Combo + RCA-pin x2 (Unbalanced)
    Output: XLR3-32 (CH1 Parallel Through or CH1+CH2 Mix)

  • Amplifier: Input Impedance

    Input1 (XLR, TRS Phone): 3 kOhms
    Input2 (XLR, TRS Phone, RCA Pin): 10 kOhms

  • Amplifier:I/P Sensitivity (LEVEL:Max.)

    Input1: LINE: 0 dBu, MIC: -32 dBu
    Input2: 0 dBu

  • Amplifier:I/P Sensitivity (LEVEL:Center)

    Input1: LINE: +10 dBu, MIC: -22 dBu
    Input2: +10 dBu

  • Amplifier: Maximum Input Level

    Input1: LINE: +24 dBu, MIC: -8 dBu
    Input2: +24 dBu

  • Amplifier: Controls

    2x Level, Line/Mic, HPF, D-Contour, Thru/Mix, Power

  • Amplifier: Idle Power Consumption

    18W

  • Amplifier: 1/8 Power Consumption

    60W

  • Amplifier: Power Requirements

    100V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz

  • Dimensions (W x H x D)

    17.9 x 27.6 x 14.9" / 45.47 x 70.10 x 37.85cm (with rubber feet)

  • Weight

    42.6lbs / 19.32kg

About Yamaha DBR15 15" 2-Way Bass-Reflex Bi-Amplified Powered Loudspeaker, 50Hz - 20kHz, 1000W Peak Power, Single

Become the maestro of live sound with the Yamaha DBR15 15" 2-Way Bass-Reflex Bi-Amplified Powered Loudspeaker, a pinnacle of audio engineering designed to elevate your live performances. This robust and powerful loudspeaker delivers an expansive frequency range of 50Hz - 20kHz, ensuring every note is heard in crystal-clear detail. With a formidable 1000W peak power output, the DBR15 effortlessly achieves a maximum SPL of 132dB, providing ample volume without sacrificing sound quality.

Crafted for the discerning audiophile, the DBR15 features state-of-the-art Yamaha DSP, amplifier, and speaker technologies, derived from the acclaimed professional DSR and DXR Series. This technological synergy guarantees high-resolution sound across all output levels, making it a perfect choice for concerts, festivals, and events where sound clarity is paramount.

The custom-designed transducer is the heart of the DBR15's exceptional audio performance. The high-power output woofers produce deep, impactful bass with minimal distortion, while the 1.4" precision compression driver ensures the mid-range and high frequencies are rendered with pinpoint accuracy.

Durability meets portability in the DBR15's rugged construction. The lightweight cabinet is not only easy to transport but also built to withstand the rigors of the road. The sleek steel grill enhances durability, safeguarding the internal components, while ergonomic handles simplify transportation and setup.

For artists and sound engineers who require versatility, the DBR15's smart enclosure design doubles as an optimized floor monitor. The 50-degree wedge angle is perfect for on-stage monitoring, and the symmetrical shape allows for mirror-mode configuration, providing a balanced stereo sound field.

The onboard 2-channel mixer adds to the DBR15's versatility, with CH1 featuring a combo jack for both XLR and TRS Phone inputs, and CH2 offering additional XLR/TRS Phone and RCA pin jack inputs. This allows for seamless integration of microphones, instruments, and stereo sources, with the ability to mix signals or pass them through individually.

Installation applications are a breeze with the DBR15, thanks to the integrated M8 rigging threads. This feature enables secure rigging with optional speaker brackets or standardized eye-bolts, making it ideal for permanent setups.

In summary, the Yamaha DBR15 15" 2-Way Bass-Reflex Bi-Amplified Powered Loudspeaker is a testament to powerful, high-quality, and versatile sound reproduction. Whether you're amplifying a live band, DJing a party, or emceeing an event, the DBR15 is engineered to take your sonic experience to unprecedented heights.

Yamaha DBR15 15" 2-Way Bass-Reflex Bi-Amplified Powered Loudspeaker, 50Hz - 20kHz, 1000W Peak Power, Single Features

  • Yamaha DBR15 15" 2-Way Bass-Reflex Bi-Amplified Powered Loudspeaker for high-quality sound reproduction
  • Wide frequency range of 50Hz - 20kHz and 1000W peak power for robust and clear audio performance
  • State-of-the-art Yamaha DSP, amplifier, and speaker technologies derived from professional DSR and DXR Series
  • Lightweight, durable cabinet with ergonomic handles for easy transportation and setup
  • Integrated 2-channel mixer with XLR, TRS Phone, and RCA pin jack inputs for versatile connectivity
  • M8 rigging threads for secure installation with optional speaker brackets or standardized eye-bolts

Warranty Information

This used item has a FREE 1-year warranty. See details.
