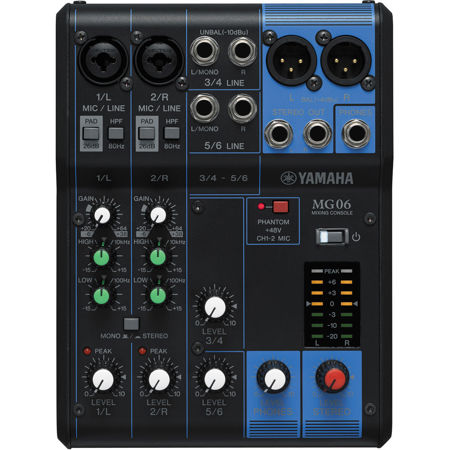

Used Yamaha MG06 6-Input Stereo Mixer, 20Hz-20kHz Frequency Response, 2x Mic/Line Combo Inputs, 4x 1/4" Line Inputs, +48V Phantom Power

SKU: US1782347

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Yamaha MG06 Specifications

  • Phantom Power

    +48 V switchable, channels 1, 2

  • Input Channels

    2x mono [mic/line]
    2x stereo [line]

  • Output Channels

    2x stereo out
    1x headphone

  • Bus

    1x stereo

  • Pad

    26 dB (mono channels)

  • HPF

    80 Hz, 12 dB/oct (mono channels)

  • Equalizer

    EQ high (mono channels) gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
    EQ low (mono channels) gain: +15 dB/-15 dB, Frequency: 100 Hz shelving

  • LED

    LED turns on when post EQ signal reaches 3 dB below clipping

  • Level Metering

    2 x 7-segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]

  • Total Harmonic Distortion

    0.01% at +8 dBu (20 Hz to 20 kHz), GAIN knob: min, 0.003% at +18 dBu (1 kHz), GAIN knob: min

  • Frequency Response

    +0.5 dB/-0.5 dB (20 Hz to 20 kHz), refer to the nominal output level at 1 kHz, GAIN knob: min

  • Equivalent Input Noise

    -128 dBu (mono input channel, Rs: 150 Ohms, GAIN knob: max)

  • Residual Output Noise

    -102 dBu (STEREO OUT, STEREO LEVEL knob: min)

  • Crosstalk

    -88 dB

  • Power Requirement

    PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, cable length = 1.5 m), 100-240 V, 50/60 Hz or equivalent recommended by Yamaha

  • Power Consumption

    12W

  • Operating Temperature

    0 to +40deg.C

  • Dimensions (W x H x D)

    149 x 62 x 202mm (5.86 x 2.44 x 7.95")

  • Weight

    0.90kg (1.98lbs)

About Yamaha MG06 6-Input Stereo Mixer, 20Hz-20kHz Frequency Response, 2x Mic/Line Combo Inputs, 4x 1/4" Line Inputs, +48V Phantom Power

Because the Yamaha MG06 6-Input Stereo Mixer is designed with professional-grade features, it is an ideal choice for small performances, lectures, and recording applications. This high-quality, compact mixer is equipped with two mic/line combo inputs, each featuring D-PRE mic preamps, and four 1/4" line inputs, all with stereo level controls.

The D-PRE mic preamps, renowned for their inverted Darlington circuit, offer a rich, full-bodied sound that professionals seek. They also come with switchable 48V phantom power, making this mixer compatible with both dynamic and condenser microphones. Each mic/line combo input is further enhanced with a 2-band EQ and a high pass filter, allowing for precise control over your sound.

For recording loud sound sources like guitar amplifiers, the MG06 mixer includes 26dB attenuation switches on each mic preamp. This feature ensures optimal audio quality, even in challenging sound environments.

The MG06 mixer's versatility is evident in its multiple output options. It features stereo XLR outs for seamless connection to your PA system or monitor speakers. Additionally, it has a 1/4" headphone output with level control for personal monitoring, ensuring you can fine-tune your mix in real-time. The TRS 1/4" stereo outs are perfect for sending your mix to powered speakers, amplifiers, or digital recording devices.

With a frequency response of 20Hz-20kHz, the Yamaha MG06 mixer can handle a wide range of audio signals, delivering clear, high-quality mixes every time. This durable and advanced audio mixer is designed to meet the demands of a variety of audio mixing tasks, making it a valuable addition to any audio setup.

Yamaha MG06 6-Input Stereo Mixer, 20Hz-20kHz Frequency Response, 2x Mic/Line Combo Inputs, 4x 1/4" Line Inputs, +48V Phantom Power Features

  • 6-Channel Mixing Console
  • Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
  • 1 Stereo Bus
  • "D-PRE" mic preamps with an inverted Darlington circuit
  • XLR balanced outputs
  • PAD switch on mono inputs
  • +48V phantom power
  • Metal chassis

What's in the box:

  • Yamaha MG06 6-Input Stereo Mixer
  • AC Adaptor
  • Owner's Manual
