2021-05-03T15:00:37

Rated 5 out of 5

Love this drone

This is a great drone. Bought it over some others because its usually windy where I am. This drone does great in the wind and the pictures and video are stunning.

MICHAEL S.

2019-01-04T09:07:01

Rated 4 out of 5

The professional looking drone

I owned other small drones. I really impressed when I saw my Typhoon H+ launching. I looks more professional drone than the other drones I have.

THENHAN N.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Yuneec Typhoon H Plus Specifications

Performance

Performance

Jump to...
  • Maximum Horizontal Speed

    30 mph / 48.3 km/h

  • Maximum Ascent Speed

    9 mph / 14.5 km/h

  • Maximum Descent Speed

    5 mph / 8.1 km/h

  • Maximum Wind Resistance

    35 mph / 56.3 km/h

  • Flight Ceiling

    16,404' / 4999 m

  • Maximum Flight Time

    30 Minutes

  • Maximum Tilt Angle

    35deg.

Flight Control System

Jump to...
  • Model

    ST16S Ground Station

  • GNSS Support

    GPS

Vision System

Jump to...
  • Vision System

    Downward, Forward, Backward, Left, Right

  • Maximum Altitude

    1640' (499 m)

  • Obstacle Sensory Range

    1.6 to 30.0' / 0.5 to 9.1 m

  • Forward Field of View

    +/-91deg. (Horizontal)

  • Operating Frequency

    2.4 GHz
    5.8 GHz

  • Maximum Operating Distance

    1 mi / 1.61 km

  • Connectivity

    1 x HDMI
    1 x Micro-USB

  • Battery Type

    1 x Built-In

  • Battery Chemistry

    Lithium-Ion Polymer (LiPo)

  • Battery Capacity

    8700 mAh

  • Battery Configuration

    1 S / 3.6 V

  • Built-In Display Size

    7"

  • Operating Temperature

    32 to 104deg.F (0 to 40deg.C)

  • Sensor

    1" CMOS

  • Effective Pixels

    20 MP

  • Lens Field of View

    Horizontal: 91deg.

  • Aperture

    f/2.8

  • Photo ISO Range

    100 - 6400 (Auto)

  • Video ISO Range

    100 - 6400 (Auto)

  • Electronic Shutter Speed

    4 - 1/8000 Second

  • Photo Resolution

    16:9: 5472 x 3080
    4:3: 4864 x 3648
    3:2: 5472 x 3648

  • Photo Format

    JPEG, DNG

  • Video Format

    4096 x 2160p at 24/25/30/48/50/60 fps (MP4 via H.264)
    3840 x 2160p at 24/25/30/48/50/60 fps (100 Mb/s MP4 via H.264)
    2720 x 1530p at 24/25/30/48/50/60 fps (MP4 via H.264)
    1920 x 1080p at 24/25/30/48/50/60/120 fps (MP4 via H.264)
    1280 x 720 at 24/25/30/48/50/60/120 fps (MP4 via H.264)
    4096 x 2160p at 24/25/30 fps (MP4 via H.265)
    3840 x 2160p at 24/25/30 fps (100 Mb/s MP4 via H.265)
    2720 x 1530p at 24/25/30/48/50/60 fps (MP4 via H.265)

  • Video Format (Cont.)


    1920 x 1080p at 24/25/30/48/50/60/120 fps (MP4 via H.265)
    1280 x 720p at 24/25/30/48/50/60/120 fps (MP4 via H.265)

  • Recording Media

    microSD (Up to 128 GB)

  • Photo Modes

    Burst Shooting, Interval, Single Shot

  • Number of Axes

    3 (Pitch, Roll, Yaw)

  • Control Range

    Pitch: -90 to 15deg.

  • Angular Speed

    Pitch: 30deg./s

Flight Battery

Jump to...
  • Battery Chemistry

    Lithium-Ion Polymer (LiPo)

  • Capacity

    5250 mAh

  • Battery Configuration

    4 S / 15.2 V

Charger

Jump to...
  • Charger

    SC4000-4H

  • Type

    Brushless

  • Velocity Constant

    730 Kv

General

Jump to...
  • Number of Rotors

    6

  • Operating Temperature

    32 to 104deg.F (0 to 40deg.C)

  • Weight

    3.62 lbs (1.64kg)
    4.39 lbs (1.99kg) (Including Camera)
    Maximum Takeoff Weight: 4.6 lbs (2.09kg)
    Flight Battery: 580g (20.46 oz)

Related Articles & Videos

The Best Drone for Photography: An Updated List

The Best Drone for Photography: An Updated List

Drones have been the hottest trend in photography over the past few years, tRead more

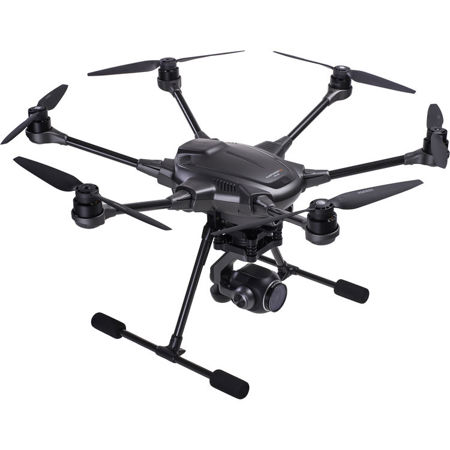

About Yuneec Typhoon H Plus Hexacopter with 1" Sensor 4K Camera, Intel RealSense Technology, ST16S Smart Controller Included

You can experience the pinnacle of drone technology with the Typhoon H Plus Hexacopter from Yuneec, a perfect blend of stability and superior image quality. This advanced hexacopter is equipped with a high-tech 3-axis gimbal-mounted camera, featuring a C23 1" sensor capable of capturing 20MP still photos and Ultra HD 4K video at 60 fps. The 3-axis gimbal offers continuous rotation for 360-degree image capture, providing you with unlimited possibilities for aerial photography and videography.

The Typhoon H Plus is built on a large, six-rotor airframe designed to deliver stable footage, even in winds exceeding 35 mph. This state-of-the-art drone showcases a 40% reduction in noise compared to its predecessor, ensuring a quieter operation. Its robust design allows it to withstand the loss of a rotor, continuing to fly and land safely using just five rotors.

The Typhoon H Plus integrates Intel's RealSense Technology for object detection and collision avoidance, ensuring the safety of your drone while in flight. This innovative technology uses an Intel RealSense R200 camera and an Intel Atom processor to create a real-time 3D model of the drone's surroundings. This feature not only helps to avoid obstacles but also navigates around them, providing you with increased filmmaking freedom.

The drone's Follow Me mode works seamlessly with Intel RealSense, keeping the main camera focused on the action while the R200 avoids any hazards along the way. Full control of the Typhoon H Plus is at your fingertips with the included ST16S Ground Station remote controller. This Android-powered transmitter/receiver features a large, 7" built-in touchscreen, capable of activating intelligent flight modes or full manual operation. With the Typhoon H Plus Hexacopter, you can capture stunning aerial footage with ease and precision.

What's in the box:

  • Yuneec Typhoon H Plus Hexacopter with 1" Sensor 4K Camera
  • ST16S Ground Station Flight Controller
  • Travel Backpack
  • 2x Flight Battery
  • 10x Propellers
  • Charging Accessories
