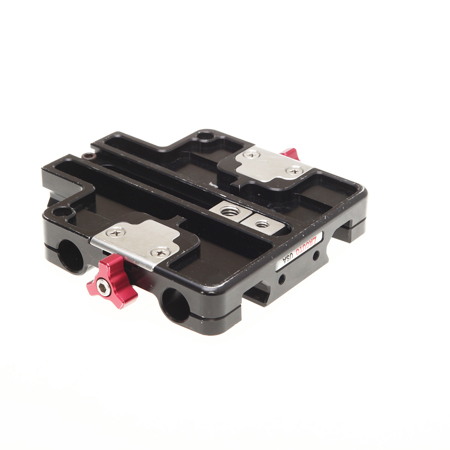

Zacuto Z-CSB Studio Baseplate - SKU#1227926

Picture does not represent the actual item
See what's in the box

See all Zacuto items

Used Zacuto Z-CSB Studio Baseplate

SKU: US1227926
(1)

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Zacuto ACT Baseplate for Mirrorless and DSLR Cameras, Compatible with GH5M2
undefined undefined: Picture 1 regular
Shape 15mm Studio Sliding Baseplate for Sony Venice
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2015-09-23T21:00:00

Rated 4 out of 5

A Qualified Success

I bought the Zacuto Studio Baseplate to add support for my long telephoto lenses on my Canon C100 Mk II while mounted on a tripod. The idea was to not put a large strain on the C100's lens mount. it worked really well with my Canon 35-350 f3.5-5.6 L lens. This is an older L lens that I have had for years. It's great when you don't want to be changing lenses all the time, and being a full frame lens, is very good on the S35 sensor of the C100 on the normal to telephoto end. However, the Sigma 150-500 lens that I also use is significantly larger. The foot on the tripod collar is mostly flush with the bottom of the rails, so there is no way to support the lens with just the studio base plate. I'm looking at the Zacuto Gorilla Baseplate for C300 to add enough height to be able to support the really big Sigma telephone zooms. That's another $160 that I wasn't planning on spending. There is no question that the Zacuto tripod support items are top notch and well thought out, and the prices reflect this. If you care about your equipment and your results and you need the best, then I fully recommend the Zacuto line. If you are a little strapped for cash, or are an occasional shooter, maybe something a little less pricey will suffice.

WK A.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Zacuto Z-CSB Studio Baseplate Specifications

  • Compatibility

    Canon EOS C300 Cameras

  • Rod Holes

    15mm / 0.59 inches

  • Rod Length

    12" (30.48 cm)

About Zacuto Z-CSB Studio Baseplate - SKU#1227926

The Zacuto C100/C300/C500 Studio Baseplate with 12" (30.48 cm) Rods is designed specifically for the Canon EOS C100/C300/C500 camera. It is exceptionally flat which helps to keep the center of gravity quite low. This baseplate features a pair of 0.59" (15 mm) rods that are 12" (304.8 mm) long running through the length of the baseplate. You can quickly reposition the rods for various lens lengths by loosening the 2 levers, one on each side of the baseplate.

On each side of the baseplate there is also a set of 0.59" (15 mm) lightweight holes. The side holes take 0.59" (15 mm) female rods that are locked with Allen screws. This gives you a virtually unlimited amount of mounting options. With these side holes, you have the option of turning the baseplate into a cage configuration. You can even mount a Zwiss Plate with professional batteries on the side of the baseplate when shooting on a tripod for better balance. When not using a cage configuration, the side holes can be used for an EVF, Zacuto articulating arms, rods and more. The baseplate also has standard 1/4" 20 and 3/8" 16 holes on the bottom for mounting the rig onto a tripod.

The C300 Studio Baseplate attaches to the camera with 3/8" 16 and 1/4" 20 screws. This Baseplate is perfect for a rig like the C100/C300/C500 Stinger or an advanced tripod rig with rods extending at the back for external power.

Zacuto Z-CSB Studio Baseplate - SKU#1227926 Features

  • Designed for the Canon EOS C300 Camera
  • Exceptionally flat, helps to keep the center of gravity low
  • Features a pair of 0.59" (15 mm) rods that are 12" (304.8 mm) long
  • Allows you to quickly reposition the rods for various lens lengths by loosening the 2 levers, one on each side of the baseplate
  • Features 0.59" (15 mm) lightweight holes on each side of the baseplate
  • The side holes take 0.59" (15 mm) female rods that are locked with an Allen screw that gives you a virtually unlimited amount of mounting options
  • The side holes can be used for an EVF, Zacuto articulating arms and rods
  • Features standard 1/4" 20 and 3/8" 16 holes on the bottom for mounting the rig onto a tripod
  • Attaches to the camera with 3/8" 16 and 1/4" 20 screws
  • Perfect for a rig like the C300 Stinger or an advanced tripod rig with rods extending at the back for external power

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Item Note: Missing 2x 12" Rods; 1/4" 20 Screw; 3/8" 16 Screw
